MPCF-200-B2S Corrosion-resistant PP centrifugal fan for laboratory ventilation system

Supplier: Hangzhou Meansoon Ventilation Co., Ltd.
Region: Zhejiang, China
Contact: Mr Frankie Yang
Price: $209.40 / 1 - 9 pieces
$188.50 / 10 - 49 pieces
$169.64 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

After-sales service provided:	online support	application:	chemical plant
type:	radial fan	Package preview:
Warranty:	1 year	Blade material:	plastic
Certification:	CE and RoHS	Customization support:	OEM production
Origin:	Zhejiang, China	Current type:	air conditioner
Voltage:	220V/1Ph/50Hz	brand:	Ming Shun
model:	MPCF-200-B2S	Impeller material:	Polypropylene (PP)
Applicable industries:	Manufacturing plants, food and beverage plants, energy and mining	Single package size:	48X48X55 cm
Packaging Details:	Multipack cartons, bulk cartons and pallets.	Install:	duct fan
product name:	Chemical Resistant Exhaust Fans	Volute:	Polyethylene (PE)
Sales unit:	single product	Gross weight per piece:	15.000 kg
Protect:	IP54

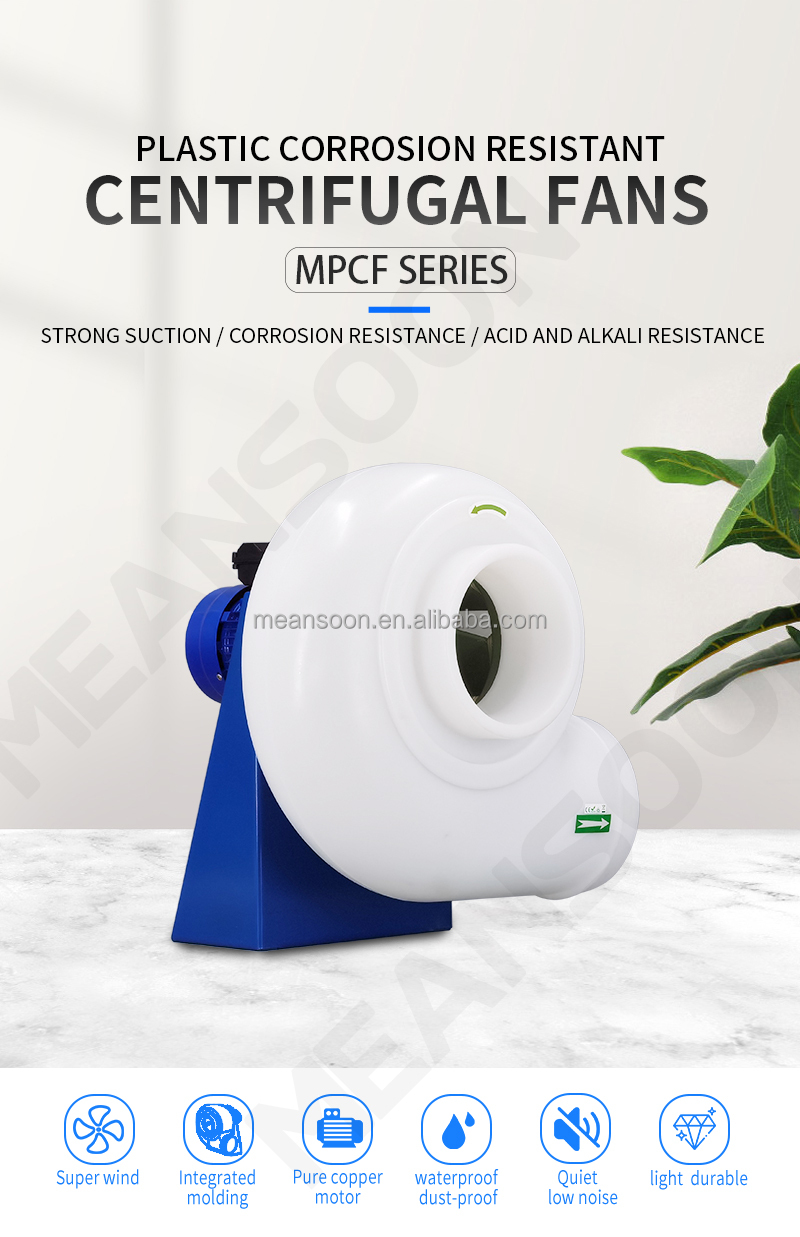

Product name: Plastic corrosion-resistant PP centrifugal fan for laboratory ventilation system
Model: MPCF-200-B2S

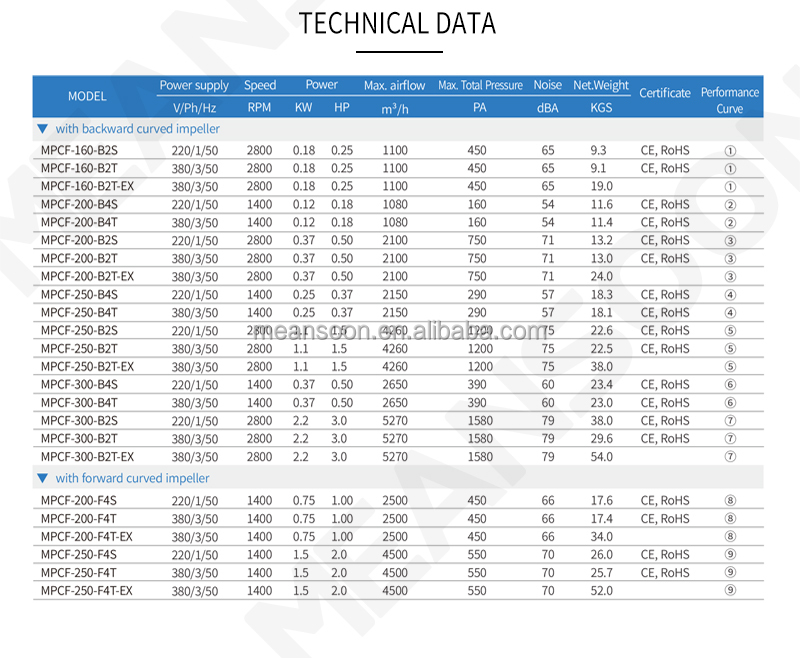

Specification

1	Material	PP impeller+PE volute+100% all copper motor
2	color	White spiral shell + blue motor + blue bracket
3	Inlet diameter	Φ196
4	outlet diameter	Φ196
5	strength	370W
6	power supply	220~230V/50~60Hz available

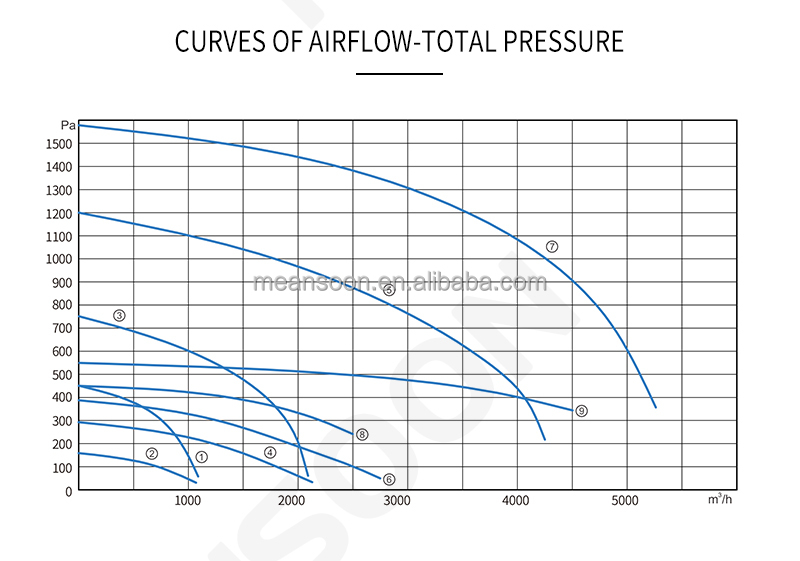

7	Maximum air volume	2100 CMH (cubic meters per hour)
8	greatest pressure	750 Pa
9	net weight	13.2 kg
10	gross weight	15.0KGS
11	packaging details	1 piece in 1 box, box size: 484855CM
12	MOQ	1 item
13	logo	Please send me your design and we can print it on the fan
14	Accept OEM	Yes
15	sampling time	Normal 5 days / Special 15 days
16	Certification Availability	CCC, CE, ROHS, ISO9001
17	production capacity	1000 per month
18	payment item	100% payment <5000USD before manufacture 30% as deposit, 70% before shipment>$5000

general instructions
Plastic Corrosion Resistant PP Centrifugal Fan For Laboratory Ventilation SystemSpecifically designed for conveying corrosive vapors and fumes, also featuring high humidity and a maximum temperature of 60ºC.
For applications where corrosive fumes and gases are extracted:
Sulfuric acid, sulfurous acid, nitric acid, nitrous acid, hydrofluoric acid, boric acid, hydrocyanic acid, hydrochloric acid. Ammonia, Soda, Ethanol, Potassium Hydroxide, Methanol, Propane, Formaldehyde, Benzene, Formaldehyde.
application
MPCF seriesPlastic Corrosion Resistant PP Centrifugal Fan For Laboratory Ventilation SystemThe backward curved impeller has the good characteristics of low noise and high efficiency, and is often used for exhaust ventilation in laboratories, fume hoods, fume hoods, chemical warehouses, electroplating factories, pharmaceutical factories, mold factories, electronic workshops, metallurgy and other industries.

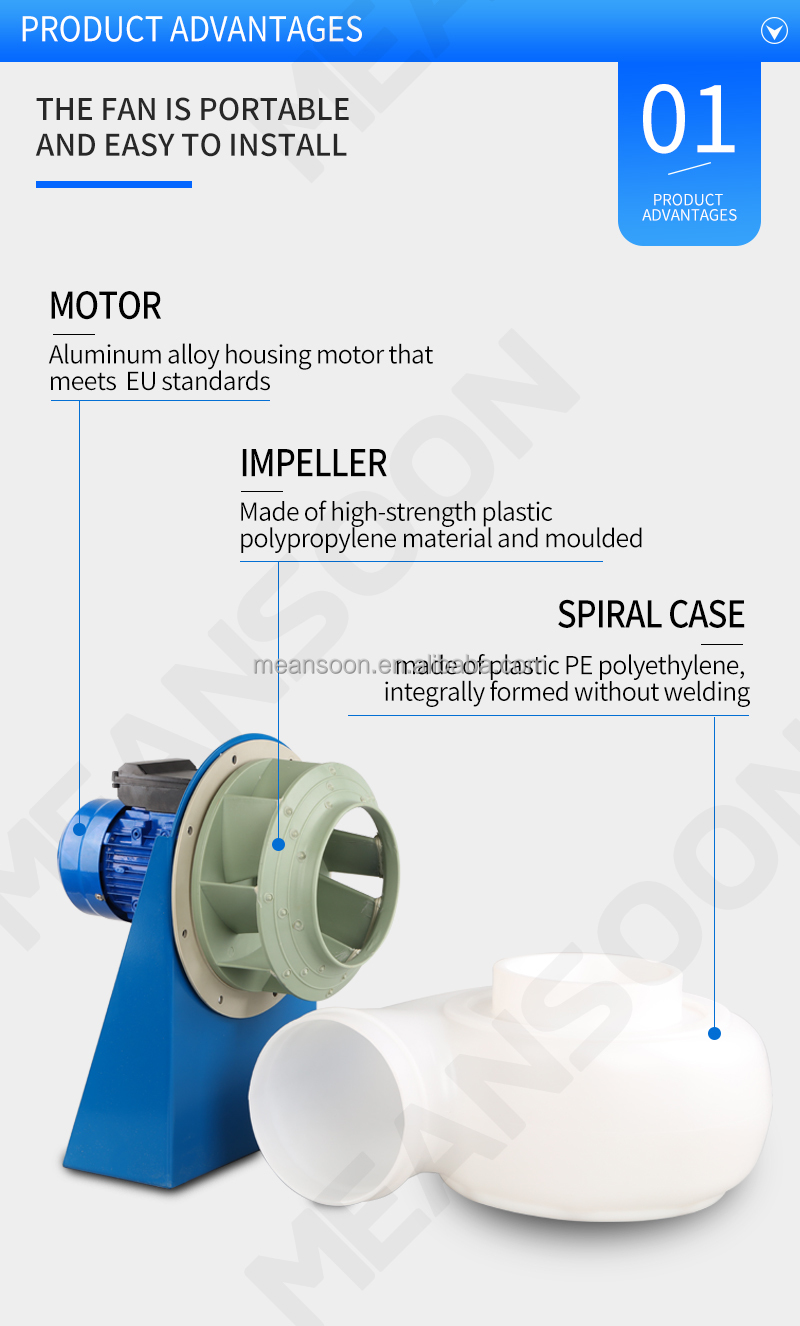

spiral case
The volute is made of polyethylene (PE) plastic. Reversible and rotatable to any of 8 standard discharge positions in 45° increments. All fans come with 304 stainless steel mounting bolts and nuts.
The inlet/outlet is round, standard size: 160, 200, 250, 300, suitable for plastic air duct connection.
impeller
The impeller is made of polypropylene (PP) plastic, with rear curved blades, high efficiency and dynamic balance
Balance standard G2,5 according to DIN ISO 1940.

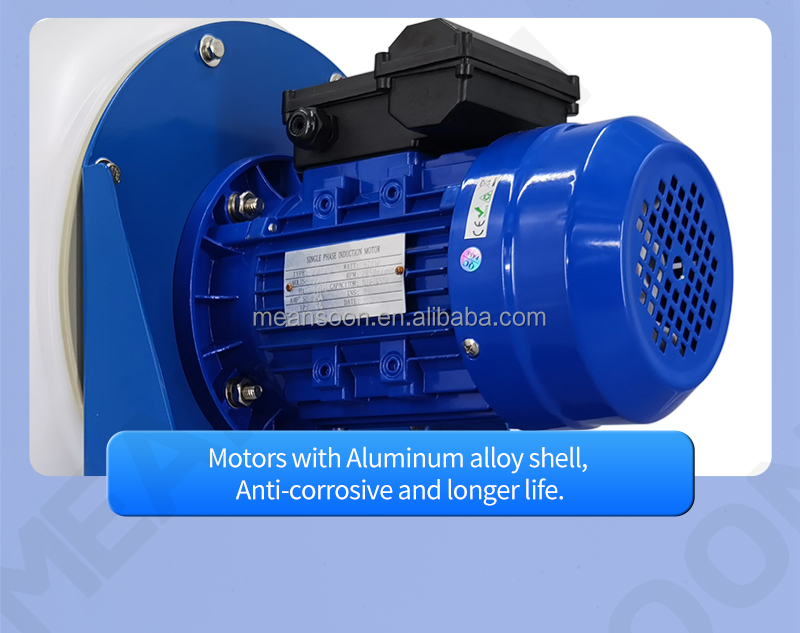

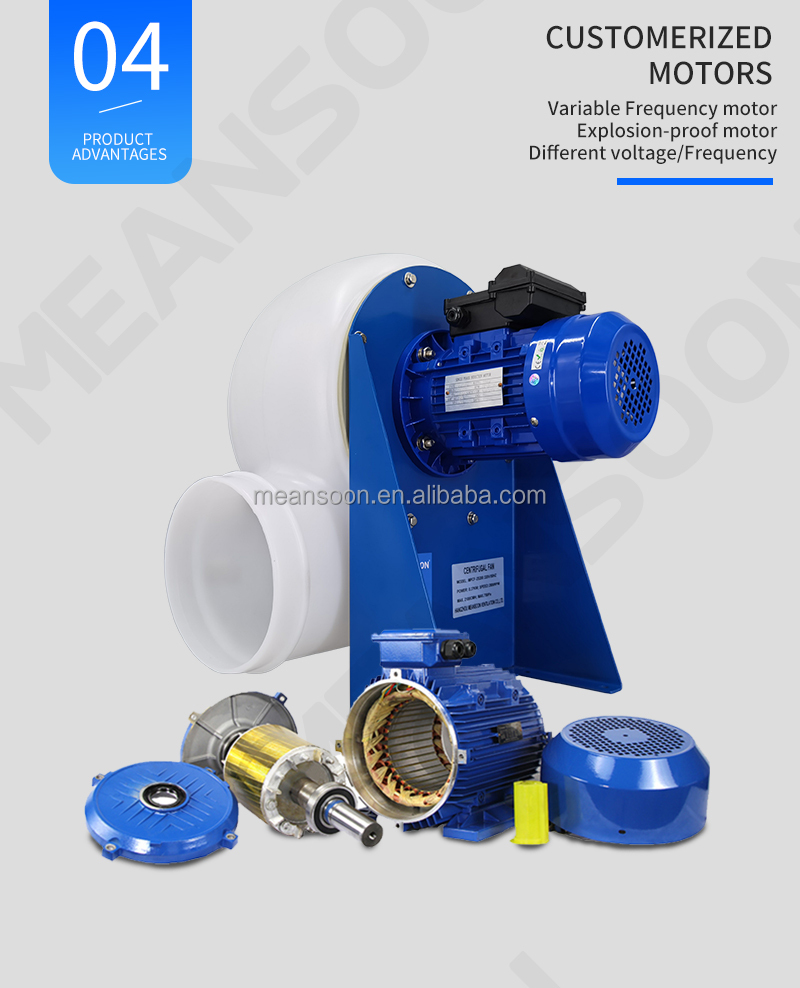

motor

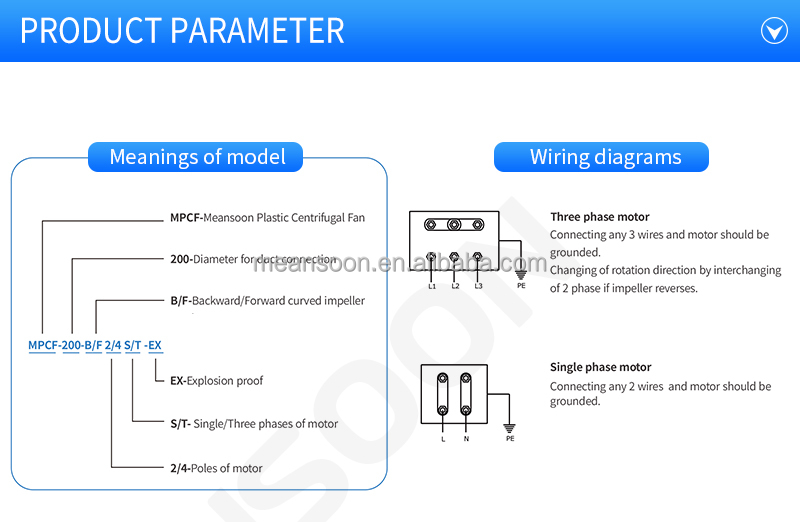

Direct drive, asynchronous, single or three phase, IP55, class F, shape B5 2-pole and
4 pole implementation. Single speed: three-phase 380V-50/60Hz, single-phase 220V-50/60Hz. Explosion-proof versions according to the ATEX directive for three-phase models are available. . Motor is out of air flow. All motor speeds are adjustable by variable frequency inverter drive.
motor support
The metal stand is made of epoxy and painted blue.
