3 inch 75 CREF-2S75 plastic PP duct chemical resistant exhaust fan for deodorizing system
-
Supplier: Hangzhou Meansoon Ventilation Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Frankie Yang -
Price: $125.79 / 1 - 9 pieces
$113.20 / 10 - 49 pieces
$101.89 / >=50 pieces -
Min. Order: 1 piece
| Install: | Duct fan | Packaging Details: | carton |
| Customization support: | Processing | Warranty: | 1 year |
| Origin: | Zhejiang, China | model: | CREF-2S75 |
| Blade material: | polypropylene plastic | Applicable industries: | Manufacturing plants, food and beverage stores, deodorization systems, wastewater treatment industries |
| type: | centrifugal fan | Supply capacity: | 500 pieces per month |
| brand: | Ming Xun | After-sales service provided: | free spare parts |
| Current type: | alternating current | port: | Ningbo, Shenzhen |
| application: | Acid and alkali chemical environment | Package preview: | |
| Material: | Polypropylene | Voltage: | 220V/1 phase/50Hz |
| payment terms: | wire transfer |

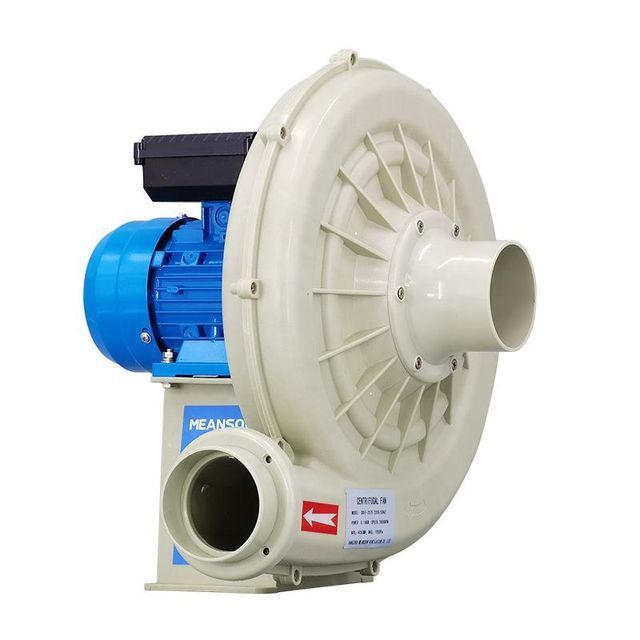

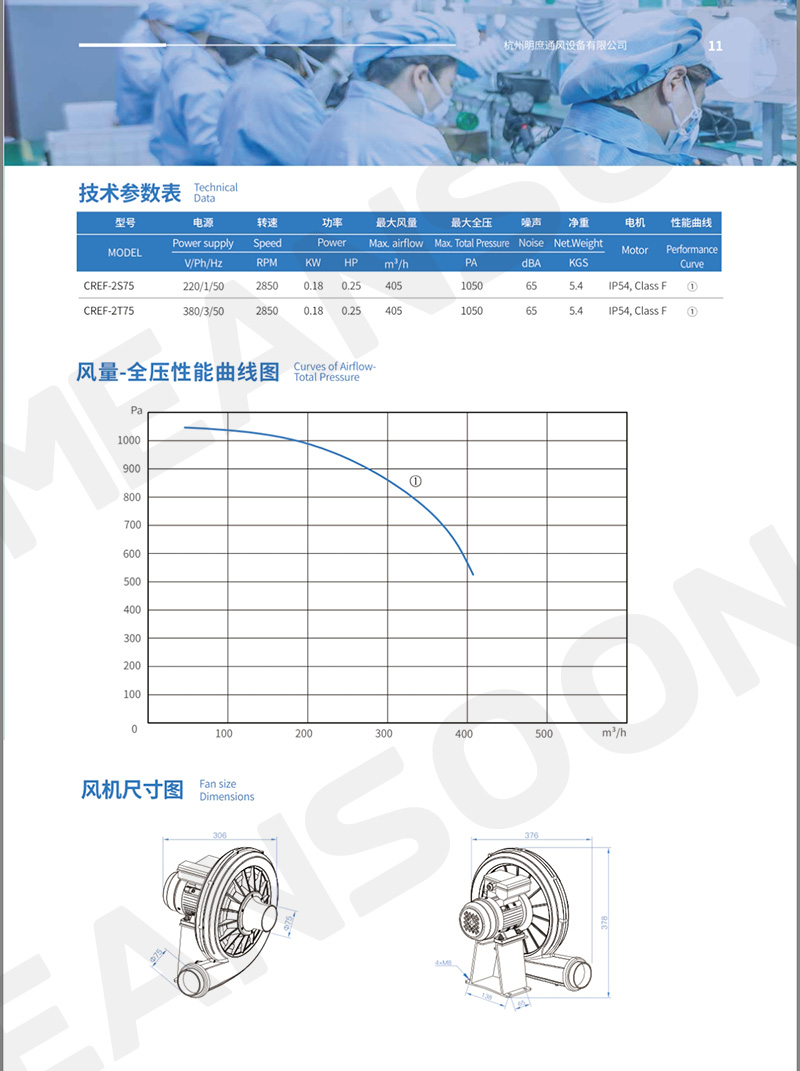

3 inch 75 CREF-2S75 Deodorization System Plastic PP Chemical Resistant Exhaust Fan
Model: CREF-2S75
Motor model: YY563-2
Motor installation form: B34
Power supply: 220V/1Ph/50Hz
Power: 180W
Current: 1.4A
Motor efficiency: 61%
Speed: 2850 rpm
Protection class: IP54
Insulation class: F class
Net weight: 5.35KGS
Gross weight: 6.0KGS
Carton size: 35*26*38CM

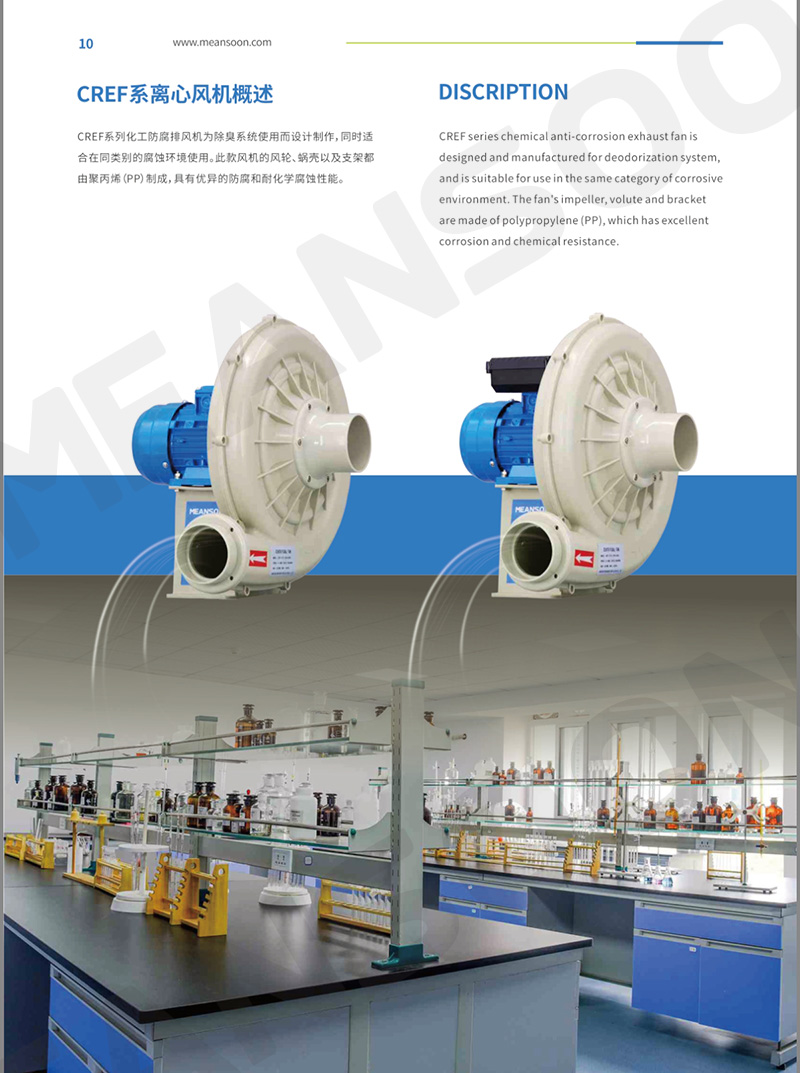

MEANSOON Ventilation CREF series plastic anti-corrosion centrifugal fans are specially designed and manufactured for deodorization systems, and are also suitable for discharging acid and alkali corrosive gases, water vapor and smoke. The impeller, volute, and bracket are all made of high-strength polypropylene, which has good chemical corrosion resistance. Suitable for pharmaceutical and chemical environmental protection equipment. All mounting bolts and nuts are made of 304 stainless steel. The motor shell is made of aluminum alloy, and the motor can be equipped with explosion-proof and frequency conversion
-
