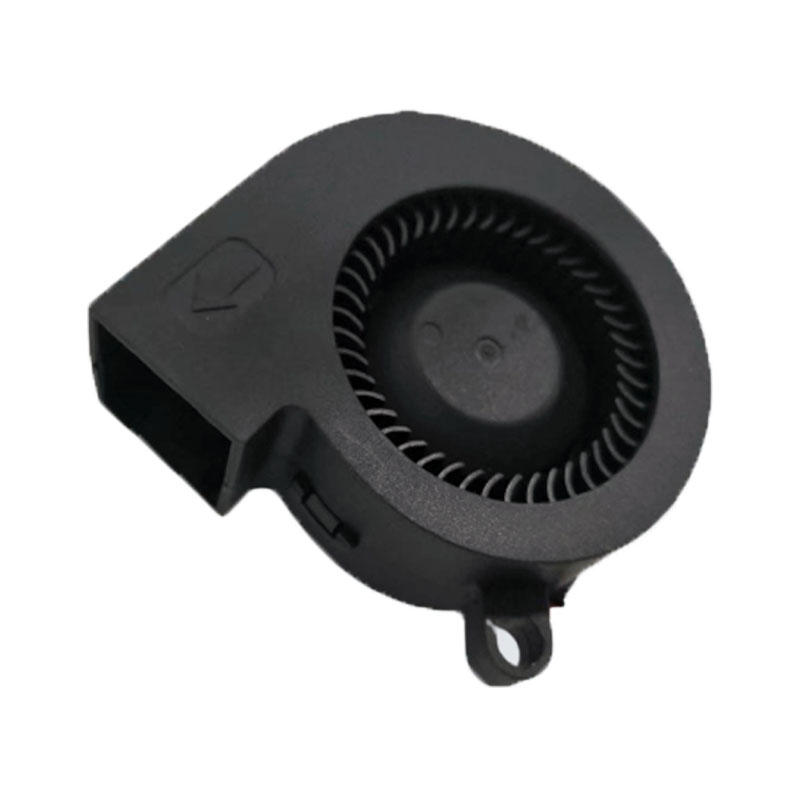

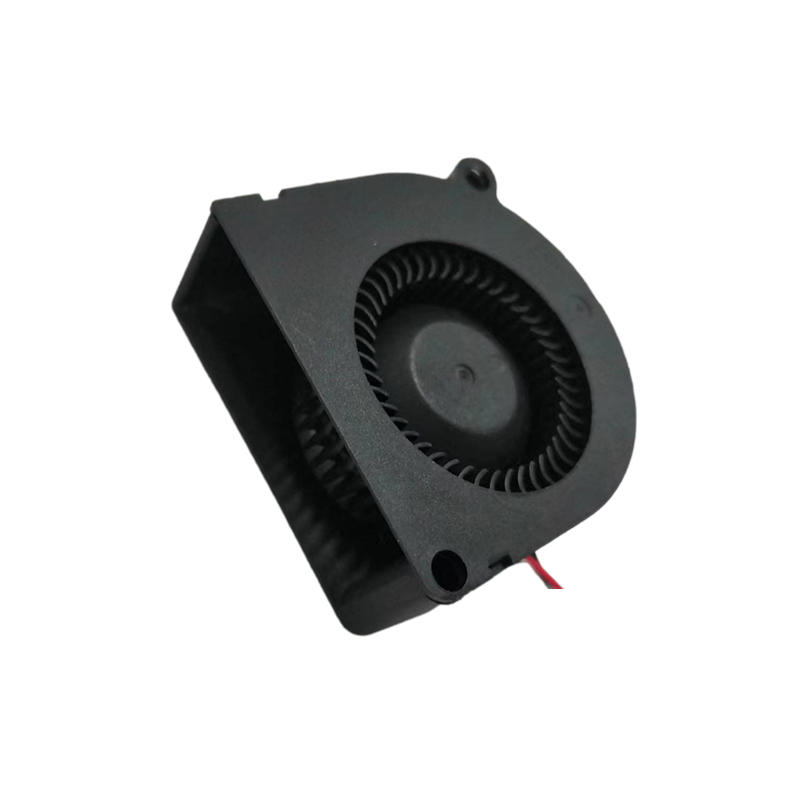

Free Sample Blower High Pressure 50x50x20mm 5v 12v 24v DC Brushless Waterproof Blower 5cm

Supplier: Dongguan Xiangxin Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Zhou manjion
Price: $2.20 / 2 - 999 pieces
$2.00 / 1000 - 9999 pieces
$1.90 / >=10000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

model:	b0520	payment terms:	L/C, T/T

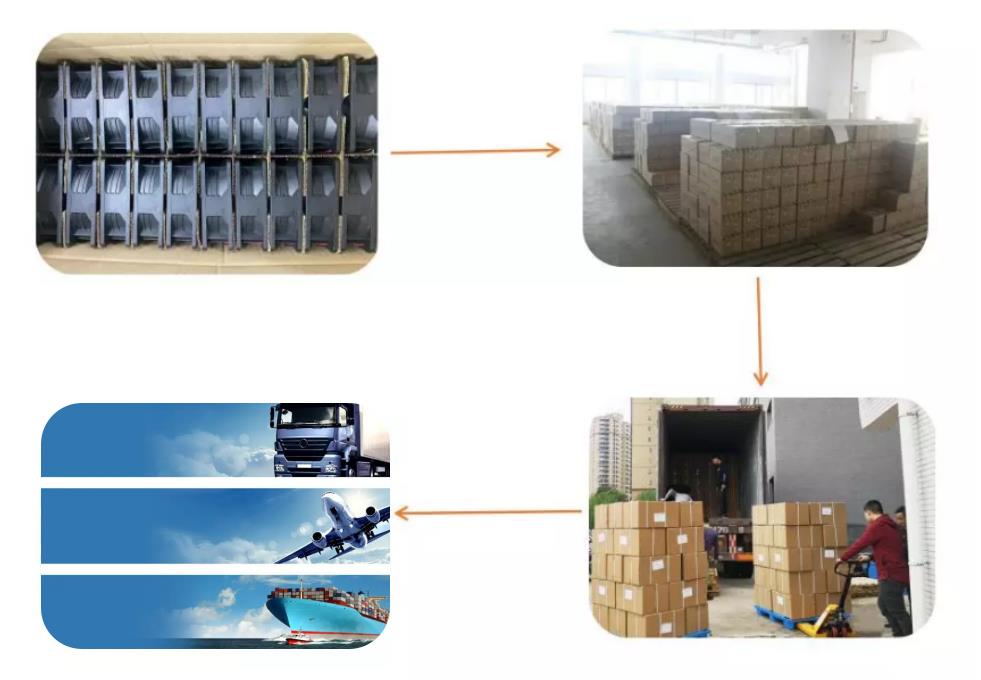

Current type:	direct current	Packaging Details:	Add cartons, knife cards, blisters, etc.
brand:	new fan	Install:	Lock screw installation
Blade material:	plastic	Warranty:	1 year
Customization support:	OEM production	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company
Supply capacity:	50000 pieces per day	Package preview:
After-sales service provided:	free spare parts	Origin:	Guangdong, China
type:	centrifugal fan	Voltage:	5v 12v 24v
port:	Guangzhou Port Shenzhen Hong Kong

Recommended Products

New considerations in 2022: Dongguan Xiangxin Electronic Technology Co., Ltd. is a medium-sized factory integrating production, research and development, and operation. Our advantages:

1.Sample preparation cycle as low as 1-3 days(Sample fee is refundable for bulk purchases.) 2.Mass production cycle as low as 7-15 days(It is recommended to customize more than 1000 sets) 3. Provide technical support, exclusive customization, mold development and design and other services. 4. More than 10 years of industry experience to help you solve various problems in cooling requirements. 5. The company's business philosophy is "continuous innovation, pursuit of excellence"! !

Product Description

BB0520-01

BB0520-02

BB0520-03

Model	Rated voltage	rated current	rated power	rated speed	Maximum air volume	static pressure	noise level
Part Number	VDC	amplifier	watt	Rotating speed	cubic meter	mm water column	decibel
XFBB052005L	5	0.08	0.4	3000	2.1	5.9	28
XFBB052005M	5	0.23	1.15	5000	3.6	11.2	38
XFBB052005H	5	0.4	2	7000	4.9	18.6	45
XFBB052012L	12	0.05	0.6	3000	2.1	5.9	28
XFBB052012M	12	0.12	1.44	5000	3.6	11.2	38
XFBB052012H	12	0.22	2.64	7000	4.9	18.6	45
XFBB052024L	twenty four	0.02	0.48	3000	2.1	5.9	28
XFBB052024M	twenty four	0.08	1.92	5000	3.6	11.2	38
XFBB052024H	twenty four	0.1	2.4	7000	4.9	18.6	45
