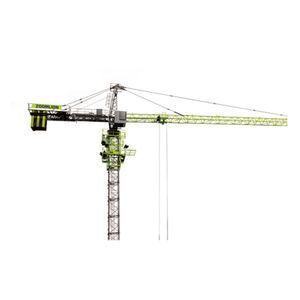

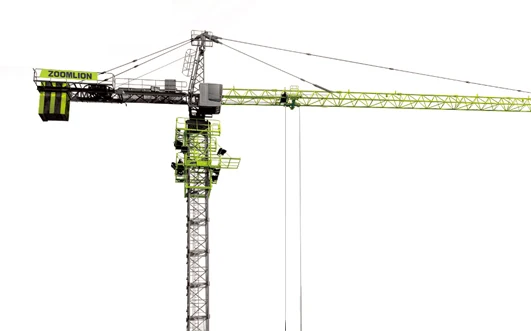

High performance Zoomlion TC5013-4 50m 4 ton Hammerhead Tower Crane good price for sale

1. Performance parameters of TC5013-4: performance parameters and technical indexes reach both domestic and international advanced level.

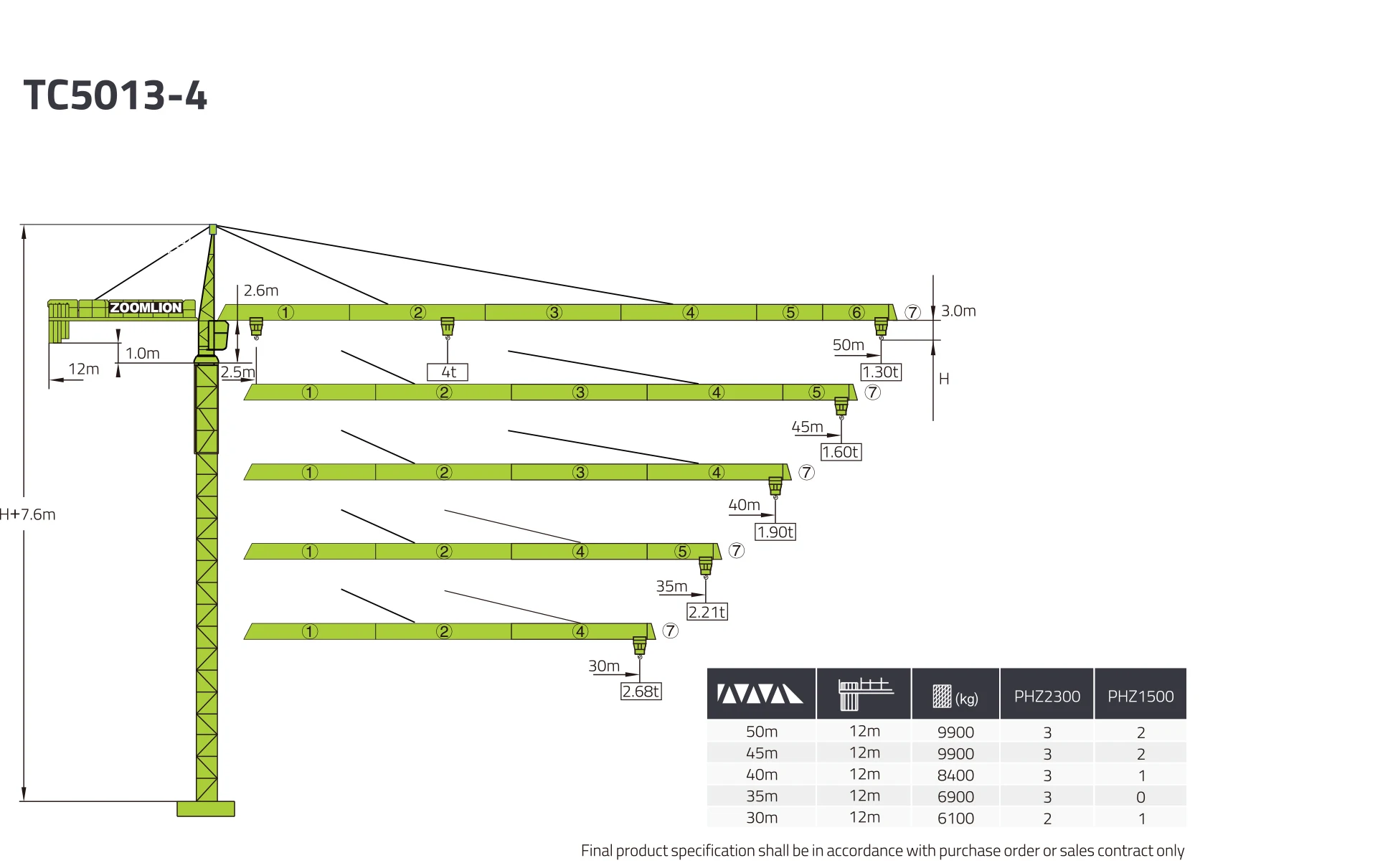

• Max. jib length: 50m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
• Max. lifting capacity 4t;
• Max. hoisting capacity at jib tip: 2.68t;
• Maximum lifting moment 856 kN.m;
• Max. free-standing height: 34.9m; Max. working height of anchored crane: 140m;
• Hoisting mechanism: H15SP10-280-d; power: 15/15/4 kW; rope capacity: 280m;
• Slewing mechanism: HR55.130; power: 5.5 kW;
• Trolleying mechanism: BE24B; power: 2.4/1.5.

2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features
• The crane boasts of multiple operation modes and wide application;
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.

RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.

From the factory to our customer's destination, we will conduct all-round supervision.We can also help to sign purchase order contracts, test product quality, guarantee timelydelivery, and accomodate special orders.

(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

(2)Spare parts: RISEN is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.

(3)Installation & Maintenance: RISEN is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.

(4)Training: RISEN offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

(5)Technical Advice: RISEN can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
