3m scotch 23 all voltage rubber splicing tape for on all solid dielectric cables

Product details
Model Number:23#-2071;Tape Color:Black;
Adhesive Material:Rubber Resin;thickness:0.76mm;
Port:shenzhen;Place of Origin:Guangdong China;
Payment Terms:T/T;Brand Name:3m;
specification:25.4mm*5m;Packaging Detail:Mode: No minimum order quantity Packaging Details:Standard packing or as your requirements.;
Voltage Rating:69 kV;
Product Description

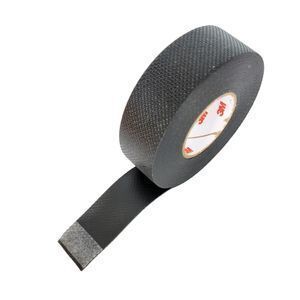

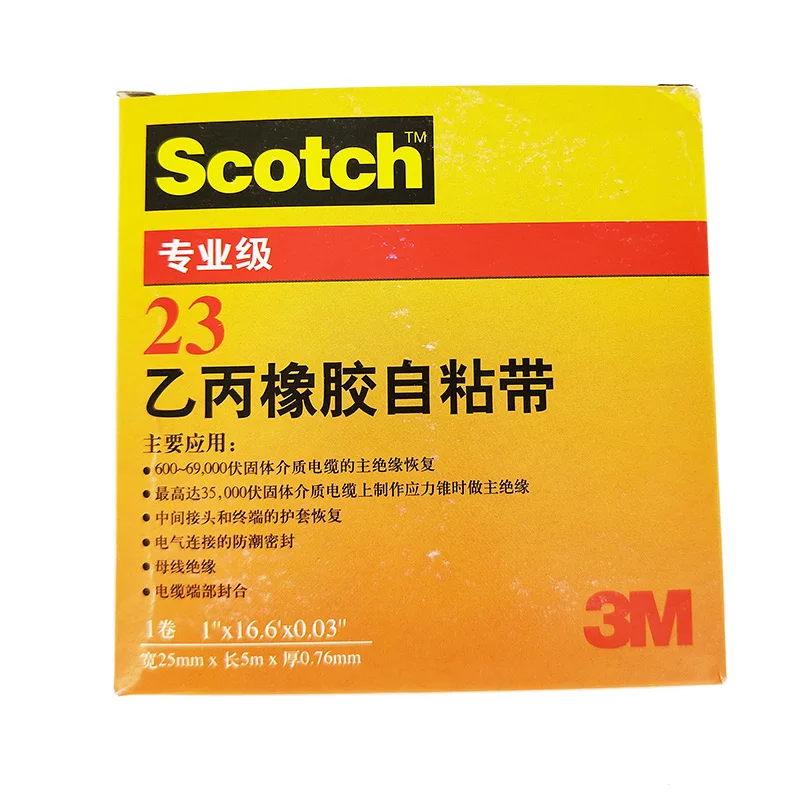

3m scotch 23 all voltage rubber splicing tape for on all solid dielectric cables

Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. highly resistant to split, crack and flag when exposed to indoor or outdoor .

Product Detail

specification25.4mm*5m
thickness0.76mm
Adhesive MaterialRubber Resin
Voltage Rating69 kV
Tape ColorBlack
Product Keywords 3m scotch 23 all voltage rubber splicing tape3m Rubber Splicing Tape 233m 23

model:3m 23#

specification:25.4mm*5m

thickness:0.76mm

Adhesion to Steel :N/A

Adhesive Material:Rubber Resin

Application:Electrical Maintenance, Insulation

Backing Material:Ethylene Propylene Rubber, Polyester lining

Backing Thickness (Metric):0.76 mm

Breaking Strength (Imperial):8 lb/in

Color:Black, Black

Dielectric Strength (V/mil) :800, 800 V/mil

Elongation:10 %

Elongation at Break:1000%

Emergency Overload Temperature (Celsius):130°C

Emergency Overload Temperature (Fahrenheit):266°F

Family:Rubber Splicing Tape 23

High Temperature Rating:194°F (90°C)

Insulated:Yes

Insulation Resistance:> 10^6 megohms

Material:EPR with Liner

Maximum Operating Temperature (Celsius):90 °C

Maximum Operating Temperature (Fahrenheit):194 °F

Product Markets:Electrical Construction, Electrical MRO, Power Distribution

Product Type:Rubber and Splicing Tapes, Rubber Tapes

Tape Color:Black

Tape Length (Metric):9.1 m

Tape Type:Professional Grade Rubber Tape

Tape Width (Metric):19.1 mm, 25.4 mm, 50.8 mm

Tensile Strength (Metric):55 kPa

Total Thickness:0.76 mm

Voltage:69 kV

Voltage Application:All voltage classes

Voltage Rating:69 kV


Details

Rubber resin provides excellent adherence to irregular surfaces

Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables

Suitable for jacketing high-voltage splices and terminations

Available in narrow and wide widths (0.75 in.–2 in.)

Temperature rated for continuous adhesion to 194°F (90°C)

Withstands temperatures up to 194 degrees F (90 degrees C)

Special polyester liner

ASTM Approved & RoHS 2002/65/EC Compliant

High and low voltage insulation, self-fusing rubber tape. Primary electrical insulation for splicing all solid dielectric cables through 69kV


Scotch® Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. This tape is highly resistant to split, crack and flag when exposed to indoor or outdoor environments. It is designed to splice and terminate cables whose emergency overload temperatures can reach 266 degrees F (130 degrees C). This self-fusing ethylene propylene rubber, high-insulating voltage tape has a snakeskin liner that is easily removed as the tape is applied. It is compatible with synthetic cables insulations and paper insulations cables.


FAQ

What is the minimum order quantity?
A: We don't have MOQ, we can accept any quantity.
Q: How long is your delivery time?
A: Generally it is 1-5 work days if the goods are in stock. or it is 10-60 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you customize the specifications?
A:Yes, sure.
