3M23# Rubber Splicing Tape 23 electrical insulation for splicing cable

Supplier: Shenzhen Simihui Electronic Material Co., Ltd.
Region: Guangdong, China
Contact: Mr lewin
Price: $3.28 /roll
Min. Order: 1 roll

Click here to contact

Product details

Brand Name:	3M;	Model Number:	23;
Thickness:	0.76mm;	Size:	1in5m/3/4in9.1m;
Material:	Rubber;	Usage:	electrical insulation;
Place of Origin:	china;	Port:	shenzhen;
Package Preview:	;	Color:	Black;
Payment Terms:	paypal;

Need a lot of wholesale,Please contact us, the price is negotiable

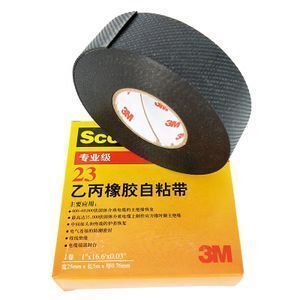

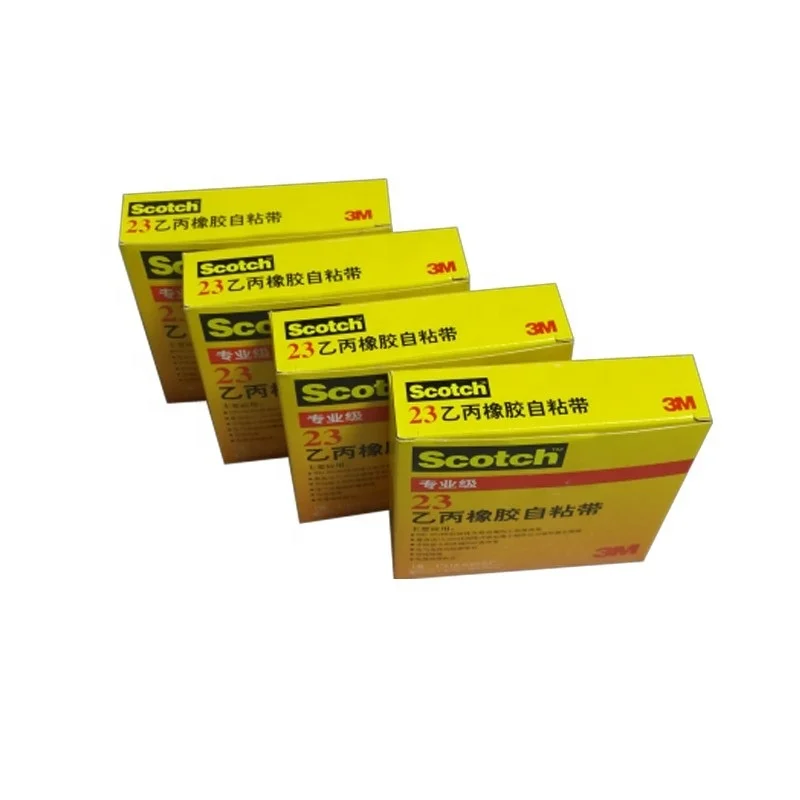

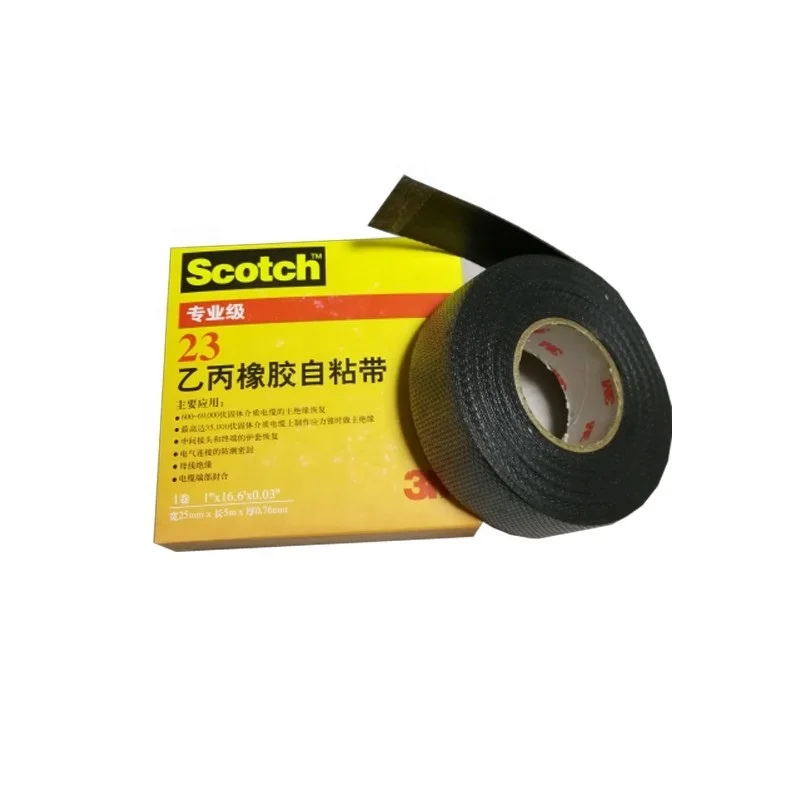

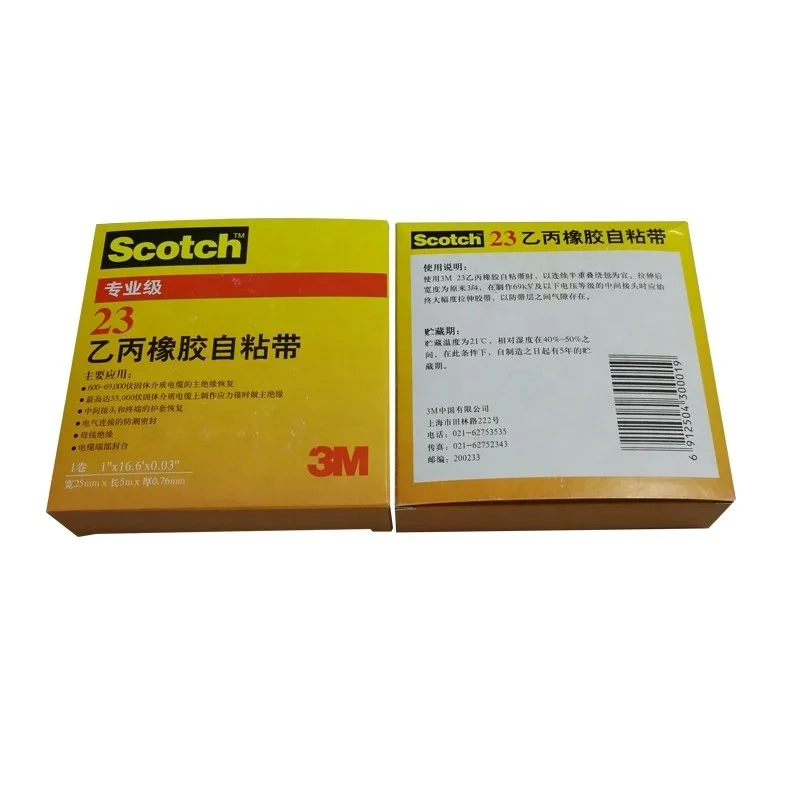

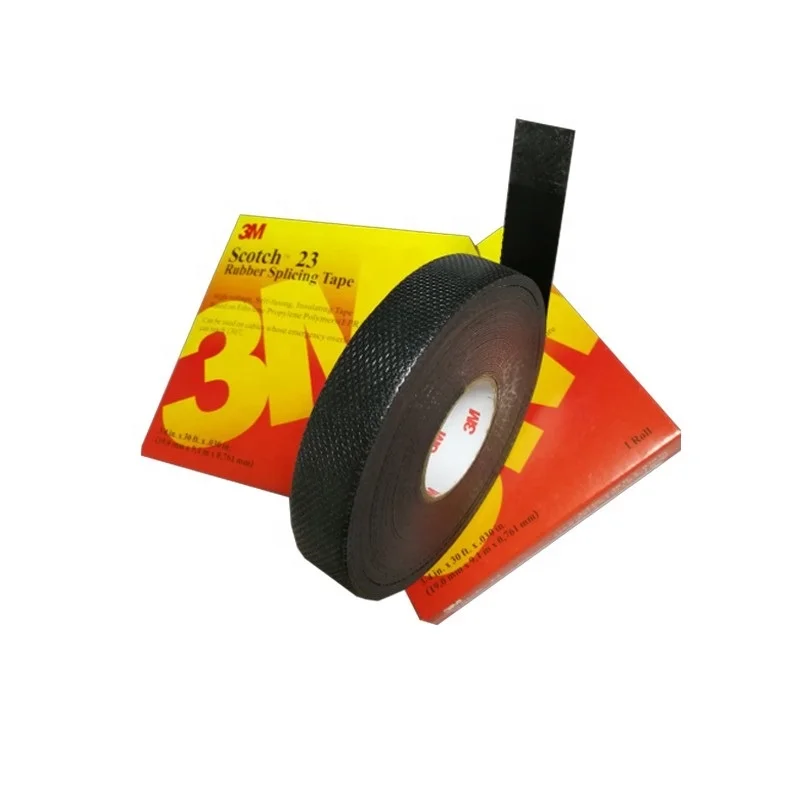

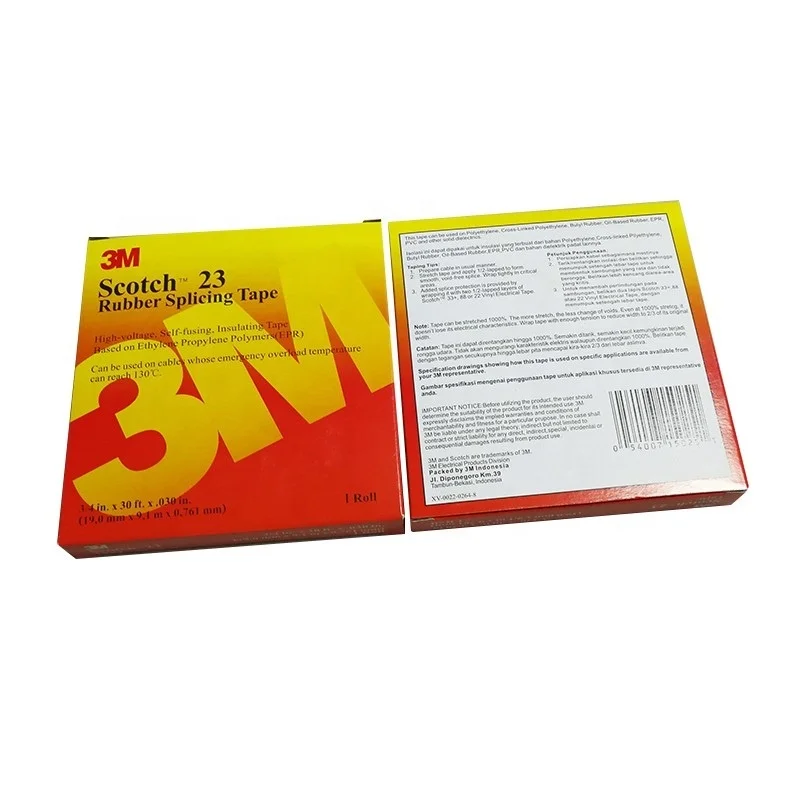

3M 23#

Scotch® Rubber Splicing Tape 23

size:

1in*5m*0.76mm

3/4in*9.1m*0.76mm

Features

Can be used to splice and terminate cables whose emergency overload temperatures can reach 130°C.
Based on Ethylene Propylene Rubber (EPR).
Physical and electrical properties are unaffected by thedegree of stretch.
Self-fusing tape.
Excellent electrical properties.
A special polyester liner which will not stick to the tape upon unwind.
Compatible with all solid dielectric cable insulation:-
         Polyethylene (high and low density).
         Cross-linked polyethylene (XLPE).
         Polyvinyl chloride (PVC).
         Butyl rubber.
         Ethylene Propylene Rubber (EPR).
         Oil-based rubber.

Details

Rubber resin provides excellent adherence to irregular surfaces
Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables
Suitable for jacketing high-voltage splices and terminations
Available in narrow and wide widths (0.75 in.–2 in.)
Temperature rated for continuous adhesion to 194°F (90°C)
Withstands temperatures up to 194 degrees F (90 degrees C)
Special polyester liner
ASTM Approved & RoHS 2002/65/EC Compliant

High and low voltage insulation, self-fusing rubber tape. Primary electrical insulation for splicing all solid dielectric cables through 69kV

Scotch® Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. This tape is highly resistant to split, crack and flag when exposed to indoor or outdoor environments. It is designed to splice and terminate cables whose emergency overload temperatures can reach 266 degrees F (130 degrees C). This self-fusing ethylene propylene rubber, high-insulating voltage tape has a snakeskin liner that is easily removed as the tape is applied. It is compatible with synthetic cables insulations and paper insulations cables. ASTM Approved & RoHS 2002/65/EC Compliant.

Applications

Primary electrical insulation for splicing cable from 600V to69kV on all solid dielectric cables.
Primary insulation for building stress cones on cables up to35kV on all solid dielectric cables.
Jacketing on high-voltage splices and terminations.
Moisture sealing electrical connections.
Bus bar insulations.
End sealing high-voltage cables.

Packaging & Shipping

Packing details: original packaging or as per your request
Delivery details: About shipping courier, there have DHL, FedEx, UPS, TNT, EMS, Aramex or other couriers, we will dispatch goods with anyone of the couriers. If you assign courier, please contact with us before order confirmed. Tracking Number will be sent to you via e-mail after your order has been shipped.

FAQ

What is the minimum order quantity?
A: We don't have MOQ, we can accept any quantity.
Q: How long is your delivery time?
A: Generally it is 1-5 work days if the goods are in stock. or it is 10-60 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you customize the specifications?
A:Yes, sure.

Part of the product details:
3M buckle: SJ3560 (1IN, 2IN), SJ3561, SJ3540, SJ3541, SJ3542, SJ3440 (1IN, 6IN), SJ3441, SJ3550 (1IN, 2IN), SJ3551 (1IN, 2IN), SJ3552, SJ4570 (1IN, 2IN, 6IN), SJ4580, SJ4575 (1IN, 6IN), SJ3571 (1IN, 2IN), SJ3572 (1IN, 2IN), SJ3518FR, SJ3519FR, SJ3767, SJ3463, SJ3741/5408, SJ3780/5408, Gorman Magic Buckle (White, Black ), Gaoman plastic strip (poster / waterproof / transparent)......
3M glue: 1099, 4475, 847, 4799, 1300, spray glue 75#, 77#, 67#, 90#, 94# primer, DP8005 (transparent/black), 1252, DP8010, DP100, DP110, DP420, DP460 , DP190, DP270, DP760, DP810, CA40H, 2216, EC2216
Electrician cement: 2228, 2166 electrical tape 23#, J20, 33+, 35#, 130C, 70#, 88#, rust agent, putty/ putty tape
Aluminum foil tape: 425, 1181, 1182, 1183, 1245, 1170
Fiber tape 898,8915 897,8898
Textured paper 2090, 2310SE, 2310, 2308, 232, 2214, 4032, 4026, 410M, 244, 250
3M foot pad SJ5832 SJ5816 SJ5303, SJ5003, SJ5012, SJ5312, SJ5302, SJ5382, SJ5306, SJ5008, SJ5514, SJ6016, SJ6208, SJ5523, SJ5023, SJ5308
3M anti-slip mat: 220, 610, 630, 310, 510, 530, 620, 370, 613, 690, 710
Cloth tape: 6969 silver / black 3939, 3903 silver / black / yellow / white / red, etc., 8979
Single-sided Scotch tape: 811,810,845,616,600,610,665,851J,5702,471,766,1755
Double-sided tape: 9731-140/100/50, 55261, 55256, 55257, CP5112, 9080HL, 9080A, 9495LE, 9075, 5604A-GF, 5611A-GF, 4611, 1600T, 4941, 4926, 467, 468, 4945, 4229P, GA808, 9448A, 9448HK, 9448HKB, CIP66, 69#, 4910, 4905, 4926, 4945, 468MP, 467MP, 851J, 5952, 5925, 5915, 9415PC, 5413, 9415PC, 9245HT...
Various domestic double-sided adhesive / single-sided adhesive / black and white adhesive / conductive adhesive, etc.

Optical Backlight Reflective Film (Double Silver, Silver, Black and Silver, Ultra Thin and Bright Reflection), 3M Backlight ESR, Lamp Diffusion Film / Uniform Film, Lamp Reflective Film,Fluoroplastic Film, Protective Film, Release Film, Electrostatic Film , high permeability film, mirror film, ITO conductive film, bright silver dragon, brightness enhancement film, optical product 8173D, various specifications OCA (8146-4/8146-5, LG, etc.) optical adhesive series products!
