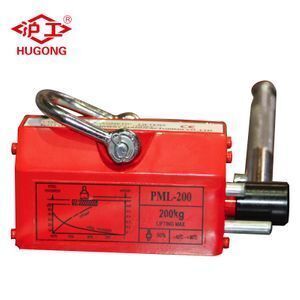

Trade assurance 1ton 2 3 4 ton permanent magnetic lifter using lifting magnet

Product details
Maximum lifting weight:5000;packing:carton or wooden box;
Name:1ton 2 3 4 ton permanent magnetic lifter used lifting magnet;Dimension(L*W*H):22.5*13*12.5cm;
Condition:New;Usage:lift steel plate;
minimum lifting weight:100;Place of Origin:Shanghai China;
Port:Tianjin Xingang;Showroom Location:None;
Supply Ability:2000 Set/Sets per Month magnetic lifter;Color:customized;
Local Service Location:None;After-sales Service Provided:Online support;
net weight:3-400KG;Packaging Detail:carton and wooden box;
Brand Name:HUGO;breakage:300-15000kg;
After-sales Service Provided:Engineers available to service machinery overseas;Warranty:1 year;
Certification:ISO CE;Applicable Industries:Construction works ;
Warranty:one year;Payment Terms:L/C,T/T,Western Union,MoneyGram;
After Warranty Service:Video technical support,Online support;

Trade assurance 1ton 2 3 4 ton permanent magnetic lifter using lifting magnet

Product Description



The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.



ModelRated capacity(Ton)Max tension(kg)Size(mm)Net weight(kg)
LBHR
YS-1001003009063681453
YS-40040012001609518016011
YS-600600180022011512523020
YS-10001000300026014514528040
YS-15001500375031014514528048
YS-20002000500034016016541060
YS-30003000750042018518551090
YS-4000400010500480200200510120
YS-5000500015000580300300650400



Small manual permanent magnetic lifting advantage

 1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

3. Using high-performance permanent magnet, ensure the power and high safety.

4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.

5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.

6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.

7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.

magnetic lifting parts

magnetic lifting Packing

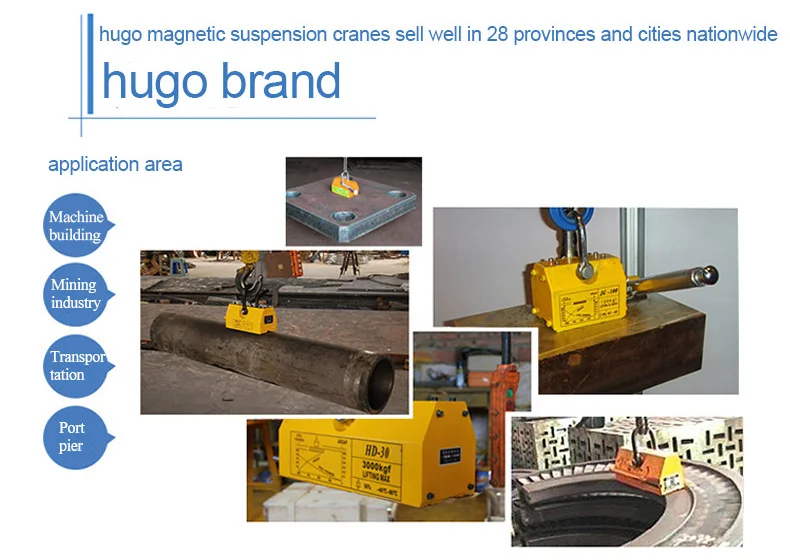

magnetic lifting application case



Our Products

Product Range(Click the blue words for more information)

Hydraulic jack/Chain Block/Lever hoist/Electric Chain Hoist/Electric Wire Rope Hoist/Wire Rope Winch/Pallet Truck/Stacker/Magnet lifter/weighing scale

Know more<<<Get new discount price here!!!>>>



Company Information

Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.

1. Annual production in 5 million units production area 3600 square meters;

2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.

3. 120 production lines;

4. More than 500 employees;

5. Annual export value over 50 million RMB.







Why Choose Us

BRAND ADVANTAGE

1. 50 years brand history; (Trademark registration number; 1975110)

2. TOP5 lifting equipment supplier in China;

3. One of the first batch of enterprises certified by Alibaba;

4. Brand customers: CNPC, China Railway Group and so on



TECHNOLOGY ADVANTAGES

1. Focuse on the production and R&D of lifting equipment for about 30 years;

2. Professional independent research and development team, recognized by domestic and foreign customers.

3. Company was honored by the givernment as a High-Tech enterprise in 2010



Service Advantage

1. 7D*24H after-sales service,

2. More than 100 professional service staff.



The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.



Certifications

RIGOROUS QUALITY CONTROL

1. Certificate:CE,SGS,ISO:9001,BV

2. The third-party inspection for quality testing is accepted

3. Product qualification rate more than 98%

4. In accordance with the requirements of Environmental Protection Administration,

    the quality and delivery can be guaranteed



Our Services

1. Perfect maintenance service and maintenance consultation system to provide high quality experience for customers at home and abroad; whole year warranty.

2. Small order can be accepted, MOQ 1PCS.

3. Quality assurance agreement provided.

4. 7D*24H after-sales service.

5. More than 100 professional service staff.

6. Video tutorials, maintenance, technical consultants, installation guidance are offered.



FAQ

1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
5. What’s the information should I provide when inquiry?
     a. What's the lifting material?
     b. How much is the maximum lifting weight of the hoist?
     c. Have you installed the rails? Do you need us supply the rails? How long is it?
     d. Where are the working environment?
