Automatic copper tube straightening and cutting machine cutting 2 tubes one time

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $14600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting speed:	10 cuts per minute;	Cutting length:	Min. 40 mm, max. 6000mm;
Single gross weight:	3,000 KG;	Copper tube diameter:	6.00~20mm;
Type:	Straightener & Cutter;	Voltage:	380V (or customized);
Warranty:	one year;	Straightening rollers:	chrome coated quenched 65Mn;
Weight:	1200kg;	Copper coil size:	Outer diameter: 1000~1250mm;
Place of Origin:	Guangdong China;	Single package size:	1000X90X200 cm;
Copper coil weight:	Max. 280kg;	Tube wall thickness:	0.3~1.5mm;
After-sales Service Provided:	No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support;	One-time feeding stroke:	1000 mm;
Use:	Pipe;	Applicable Industries:	Air conditioner plant;
Certification:	ISO;	Condition:	New;
Power(W):	3KW;	Straighteness tolerance:	≤2‰;
Selling Units:	Single item;	Brand Name:	Zhenhuan;
Dimension(LWH):	6mx0.9mx1.2m (main machine);	One time cutting:	2 tubes;
Package Type:	This KLJ20-2-1000 automatic copper tube straightening and cutting machine will be packed in three sea worthy wooden cases. One 20' container will be needed.;

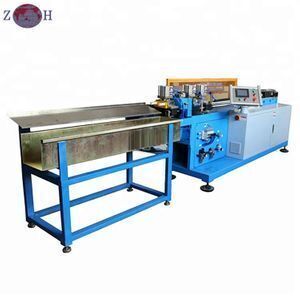

Automatic Copper Tube Straightening and Cutting Machine

This automatic copper tube straightening and cutting machine is for straightening copper pipes in coil type and cutting into certain length for AC,refrigerator, car, plane,etc.|automatic copper tube straightening and cutting machine|automatic copper tube straightening and cutting machine|

Main features of automatic copper tube straightening and cutting machine:

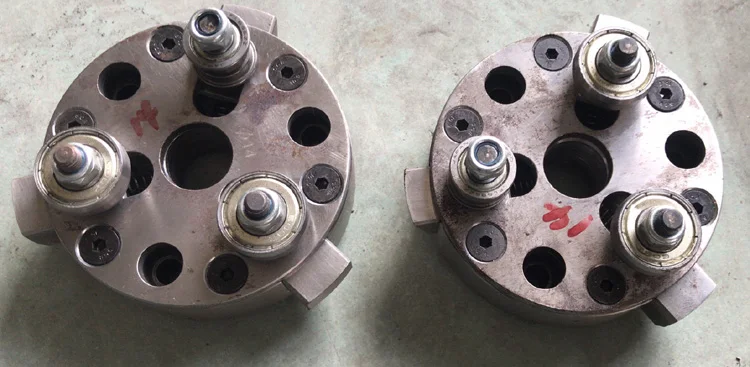

1) Our special design for copper tube straightening, Chrome coated quenched 65Mn straightening rollers:

2) Adopting orbital cutting method, chipless cutting

3) Servo feeding, high repositioning precision

4) Touch screen operation, PLC control, high automation, convenient adjustment

5) With stretch breaking-off function, low necking-in rate

6) One time straightening & cutting two pieces simultaneously

7) Active decoiling pay-off device, capable for all range copper tubes (with motor & reducer):

|automatic copper tube straightening and cutting machine|automatic copper tube straightening and cutting machine|

Main technical data of automatic copper tube straightening and cutting machine:

No.	Item	Data
1	Suitable copper tube	Coil, TP1/2 (M/M2)
2	Suitable copper tube diameter range	6.0~20mm
3	Suitable copper tube wall thickness	0.3~1.5mm
4	Cutting length range	40~6000mm
5	Pay-off device	2
6	Copper coil reel size	OD: 1000~1250mm; ID: 130mm Weight: max. 280kg
7	Cutting copper tube numbers	2*
8	Cutting speed	10 cuts per minute (@L=1000mm)*
9	Feeding speed	Max. 0.5m/s
10	One-time feeding stroke	Max. 1000mm
11	Straightness tolerance	≤2‰
12	Cut-to-length tolerance	≤0.3mm /1000mm
13	Length difference between two tubes	≤0.5mm
14	Tube end ID reduction ratio	f < 25%*
15	Roundness of cut tubes	Non-roundness ≤3% (diameter ≤ 12.7mm) Non-roundness≤0.4mm (diameter > 12.7mm)
16	Surface condition after cut	No apparent scratch, drawing marks; no burrs
17	Compressed air	0.5-0.7MPa
18	Total electric consumption	3kW

|* 1- We have other options: Option 2x2, there are two separate driving system for cutting 2 pairs tubes in different diameter and different length; Option 1x4 means there is only driving system for cutting 4 tubes in same diameter and length.

* 2- When cutting length is less than 100mm, there will be no pre-stretching function.

* 3- Tube end ID reduction ratio means:

f= (d₁-d₀)/d₀%

Coil copper tube straightening and cutting machine under commissioning:

|automatic copper tube straightening and cutting machine|automatic copper tube straightening and cutting machine|

Main configuration of automatic copper tube straightening and cutting machine:

- PLC + HMI: Delta from Taiwan

- Pneumatic components: AIRTAC from Taiwan

- Servo motor: Delta from Taiwan

- Limit switch: Autonics from Korea

- Ball screw: TBI from Taiwan

- Buttons & relays: IDEC from Japan / SIEMENS from China

- Switch power: Delta from Taiwan

- Circuit breaker: Fuji from Japan

- Main switch, AC contactor and thermal relay: SIEMENS from China

|automatic copper tube straightening and cutting machine|automatic copper tube straightening and cutting machine|

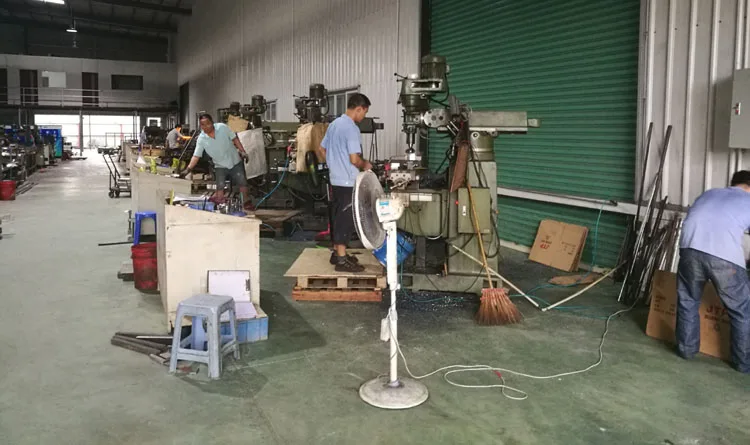

Our factory facility assuring quality of copper tube straightening & cutting machine:

||automatic copper tube straightening and cutting machine|automatic copper tube straightening and cutting machine|

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 15 years. We are certified by BV, TUV and SGS for good reputation and credit. We can provide you good quality automatic copper tube straightening and cutting machine as well as good services.
