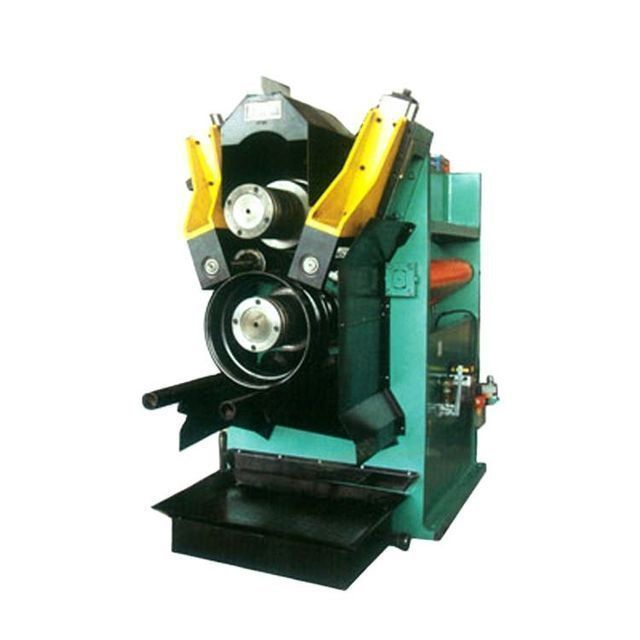

Tubeless Wheel Roll Forming Machine, China

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $85000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	4 sets per month	place of origin; place of origin:	Jiangsu, China
weight:	18000 kg	Car equipment:	other
Lower spindle rising speed:	less than 100mm/s	Packaging Details:	Tubeless rim forming machine China will be exposed in wooden packaging
usage:	car rim	Spindle speed:	50~450 rpm
Rim Thickness:	4-8mm	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Bottom ingot boost strength:	30 tons	Model:	other
Main drive motor power:	121 kW	port:	Qingdao
Warranty:	1 year	year:	other
Guide wheel drive mode:	Pneumatic flexible drive	brand:	Zhenhuan
Dimensions:	2000×2600×2400mm	Rim diameter:	12-25 inch

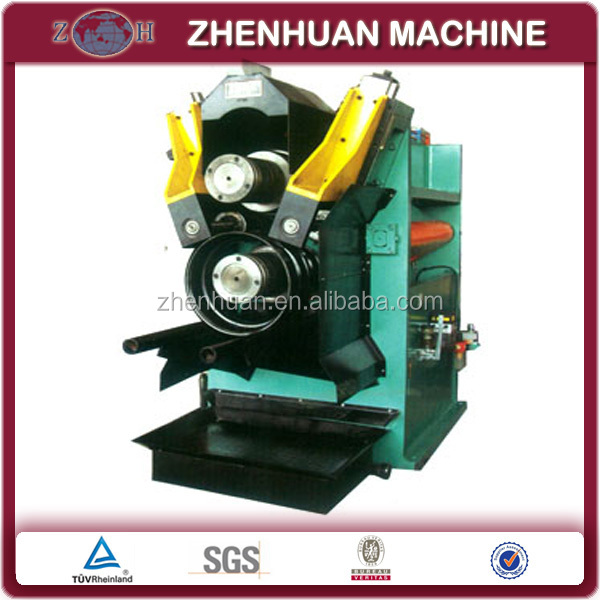

Tubeless Wheel Roll Forming Machine China

Description of Tubeless Wheel Roll Forming Machine China

This machine is specially designed for rolling steel rims.

The machine is driven by hydraulic pressure and works smoothly.

This machine is controlled by PLC and operated by touch screen, which is simple and convenient.

The main shaft is made of special forged alloy with high fatigue strength.

The spindle can be adjusted in 3D, that is, up and down, forward and backward, and tilted, controlled by PLC.

The hydraulic oil tank is equipped with a cooling system suitable for high temperature ambient conditions.

Main Technical Data of China Tubeless Wheel Roll Forming Machine

Applicable rim diameter	17.5 ~ 24”
Applicable rim width	7.5~20”
Spindle diameter	200mm
Spindle length	450mm
Number of main forming rolls	2
Number of guide rollers	4
Side guide shaft diameter	φ90mm
side guide travel	200mm
Spindle speed	50~450 rpm
Spindle adjustable tilt angle	0 ~ 1.5°
Axial adjustable distance of the lower spindle	± 2mm
Lifting force of lower spindle	30000kgf
Reduce spindle speed	100 mm/s
Spindle torque	4050N·M
Hydraulic pump motor power	121 kW
Lubrication method	Motorized centralized lubrication
Machine size	2000×2600×2400mm
machine weight	18000 kg

Main Configurations of China Tubeless Wheel Roll Forming Machine

Programmable Controllers	Japan Omron
touch screen	Delta from Taiwan
button	Schneider
Electric control cabinet	Assemble the electrical box
sensor	Imported from Japan
lubrication pump	American BIJUR dry oil pump

We, Nantong Zhenhuan Trading Co., Ltd., specialize in different kinds of machinesformoremore than 10 years. We can not only provide you with high-quality machinesbut alsoGood after-sales service.
