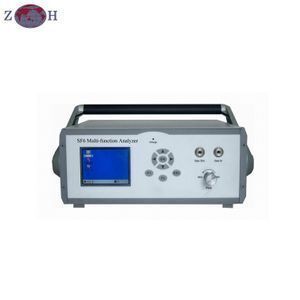

SF6 multi-function analyzer

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Precision for decomposition:	+/-1ppm;	Packaging Detail:	SF6 multi-function analyzer will be packed with sea worhty wooden case;
Display Type:	Analog and Digital;	Output interface:	USD1.1;
Sample gas flux:	no relation;	Supply Ability:	60 Set/Sets per Quarter;
Weight:	3.0kg;	Supply Voltage:	AC/DC;
Model Number:	SF-II;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Measuring range for purity:	0~100%;	Delivery Detail:	within 20 working days;
Working pressure:	0-1.0MPa;	Guarantee:	One year since the date of B/L;
Measuring range for moisture:	-80°C ~ +20°C (dew point);	Place of Origin:	Hubei China;
Weight:	about3.5kg;	Port:	Shanghai;
Accuracy Class:	+/-1ppm;	Operating Temperature:	20 ~50;
Equippd with:	electron flux meter;	Dimension:	285165320mm;
Measuring Range:	-80°C ~ +20°C (dew point);	Brand Name:	Zhenhuan;
Dimensions:	132 x 283 x 308mm;

SF6 multi-function analyzer

Description

For successful SF6 Gas Recycling and Reuse it is essential to know three impurity values. These are:

Purity of SF6 Gas
Moisture Content
Concentration of SF6 Decomposition Products

This multi-function analyzer can analyze those three values, therefore providing a very convenient way to determine the reusability of SF6 gas and on-site validation of recycling efforts.

This analyzing meter can finish three measurements one time so saving gas used and reducing air pollution.

This meter adopts world famous sensors from overseas. Sensor for moisture is from Finland; Sensor for purity is from Germany; Sensor for decomposition products is from UK special for SF6 gas.

Main features for SF6 multi-function analyzer

1) Big size sunlight readable LCD, graphic menu

2) With data communication interface

3) Electron flux and electricity displaying

4) Measured data automatically saved and printed

5) Instrument self-diagnosing function

6) AC/DC power supply, built-in rechargeable Lithium ion battery

7) Compact, light and portable, low maintenance

8) With data management system software

Main technical data for multi-function analyzer

3.1 SF6 moisture:

1) Measuring range: -80°C ~ +20°C (dew point)

2) Precision: ± 0.5°C

3) Resolution ratio: 0.01°C or 0.1ppm

4) Response time at 63% (90%)

+20→-20°C Td 5s (45s)

-20→-60°C Td 10s (240s)

5) Repeatability: +/-0.4°C

6) SF6 gas flux adjustment at 0.5~0.9L/min

7) Probe protection: stainless steel sintering filter

3.2 SF6 purity

1) Measuring range: 0~100%

2) Precision and repeatability: +/-0.4%, not related to flux

3) Response time: 15s at 90%

3.3 SF6 decomposition by-products

1) H₂S: 1~200ppm

2) SO₂: 1~100ppm

3) HF: 0~10ppm (optional)

4) Precision: +/-1ppm
