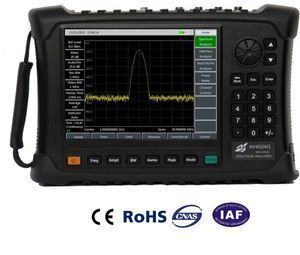

AV4024D/E/F/G Spectrum Analyzer

  • Supplier: Wuhan Huajin Co., Ltd.
  • Region: Hubei, China
  • Contact: Mr Willy Wu
  • Price: $23000.00 /set
  • Min. Order: 1 set
Product details
Single gross weight:10 KG;Place of Origin:China;
Brand Name:Ceyear;Power consumption:≤30W (no charging to the battery);
Single volume:7,000 cm;Selling Units:Single item;
Resolution bandwidth:1Hz~10MHz;Model Number:AV4024;
Battery power supply:About 2.5h;Wide frequency range:9kHz to 44GHz, 4 models;

Product Overview

4024 series spectrum analyzer has many advantages: wide frequency range, high performance , high sweep speed, various functions, and easy operation. In terms of performance index, it has excellent displayed average noise level, low phase noise, and high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc. as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, emission mask, and carrier-to-noise ratio etc. 4024 adopts the integrated design of 8.4 inch LCD and capative touch screen, which improves the display definition and operation convenient. It is handheld, compact and light, with flexible power supply, which is very suitable for field work.

4024 can be used for signal and equipment test in the fields of aerospace, microwave & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.



Main Characteristics

 Wide frequency range: from 9kHz to 44GHz, 4 models



 Low displayed average noise level: -163dBm@1Hz RBW(typical)



 Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier



 High sweep speed: for 1GHz span, shortest sweep time <20ms



 Resolution bandwidth: 1Hz~10MHz



 Full-band pre-amplifier: standard configuration



 Various measurement functions: spectrum analyzer, interference analyzer (spectrogram,          RSSI),AM/FM/PM analyzer, channel scanner, high accuracy power meter etc.



 Various intelligent measurement functions: field strength measurement, channel power, occupied        bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask.



 Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero     span IF output interface, external triggering input interface etc.



 Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient    capacitive touch screen operation, combination of LCD and touch screen, various display modes, and    automatic adjustment of backlight brightness etc.



 Working temperature range: -10℃~50℃; Power supplied by battery or adapter.



Various measurement functions





Interference analyzer (spectrogram)



AM/FM/PM demodulation



Channel scanner

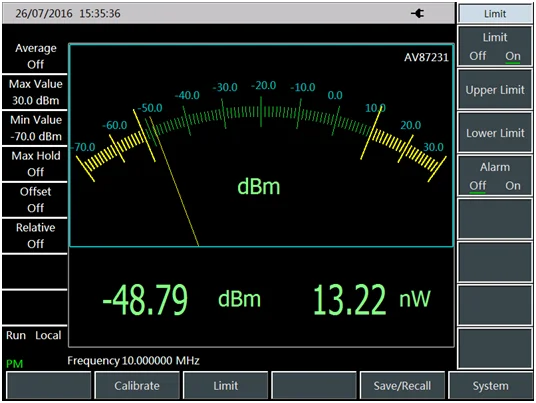

Power meter (USB power probe)



Comprehensive intelligent measurement function

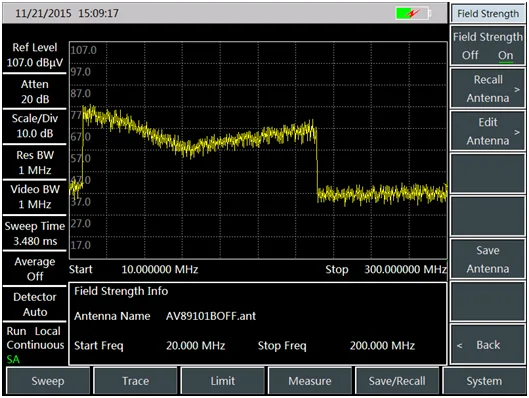

Field strength measurement

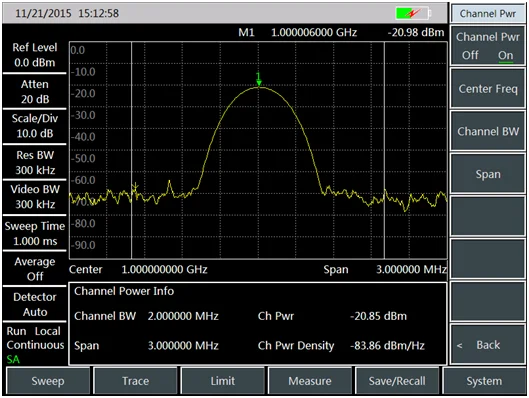

Channel power

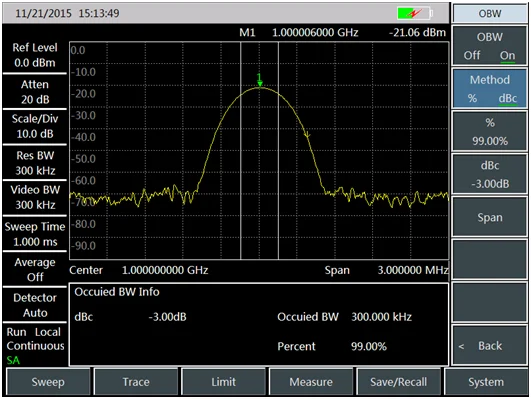

Occupied bandwidth

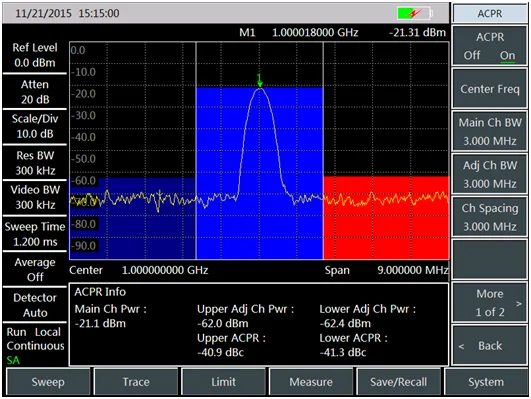

Adjacent-channel power ratio

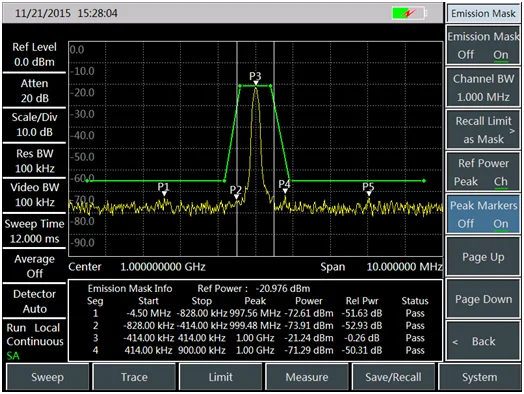

Emission mask

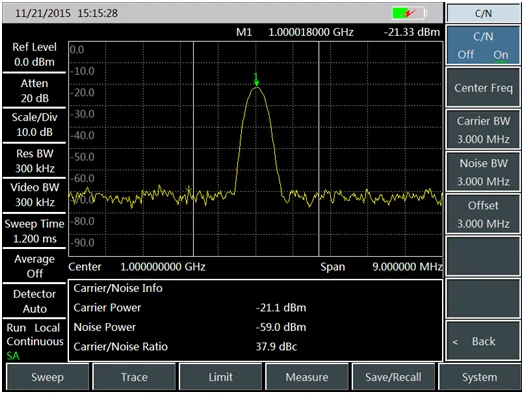

Carrier-to-noise ratio



Limit line

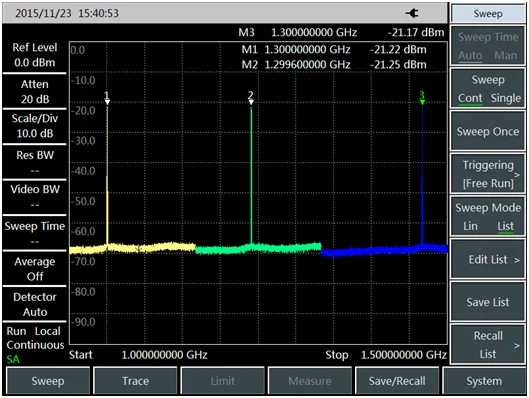

List sweep

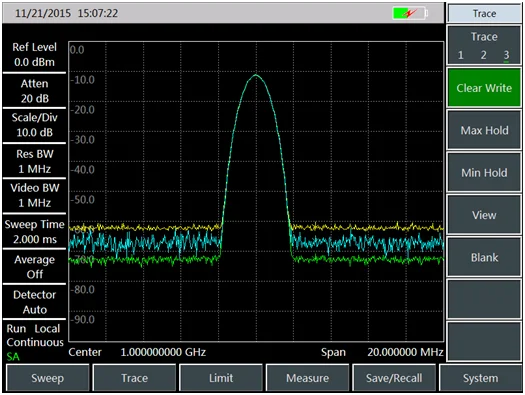

Multi-traces

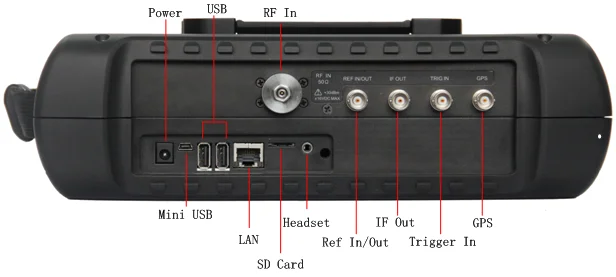

Various auxiliary test interfaces

Easy & convenient user operation

 One-click quick measurement

Storage and invocation of state and data

Combination of 8.4 inch LCD and capacitive touch screen; smaller light refraction and clearer display.

Convenient capacitive touch screen operation.

Various display modes: better experience under outdoor light and night vision.

Automatic adjustment of backlight brightness.



Typical Applications

Comprehensive performance evaluation of electronic weapon equipment

4024 series spectrum analyzer has advantages of wide frequency range, high performance index, high sweep speed, multiple test functions, and easy operation. It is handheld, compact and light, which can be power supplied by battery. It can be used for the field installation & calibration, repair & maintenance of electonic weapon equipment in fields of radar, communication, electronic countermeasures & reconnaissance, and precision guidance etc. .

Field test and diagnosis of transmitter and receiver

4024 serious spectrum analyzers have various measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc. as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc. It can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.

Broadband spectrum monitoring, interference recognition

Connected with external directive antenna, 4024 series spectrum analyzer can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.



Technical Specifications

Model

4024D/E/F/G

Frequency range

4024D:9kHz~20GHz      4024E:9kHz~26.5GHz

4024F:9kHz~32GHz      4024G:9kHz~44GHz

Tuning resolution:1Hz

Frequency reference

Frequency: 10MHz

Aging: ±0.5ppm/year

Initial frequency accuracy: ±0.3ppm

Temperature stability:±0.1ppm(-10~50℃, comparative to 25℃)

Sweep time

Range: 10μs~600s (zero span)

Accuracy: ±2.00% (zero span)

Frequency readout accuracy

Frequency readout accuracy = ±(frequency readout× frequency reference error +2%× span +10%× resolution bandwidth)

Frequency span

Range: 100Hz~upper frequency limit of corresponding model or 0Hz

Accuracy: ±2.0%

Resolution bandwidth

1Hz~10MHz (1-3 times of stepping)

Video bandwidth

1Hz~10MHz (1-3 times of stepping)

SSB phase noise

(carrier 1GHz)

≤-102dBc/Hz@ frequency offset 10kHz

≤-106dBc/Hz@ frequency offset 100kHz

≤-111dBc/Hz@ frequency offset 1MHz

≤-123dBc/Hz@ frequency offset 10MHz

Displayed average noise level

Pre-amp off:

≤-138dBm(10MHz~4GHz)    ≤-135dBm(4GHz~6GHz)

≤-138dBm(6GHz~20GHz)    ≤-135dBm(20GHz~32GHz)

≤-127dBm(32GHz~40GHz)

Pre-amp on:

≤-157dBm(10MHz~4GHz)    ≤-152dBm(4GHz~6GHz)

≤-157dBm(6GHz~20GHz)     ≤-154dBm(20GHz~32GHz)

≤-148dBm(32GHz~40GHz)

Residual response

Pre-amp off:

≤-90dBm (10MHz~13GHz)     ≤-85dBm (13GHz~20GHz)

≤-80dBm (20GHz~44GHz)

Preamp on:

≤-100dBm (10MHz~32GHz)    ≤-95dBm (32GHz~44GHz)

(exceptional frequency: 1100MHz, 3200MHz)

Second harmonic distortion

<-60dBc (attenuation 0dB, -30dBm input signal)

Absolute amplitude accuracy

(20℃~30℃, 30 minutes of preheating)

±2.3dB (10MHz~40GHz)

Input attenuator

Attenuation range: 0dB~50dB, 10dB stepping

Maximum Continuous Input

+30dBm Peak typical(≥10dB attenuation)

+23dBm Peak typical(<10dB attenuation)

+13dBm Peak typical(Pre-amp = ON)

Reference level

Range: -120dBm~+30dBm

Conversion uncertainty: ±1.20dB

Battery power supply

About 2.5h

Dimension

314mm (W)×218mm (H)×91mm (D) (excluding handle, stand)

338mm(W)×218mm (H)×100mm (D) (excluding handle, stand)

Weight

About 5kg (excluding battery)

Working temperature

-10℃~+50℃

Storage temperature

-40℃~+70℃

Electromagnetic compatibility

Conforms to GJB3947A-2009 3.9.1 requirements

Power consumption

≤30W (no charging to the battery)

Test interface

4024D/E: N type connector

4024F/G: 2.4mm connector

Other interfaces

10MHz reference input/output: BNC female connector

External triggering input: BNC female connector

IF output: BNC female connector

GPS antenna input: BNC female connector
