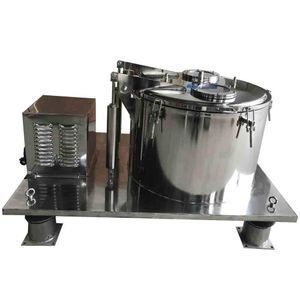

China Low Temperature Oil Ethanol Extraction Filter Centrifuge

Supplier: Nanjing Kingreat Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jimmy Gu
Price: $7500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Film wrapping+Wooden case fumigated for Low Temperature Oil Ethanol Extraction Filter Centrifuge;	Motor:	Explosion Proof;
MOC:	SS304 or 316 for optional;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Grade:	GMP;	Port:	Nanjing,Shanghai,Ningbo;
Surface inside and outside:	Polished;	Discharge type:	Top discharge, manual;
Application:	Biomass extraction centrifuge;	Supply Ability:	100 Set/Sets per Month Low Temperature Oil Ethanol Extraction Filter Centrifuge;
Base:	Platform with vibration absorber;	Operation:	Batch;
Classification:	Laboratory Centrifuge;	CIP system:	Optional;
Model Number:	PPTD;	Speed control:	Inverter (optional);
Brand Name:	Kingreat;

China Low Temperature Oil Ethanol Extraction Filter Centrifuge

Product Overviews

The PPTD centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.

Technical parameters

Model	Length (mm)	Width (mm)	Height (mm)	Power (kw)	Weight (kg)	Capacity (kg/hr)
PPTD-25	980	650	870	1.5	250	25
PPTD-50	1300	880	900	3	800	50
PPTD-135	1800	1200	1140	5.5	1300	135
PPTD-200	2050	1500	1220	7.5	2000	200
PPTD-300	2350	1650	1370	11	2500	300

Pictures

Standard features

·304 and 316L Sanitary Stainless Steel Construction

·Low temperature rating: -40c

·Reinforced Sight Glass

·Bi-Directional Agitation

·Auto/Manual Controls

·Digital HMI Interface

·Variable Speed Control

·Easy Material Loading/ Unloading

·Heavy-Duty Spin Drying

·No foundation required

Working Steps

1. System loading: A pre-loaded closed filter bag is placed into the basket

2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.

3. Fill: Alcohol is connected from source tank into the centrifuge.

4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations

5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.

6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.

7. System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.

8. Repeat Process.

Collection

1. Ex proof motor

2. PTFE Seals

3. Touch screen panel with PLC program

4. Inverter control box

5. On spot ex button

6. Closed type filter bags

7. Tri clamp fittings for feed and drain port

Our factory
