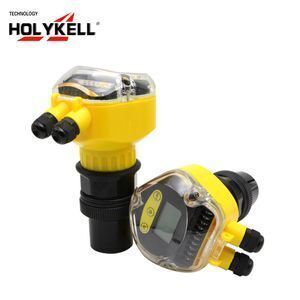

5m to 60m RS485/RS232 MODBUS RTU Water Depth Measurement Ultrasonic Water Level Meter

Click here to contact

Product details

Selling Units:	Single item;	Resolution:	3mm or 0.1%F.S (Max of them);
Place of Origin:	Hunan China;	Product:	High Accuracy Ultrasonic sensor distance 10 meter;
Model Number:	US8000;	Environment Temperature:	Meter: -20~+60℃ Sensor: -20~+80℃;
Single package size:	32X20X16 cm;	Accuracy:	0.25%-0.5%F.S;
Package Type:	standard export carton;	Communication:	RS485 Communications (optional);
Level Range:	5M, 10M, 15M, 20M, 30M, 50M;	Blind Zone:	0.2-0.6m;
Analog Output:	4~20mA; 1~5 V ; 0~5 V; 0~10 V;	Brand Name:	HOLYKELL;
Single gross weight:	2.5 KG;	Warranty:	12 monthes;
Water Proof:	Standard Type: IP66;

15M 20M Water Depth Measurement Ultrasonic Water Level Meter

Product Description

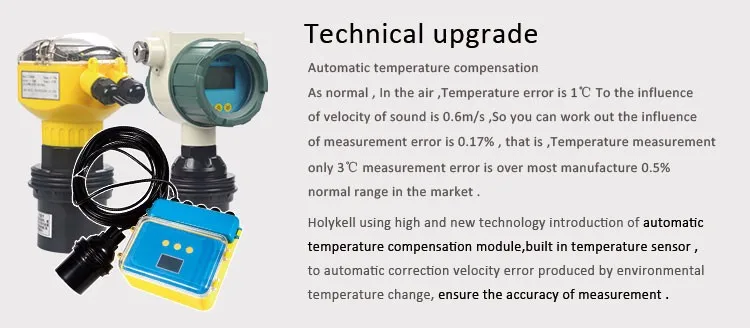

Technical Upgrade

Why Choose Our Ultrasonic Level Transmitter?

♦ Wide range, the max. range can reach 60m

♦ Humanized design, can be shown distance and level at the same time

♦ By echo gram can determine the cause of the problem

♦ High protection class

♦ Explosion proof type

♦ Various output types

♦ LCD display

♦ Cover with composite decking Explosion proof ,Anti-acid ,

Anti-acid base ,Anti-aging

Applications

» Sedimentation tank

» Sewage treatment

» Food industry(Winery, Granary etc)

» Electricity mining industry

» Petrochemical industry

What's the Specification of Ultrasonic Level Transmitter?

	Model	US8000 Integrative Type
	Level Range	5M, 10M, 12M.15M, 20M,30M, 50M.
	Analog Output Communication	4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) RS485 (standard), RS232
		1~5 V (3 wires);0~5 V (3 wires);0~10 V (3 wires)
	Relay/Alarm Output	AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire)

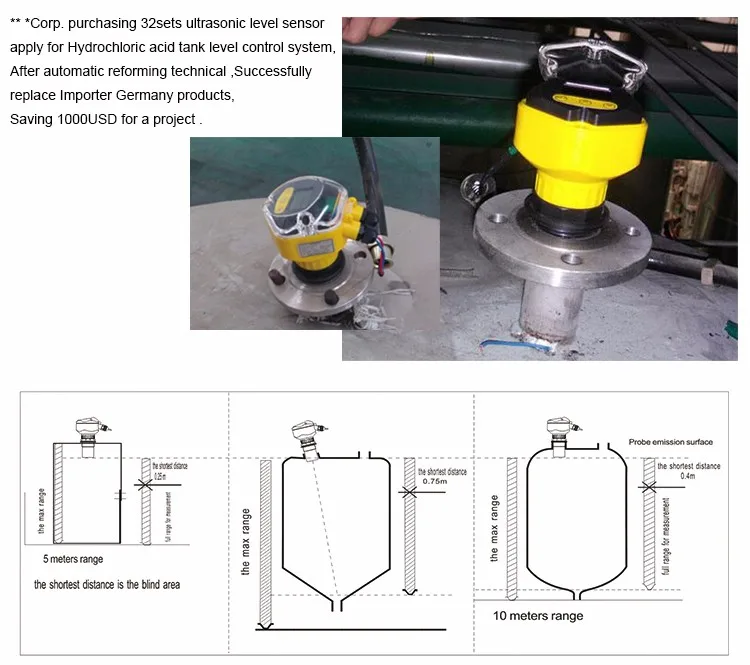

	Blind Zone	0.2-0.6m
	Resolution	3mm or 0.1%F.S (Max of them)
	Accuracy	0.25%-0.5%F.S
	Environment Temperature	Meter: -20~+60℃ Sensor: -20~+80℃

Model	US9000 Segregated Type
Level Range	5M, 10M, 12M.15M, 20M,30M,50M.70M
Analog Output Communication	4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) RS485 (standard), RS232
	1~5 V (3 wires);0~5 V (3 wires);0~10 V (3 wires)
Relay/Alarm Output	AC 250V/ 8A; DC 30V/ 5A;
Blind Zone	0.2-0.6m
Resolution	3mm or 0.1%F.S (Max of them)
Accuracy	0.25%-0.5%F.S
Environment Temperature	Meter: -20~+60℃ Sensor: -20~+80℃

	Model	UE2000 Integrative Type , Anti-explosion
	Level Range	5M, 10M, 12M.15M, 20M,30M, 50M.
	Analog Output Communication	4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) RS485 (standard), RS232
	Relay/Alarm Output	AC 250V/ 8A;DC 30V/ 5A;
	Blind Zone	0.2-0.6m
	Working Pressure	2 Bar (Explosion proof is 5 bar)
	Resolution	3mm or 0.1%F.S (Max of them)
	Accuracy	0.25%-0.5%F.S
	Environment Temperature	Meter: -20~+60℃ Sensor: -20~+80℃
