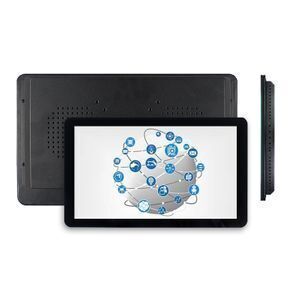

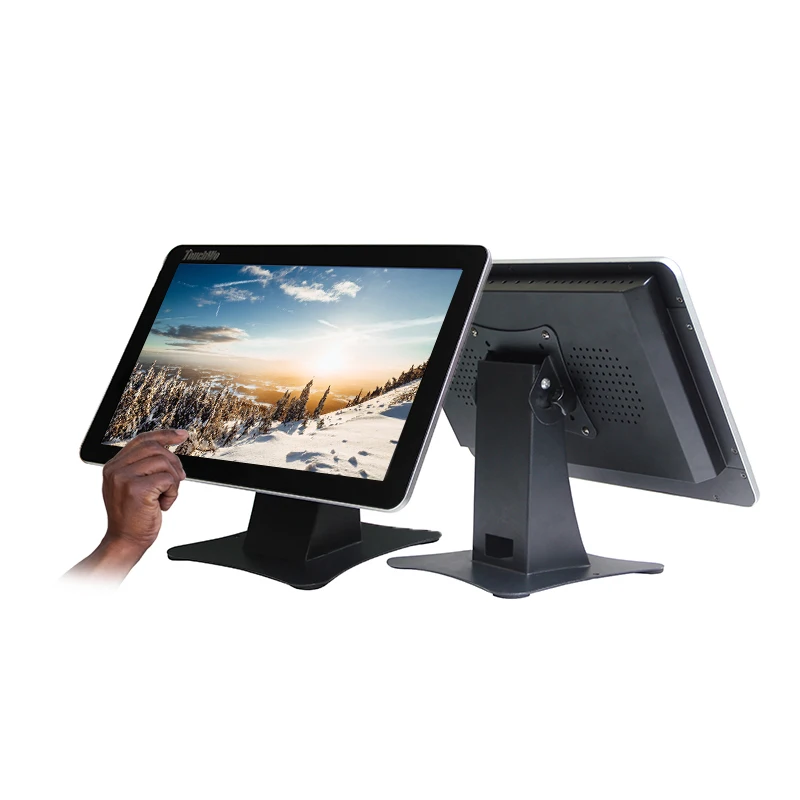

TouchWo 15.6 inch interactive tft lcd hmi touch screen monitor for kiosk/raspberry pi

Click here to contact

Product details

Shipment:	DHL/Sea shipping/Air shipping/Land transportation;	Brightness:	300cd/m2;
Place of Origin:	Guangdong China;	Selling Units:	Single item;
Color:	black/white/gold/customizable;	Products Status:	Stock;
Package Type:	carton box or wooden frame package;	Size:	15.6 inch;
Single package size:	52.5X31.5X10.5 cm;	touch screen type:	capacitive touchscreen;
Resolution:	1920*1080;	Touch points:	10 Points;
Interface Type:	D-Sub,DVI,USB;	Type:	Capacitive;
Certificates:	CE/FCC/RoHs/ISO9001/CCC;	Material:	Aluminum Alloy Frame;
Package Preview:	https://sc02.alicdn.com/kf/HTB1enJEByCYBuNkHFCcq6AHtVXaX.jpg_640x640.jpg;	Brand Name:	TouchWo/OEM;
Aspect Ratio:	16 : 9;	Touch interface:	USB Touch Interface;
Single gross weight:	4.5 KG;	Screen Size:	15.6";

Product Description

TouchWo 15.6 inch interactive tft lcd hmi touch screen monitor for kiosk/raspberry pi

10.1''/13.3"/15.6"/18.5"/21.5"/23.6"/27"/32"/42"/55"/65"/86''

touch screen display

10point touch 5ms response speed

Factory price ,excellent quality

MADE IN CHINA

TOUCHWO^®

Specification

PRODUCT PARAMETERS

1,Touch screen parameters
Touch screen type	Projected capacity touch screen
Response time	< 5ms
Touch points	Standard 10-point touch
Touch recognition	1.5mm(Finger, touch pen opaque objects)
Anti-light interference	Sunlight, incandescent, fluorescent and other light during normal use change
Surface hardness	Physical steel Mohs 7 explosion-proof glass
Operating System Compatibility	Windows 7/ Windows 8 / Windows XP / Linux /MAC OS /Android
Drive	Free drive, plug and play

2,LED screen parameters
Screen Type	LED backlight, A-type
Resolution	1920*1080
Brightness	≥ 300 cd
Contrast ratio	≥ 800:1
Response time	<3ms
Viewing angle	178 degrees horizontal,178 degrees vertical
Life time	50000 hours
