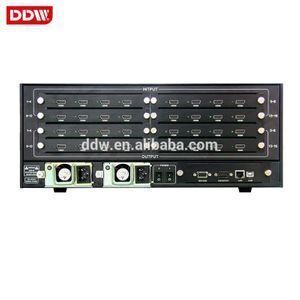

2x2 3x3 4x4 hdmi audio vga HD dp input signals 4k hd led lcd video wall splicing processor and controller for meeting room
-
Supplier: Shenzhen DDW Technology., Ltd. -
Region: Guangdong, China -
Contact: Mr Steven Cheung -
Price: $500.00 /unit -
Min. Order: 1 unit
| Place of Origin: | Guangdong China; | Maximum output Numbers: | 128; |
| Power: | 220v; | Product Name: | video wall processor; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Packaging Detail: | Wood pallet of 4x4 hdmi video wall controller; |
| Brand Name: | DDW; | Port: | Shenzhen,Hongkong; |
| Videowall controller color quality: | 32bit; | Roam,zoom,PIP: | Support; |
| Frame material: | Aluminum brushed; | Supply Ability: | 1000 Unit/Units per Month; |
| Control method: | RS232,IP; | Model Number: | DDW-VPH0909; |
| Input output signal sources: | HDMI,DVI,VGA,AV,YPBPR,IP; | Max PIP per screen: | 1,4,16,customization; |
| Output resolution: | 1920x1080; | Maximum input Numbers: | 128; |
2x2 3x3 4x4 hdmi audio vga HD dp input signals 4k hd led lcd video wall splicing processor and controller for meeting room
| Parameters | ||
| Professional video wall controller Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) | HDMI/DVI/VGA/AV/YPbPr | |
| Input resolution | 1024x768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter) | |
| Output resolution | Up to 1920*1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365*7*24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024*768/60HZ-1920*1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |

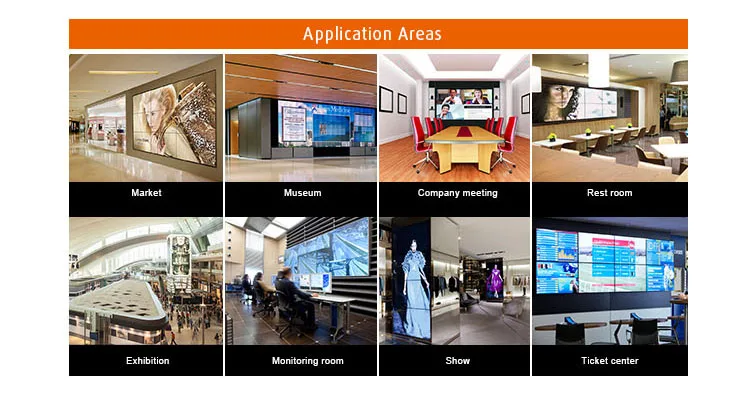

| Professional video wall controller can be widely used for: monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems. | ||
1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
2. Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.
7.Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
8.Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or skype me,i will reply you ASAP
-
