Catalyst: | YES; | Spare Parts Type: | laser tube; |
After Warranty Service: | Online support; | Local Service Location: | None; |
Maximum power(W): | 45W; | cooling type: | Water cooling with protection system; |
Name: | 40W Laser Tube; | Selling Units: | Single item; |
Length (mm): | 700mm; | Brand Name: | RUICI; |
Showroom Location: | Brazil,Mexico; | Applicable Industries: | Laser equipment; |
Outer diameter(mm): | 50mm; | Key Selling Points: | Competitive Price; |
Warranty: | 6 Months; | Output power (W): | 40W; |
Place of Origin: | Shandong China; | Single gross weight: | 12 KG; |
Warranty: | 6 Months; | Package Type: | 40w laser tube packing: Standard export Carton packaging; |
Package Preview: | https://sc01.alicdn.com/kf/HTB1tbYkaUKF3KVjSZFEq6xExFXaD.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1G4DqaRCw3KVjSZFlq6AJkFXap.jpg_640x640.jpg; | Weight (KG): | 3 KG; |
Working life (hours): | 4000-6000; | Single package size: | 102X31X21 cm; |
Model Number: | R-40; | After-sales Service Provided: | Online support; |

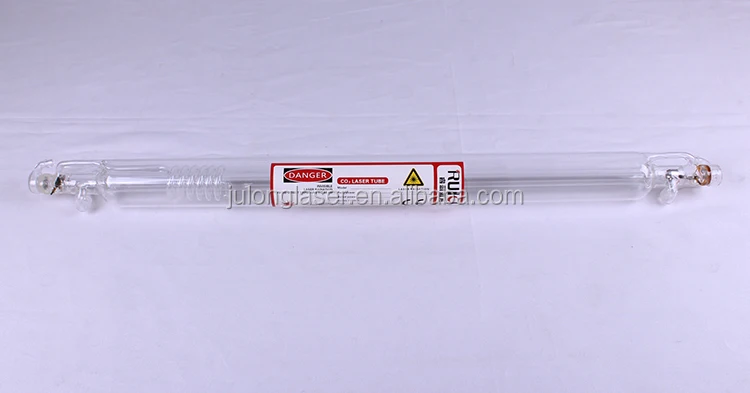

Factory Price 700mm 40W CO2 RUICI Laser Tube
1. Mold formed cooling water jacket, the first in the industry!-- the 90-degree connecting pipe of the cooling water jacket is formed with a mold to form the silicone pipe. The water flow rate is higher, the cooling effect is more significant, and the power reduction is avoided.

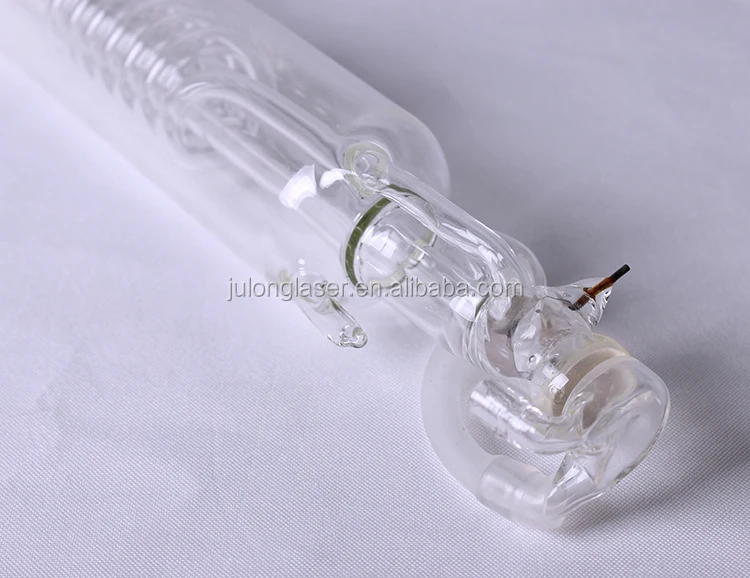

2.Ceramic, more stable!-- the high pressure end adopts mold shaped ceramic cooling water jacket. Compared with the hand-made hard glass cap, it has standardized shape, faster heat dissipation, longer durability and more stable and reliable performance.

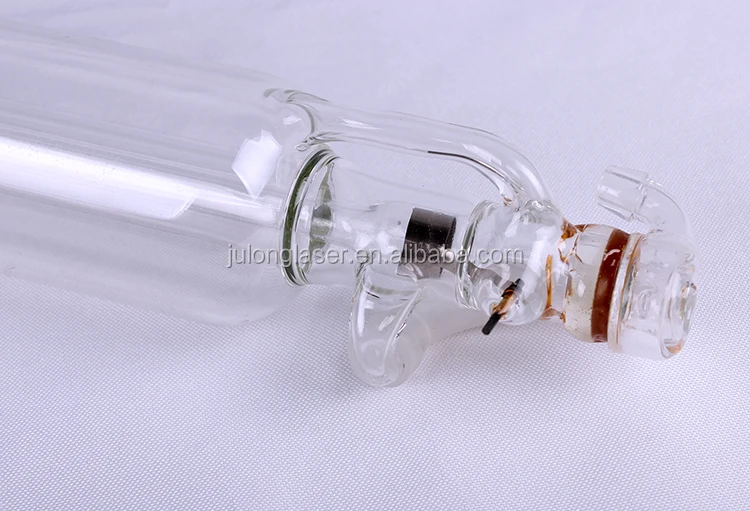

3. Electrode connection, customized!-- special customized electrode connection mode ensures that the electrode is not falsely connected and does not fall off, so as to avoid glass cracking and leakage of laser tube
4.Electrodes, high precision!-- standardized cathode processed by numerical control equipment, high-precision anode formed by die stamping, more stable heat dissipation and discharge, and double guarantee of ultra-long life and ultra-stable power of laser tube
5. Electrode surface, special coating!-- special metal coating is adopted for electrode surface treatment, completely eliminating electromagnetic sputtering and lens pollution, and effectively extending the service life of laser tube
6. Excellent beam mode -- the classic series has low starting current, mature and stable production technology, stable output power, excellent beam mode, and longer service life than similar products
Model | Length (mm) | Outer diameter (mm) | Output power (W) | Maximum power (W) | Operating Current (mA) | Catalyst | Working life (hours) | Warranty |
R-30 | 600 | 50 | 30 | 30 | 18 | NO | 4000 | 6 Months |
R-40 | 700 | 50 | 40 | 45 | 18 | NO | 4000 | 6 Months |
R-50 | 800 | 50 | 50 | 55 | 20 | NO | 4000 | 6 Months |
R-60 | 1250 | 50 | 60 | 90 | 20 | YES | 6000 | 6 Months |
C-60 | 950 | 80 | 60 | 65 | 20 | YES | 6000 | 6 Months |
C-80 | 1250 | 80 | 80 | 102 | 30 | YES | 8000 | 12 Months |
C-100 | 1450 | 80 | 100 | 123 | 30 | YES | 8000 | 12 Months |
C-130 | 1650 | 80 | 130 | 150 | 30 | YES | 8000 | 12 Months |
C-150 | 1850 | 80 | 150 | 165 | 30 | YES | 8000 | 12 Months |
We solemnly promise that we will replace the new laser tube free of charge if any quality problem occurs during the warranty period.During the period, one-way freight shall be borne by the user.It is not responsible when the laser structure is damaged or changed.
Q:In case of quality problem of laser tube, contact customer service before and after sales to provide the content
A:(1) the label, tube number and delivery date of the laser tube can be provided in picture or video.
(2) the text description of the fault of the laser tube requires recording the video of the laser tube at work to clearly show the color of the light path inside the laser tube and the current state at work.
(3) if the failure of the laser tube cannot be confirmed through pictures and video, the customer shall return the laser tube to our company for testing. If the quality problem of the laser tube is confirmed, our company shall replace a new laser tube and return it to the customer
Q:If the laser cutting machine does not reach the cutting depth, low power situation what to do?
A:Firstly, metering spot can be detected at one end of the output mirror of the laser tube (without passing through the reflector). If the spot is abnormal, the whole tube can be returned to the factory for maintenance.If the spot is normal, it is not a problem with the laser tube. It is recommended to check whether the reflector and focus lens are contaminated.The pipe number and delivery date shall be provided for the whole pipe to be returned to the factory for maintenance, and whether the output window mirror is intact and pollution-free shall be confirmed.
Q:How to deal with positive high voltage end spark?
A:From June to August every year, due to the hot weather and continuous rain in the south, the air humidity is high and high-pressure ignition occurs. According to the experience, the customer is advised to refer to the following pictures for high-pressure protection in summer to ensure that the customer's equipment can work normally. If the fire at the positive high-pressure end is serious, the whole pipe needs to be returned to the factory for maintenance.
