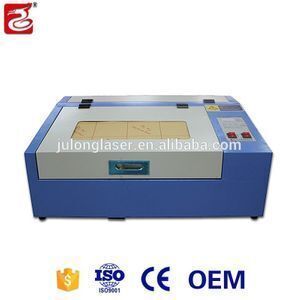

3020 Portable fiber glass screen protector making machine

Product details
Cooling Mode:Water Cooling;Applicable Material:Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood;
Cutting Thickness:0-3mm;Laser machine:Laser engraving machine/Laser cutting machine/Laser stamp machine;
Machine parts:Water pump, Air pump, Smoke pipe, Exhaust fan;Brand Name:Julong;
Delivery Detail:Shipped in 5 days after payment;Graphic Format Supported:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;
Laser Type:CO2;Cutting Area:300*200mm;
Certification:CE,ISO;Cutting Speed:0-200mm/s;
Model Number:JL-K3020;Packaging Detail:Export standard packing(Thickening of the wooden cases);
Condition:New;Payment Terms:T/T,Western Union,Alibaba online payment;
Supply Ability:3000 Set/Sets per Month;After-sales Service Provided:No overseas service provided;
Application:Laser Cutting;Software Supported:CorelLASER, LaserDRW, WinsealXP, CorelDRAW X4 SP2;
Port:Any port in China;Location way:Red light positioning;
Control Software:CorelDraw;CNC or Not:No;
Accessory bag:Manual book, Software CD, USB line, Power line, USB-KEY;Place of Origin:Shandong China (Mainland);
Laser power:40W;Color:Blue and white;
Working table:Fixed worktable, up&down worktable(optional);

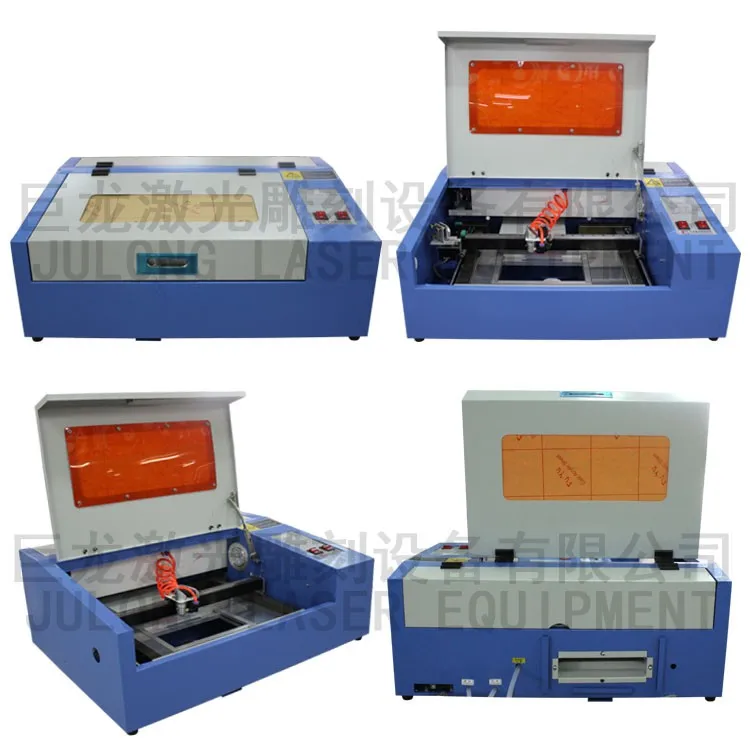

Product Show
Product Parameter
Model
JL-K3020
Power supply
AC110V/220V±5% 50/60HZ
Total power
≤200W
Laser type
CO2
Laser power
40W
Tube trigger Volt
20KV
Tube operating Volt
15KV
Maximum working area
300*200mm
Worktable material
Aluminum platform
Working speed
0-500mm/s (adjustable)
Location precision
±0.1mm
Min. shaping character
1mm*1mm
Motor system
Stepper motor system
Cooling way
Water cooling
Operating temperature
5-40(℃)
Humidity
0-95%(RH)
Lighting system
LED light with high-brightness
Certification
CE, ISO9001
Color
Blue and white
Accessory bag
Manual book, Software CD, USB line, Power line, USB-Key
Machine parts
Water pump, Smoke pipe, Exhaust fan
Optional parts
Up and down platform, red light positioning, blowing and air pump
Support software and Graphic Format
Core LASER/ Laser DRW/ Win seal XP/ Core DRAW X4 SP2 can identify
Dimension(L*W*H)
670*500*220mm

Applicable materials:

Nonmetal materials such as acrylic, double color board, plexiglas, common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.

Applicable industries:

Advertising industry, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.

Related products

JL-K4030

Linear guide rail

Working area: 40*30(cm)

Laser power: 40W/ 50W

JL-K5030

Linear guide rail

Working area: 40*30(cm)

Laser power: 40W/ 50W

JL-K4040

Linear guide rail

Working area: 40*40(cm)

Laser power: 40W/ 50W

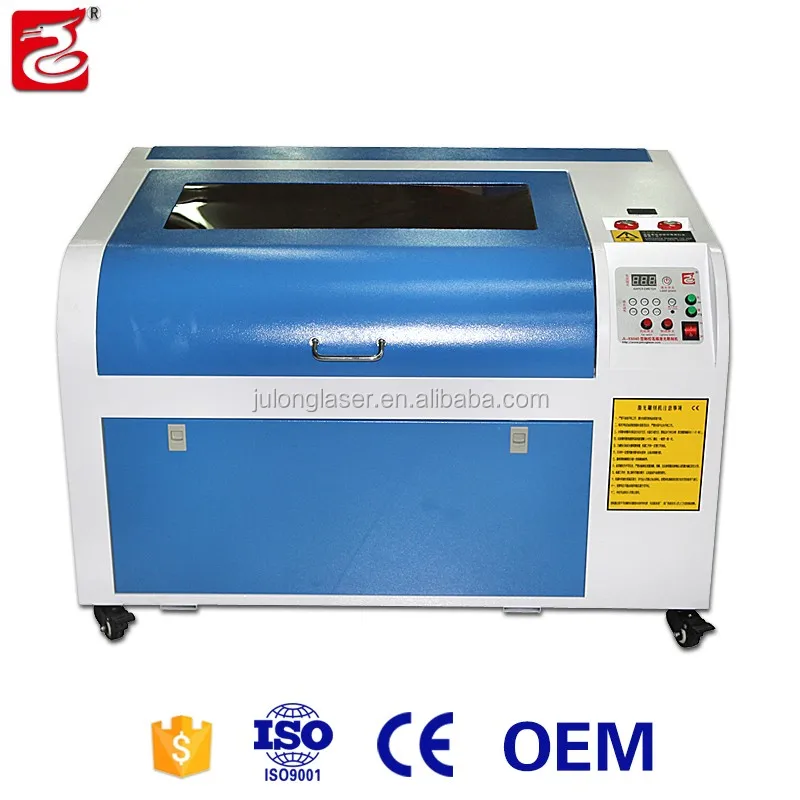

JL-K6040

Linear guide rail

Working area: 60*40(cm)

Laser power: 40W-130W

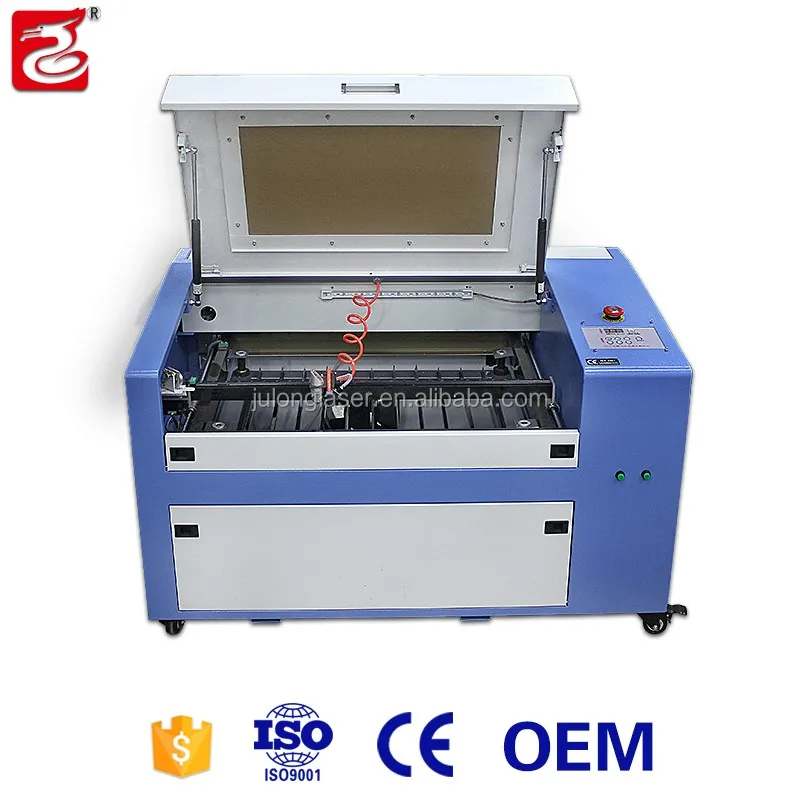

JL-K9060

Linear guide rail

Working area: 90*60(cm)

Laser power: 60W-130W

JL-K1390

Professional Ruida off-line

Working area: 130*90(cm)

Laser power: 80W-150W

Samples Show
Our Company

Liaocheng Julong Laser Equipment Co., Ltd

We are professional largescale laser equipment R&D and trading manufacturer.
We stick to our enterprise spirit of "Customer First, Quality First and Reputation First".
Our business concept is "to win the market with advanced technology, high quality products and good service".
Our Service goal is "Whatever our customers need is what we need to strive for."

Our Certifications
Packing & Shipping

Packing List :

Machine parts
Tools bag
Name
Amout
Units
Name
Amout
Units
Water pump
1
PC
Power line
1
PC
Smoke pipe
1
PC
USB line
1
PC
Exhaust fan
1
PC
Software CD
1
PC
Tool bag
1
PC
Instruction book
1
PC
USB-Key
1
PC
Focusing scale
1
PC
More parts can provide to you as your request.

Packing material :

Wooden case and carton with foam inside

Shipping :

Ship out in 3-7 day after payment confirmed.

Contact Us

If you want to know whether the machine can work on your material, please let us know the following information:
1. What materials do you want to engrave or cut?
2. What's the max. size of the materials? (Length*Width*Thickness)
3. We can recommend one for you, or we can customize according to your requirements.

We are also finding overseas distributor of our co2 laser engraving / cutting machine.

If you are interested in our machine, please contact me anytime.
