Voiern 20w 30w 50w 3d fiber laser engraving machine EZCAD JPT RAYCUS dual red dot fiber laser metal marking machine

Product details
Applicable industries:Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, household, retail, food stores, print shops, construction projects, energy and mining, food and beverage stores, advertising agenciesSupported graphic formats:AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser source brand:JPT, Raycus, MAXPlace of origin:Shandong Province, China
Applicable materials:Crystal, acrylic, glass, leather, MDF, metal, paper, plastic, plexiglass, plywood, rubber, stone, woodcooling method:air cooling
controlling software:Easy cardFunction:Cutting and engraving non-metallic materials
Certification:EU CE, ISOWhether CNC:Yes
Cutting thickness:1-2mmAfter-sales service provided:Online support, video technical support
Video outbound inspection:ifControl System:Easy ZCAD
product name:Fiber laser marking machinePost-warranty service:Video technical support, online support, spare parts
Supply capacity:300 sets per monthPackaging details:plywood
Control system brand:EZ-Link CardShowroom location:not any
Warranty:2 yearsMain selling points:High precision, easy operation and high efficiency
application:laser cuttingMarketing type:2020 new products
Weight (kg):45kgPackage preview:
Cutting speed:1--3000mm/secondCore components:Motor, engine, PLC
Health status:newCutting area:70*70--300*300mm
Local service location:not anyMechanical test report:if
Core component warranty:2 yearsbrand:Woin
Laser type:fiber-optic laserpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Product Description

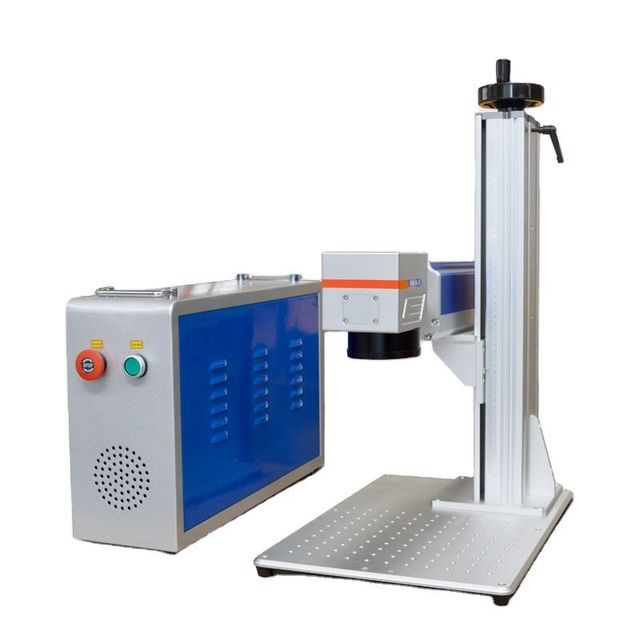

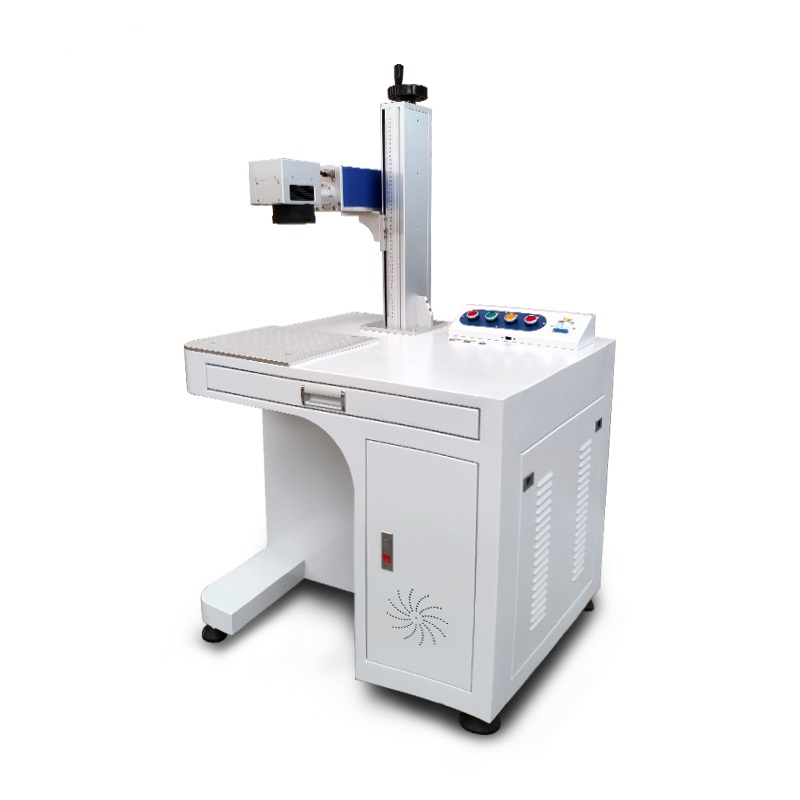

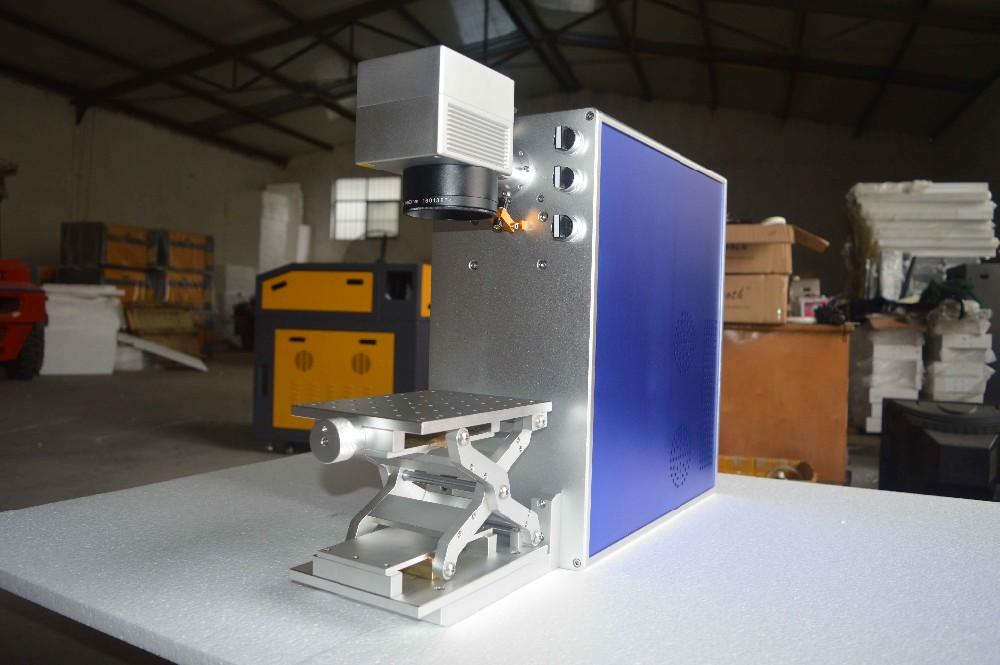

Our products can be selected according to the customer's work needs.You can choose from portable, split or cabinet models. If you need more details, please contact us!
main feature
1) Non-contact marking: Laser marking uses a non-mechanical "knife" for processing, which can mark any regular or irregular printing surface, and mark the workpiece without applying stress, ensuring that the workpiece is accuracy. There is no corrosion on the working surface, no "tool" wear, no poison, no pollution.
2). Permanent: The mark will not fade due to environmental factors such as contact, acidic and reducing gases, high temperature, low temperature, etc.
3). High engraving precision: The items engraved by the laser marking machine have fine lines, with a minimum line width of up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the need to print large amounts of data on the smallest plastic parts. For example, we can print 2D barcodes with higher precision and clarity, which are more competitive in the market than hot stamping.
4). Low operating cost: The marking speed is fast, the mark is formed quickly, and the energy consumption is small, so the operating cost is low. Although laser marking machines require more equipment investment initially than traditional marking equipment, in the long run the operating costs are much lower and the service life is longer.
5). High efficiency: The laser beam is controlled by a computer and can move at high speed (5~7 meters per second), and the marking process can be completed in a few seconds.
6). Anti-counterfeiting: Using laser marking technology, the engraved marks are not easy to be imitated and changed, and have a good anti-counterfeiting effect to a certain extent.

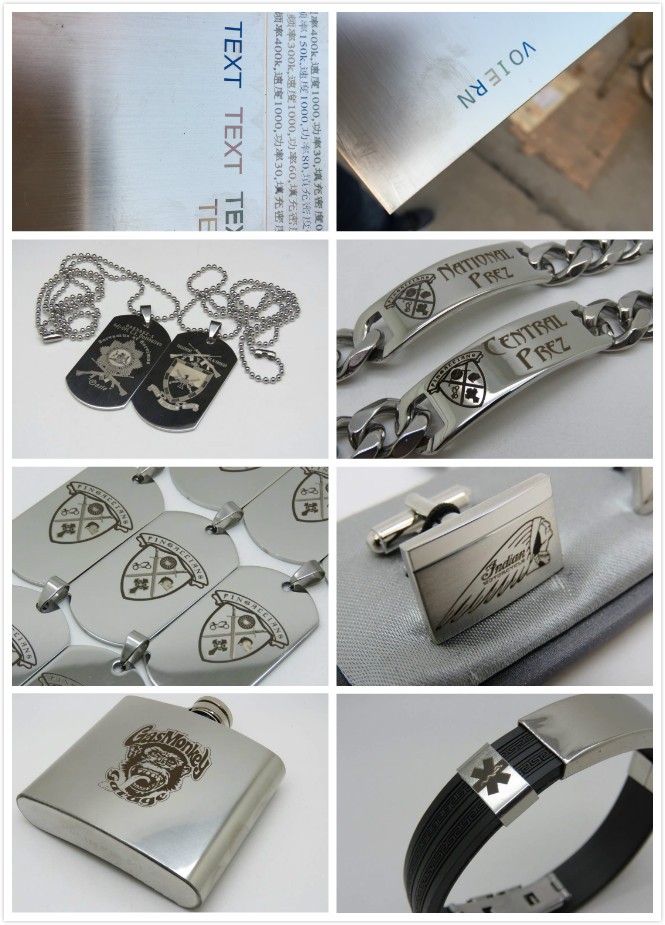

  • Engraving effect

Our products have a wide range of applications and are well-carved.
detailed image
The main components of our products are made of high-quality industrial-grade accessories.

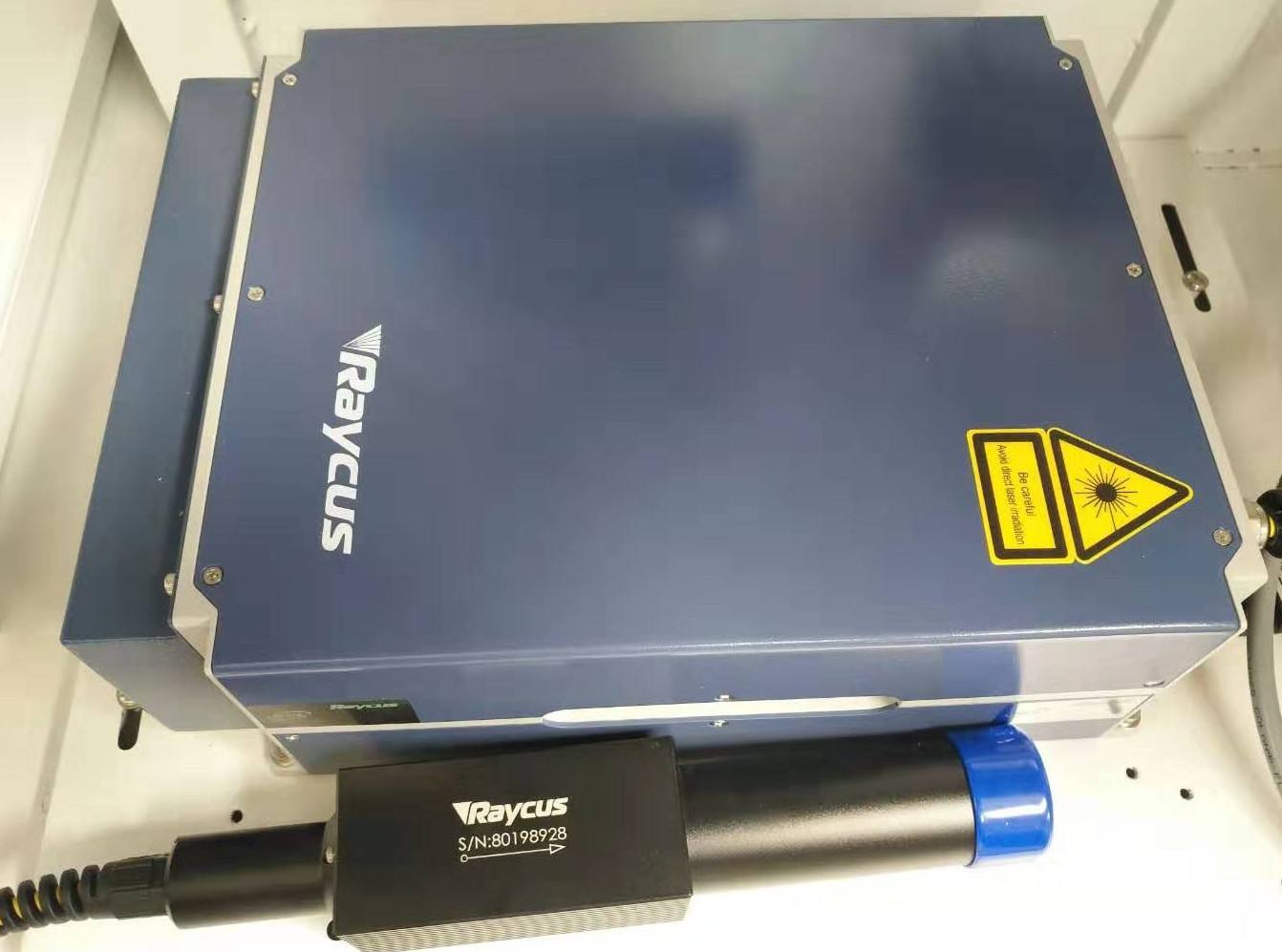

1-Laser source
We use the RAYCUS famous brand laser source as the laser source, which has high stability, long life and no consumables. This is a key part of the fiber laser marking machine.

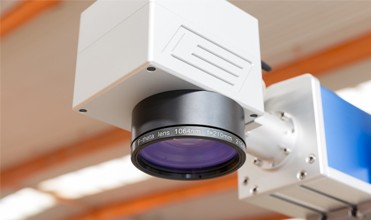

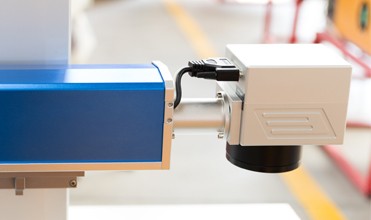

2-Vibration lens
The high-speed galvanometer scanning head adopts scanning laboratory technology, digital signals, and high precision.

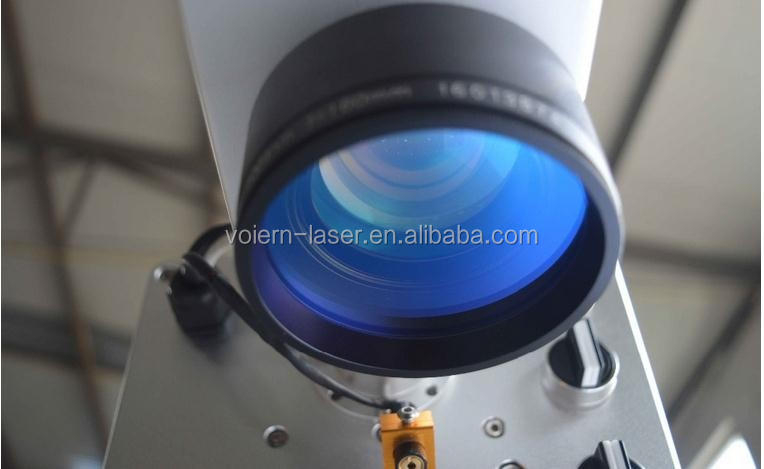

3-Ftheta lens
Smart f theta lens, working area 110*110,200 * 200,300 x 300(mm)
The fiber laser beam is focused onto the workpiece surface, so the energy is sufficient. This optical accessory controls the marking area. Using high-performance photoelectric digital mirror, excellent performance

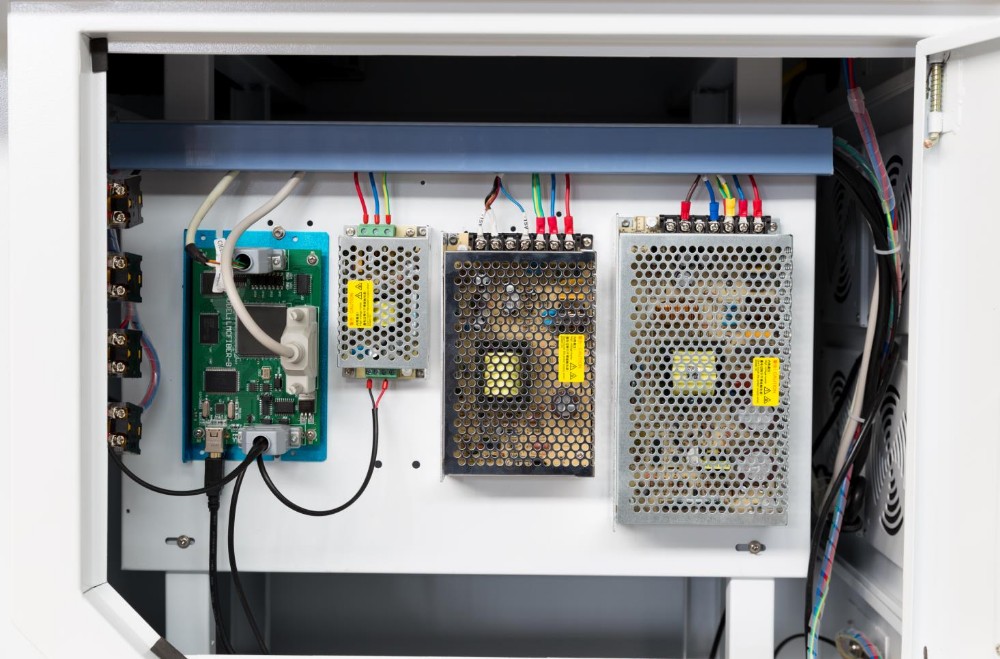

4-EZCAD control card.
Famous brand directional EZCAD control system, easy to operate. Humanized operating system makes it easy to adjust laser power, frequency, and marking speed. Compatible with commonly used vector graphics (AI, DXF, DWG, PLT, etc.) Compatible with commonly used graphic formats (BMP, JPG, JIF...etc.) barcodes, QR codes, serial numbers, scribing, rotation marking and other complex processing. Additional red light indication for easy alignment and analog marking.
Optional accessories

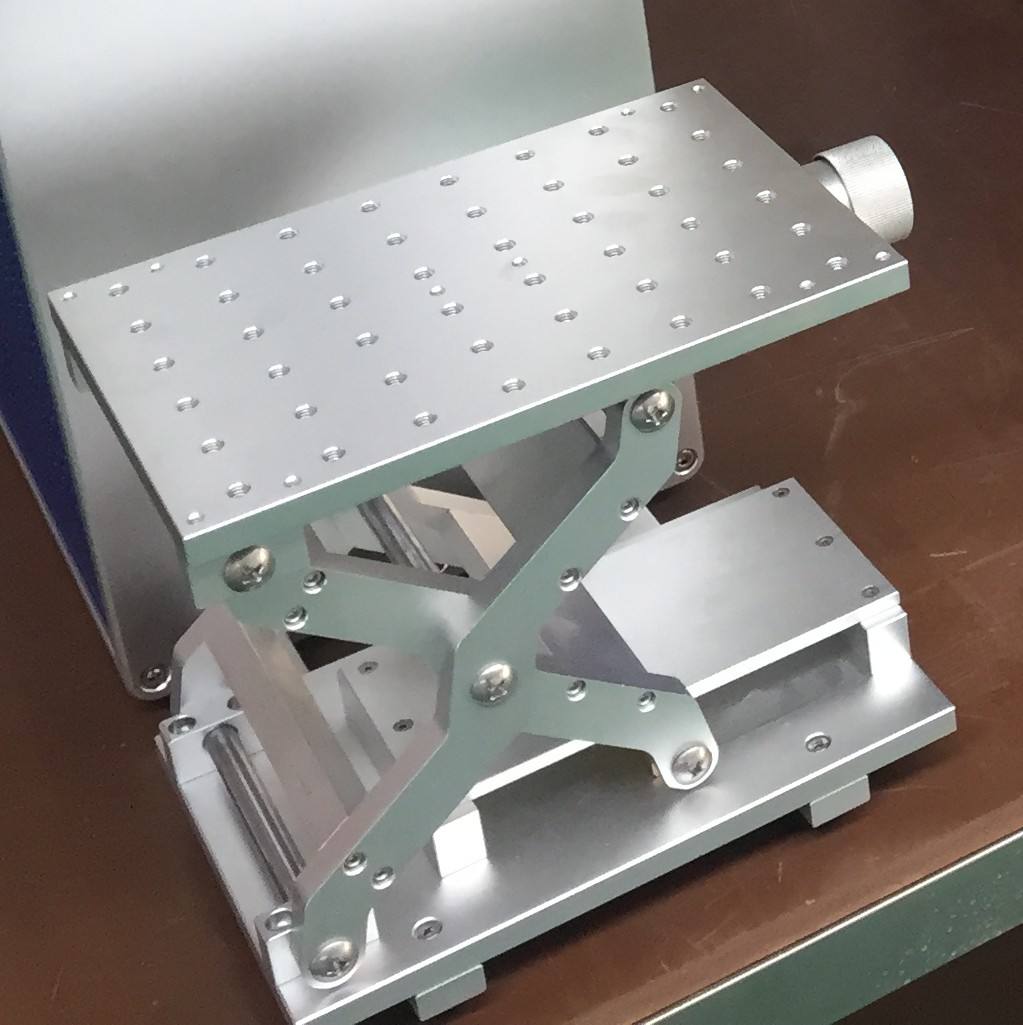

Lifting platform
The height can be adjusted according to the size of the engraving items to achieve the best engraving effect.

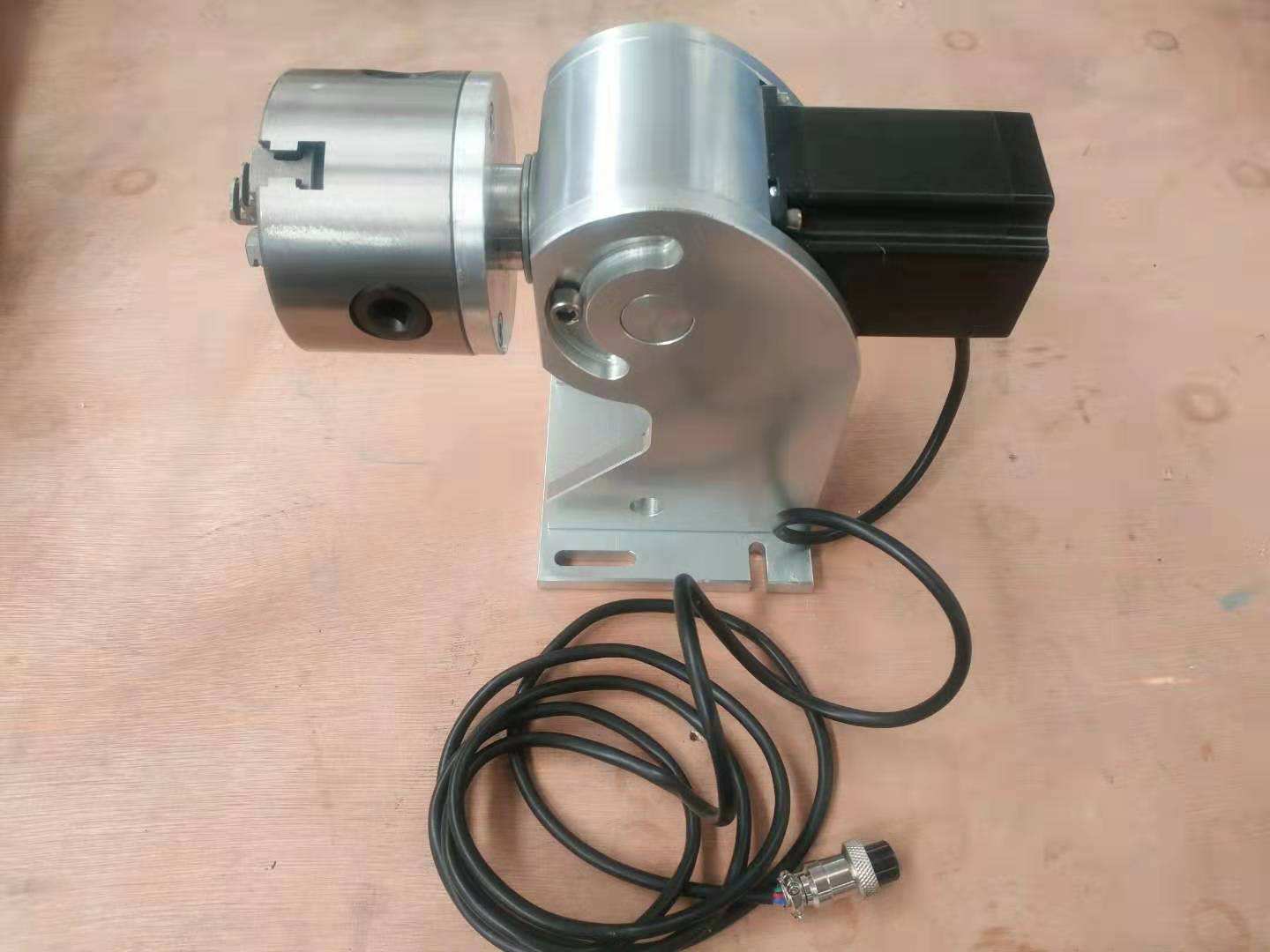

Standard rotation
Standard rotation is used for engraving round and irregular objects.
