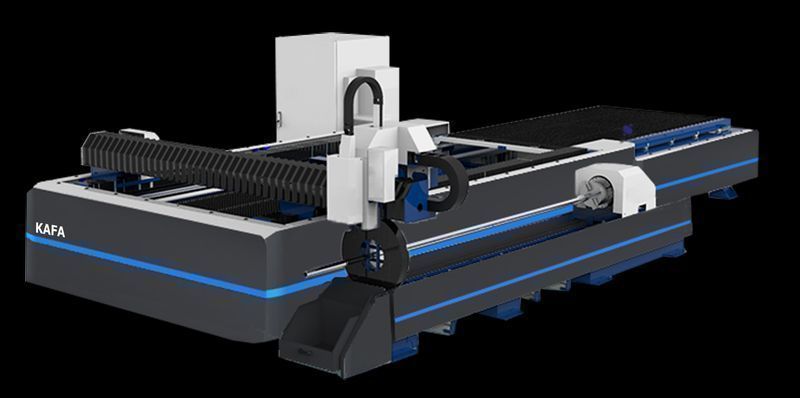

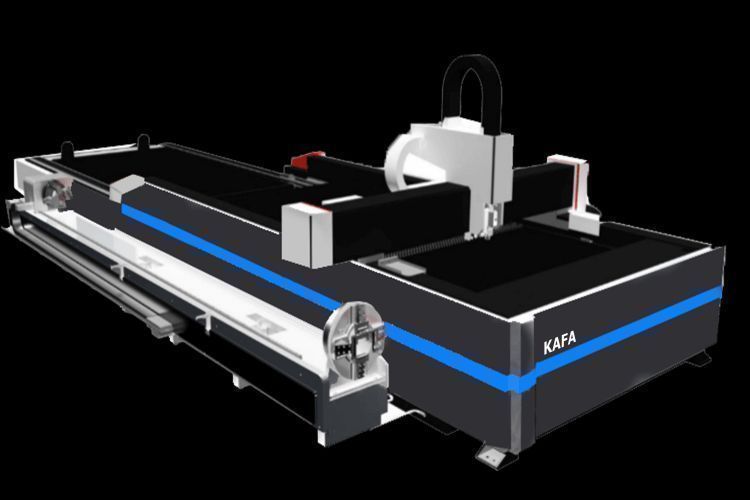

Metal sheet & tube laser cutting machines GE-T Series

Supplier: Shanghai KAFA Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr mr. meng
Price: $33000.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

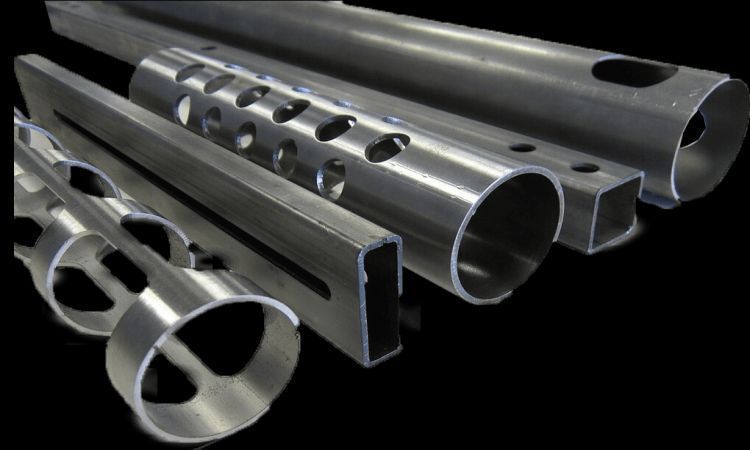

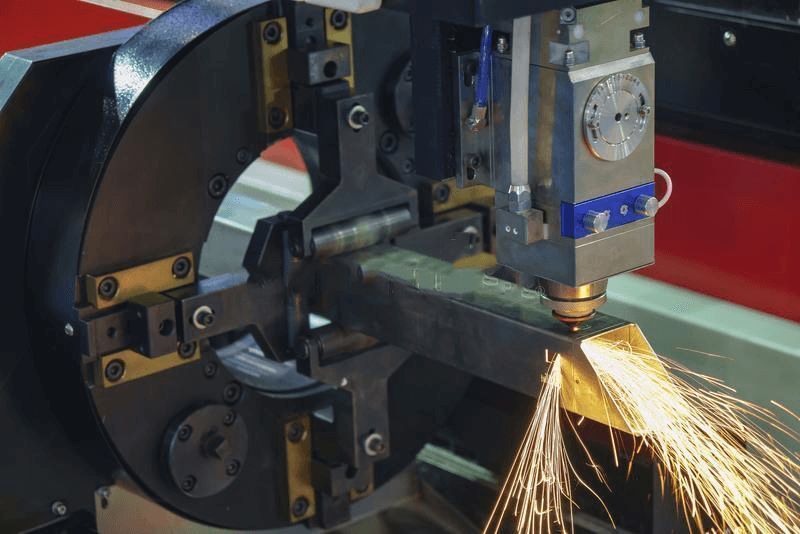

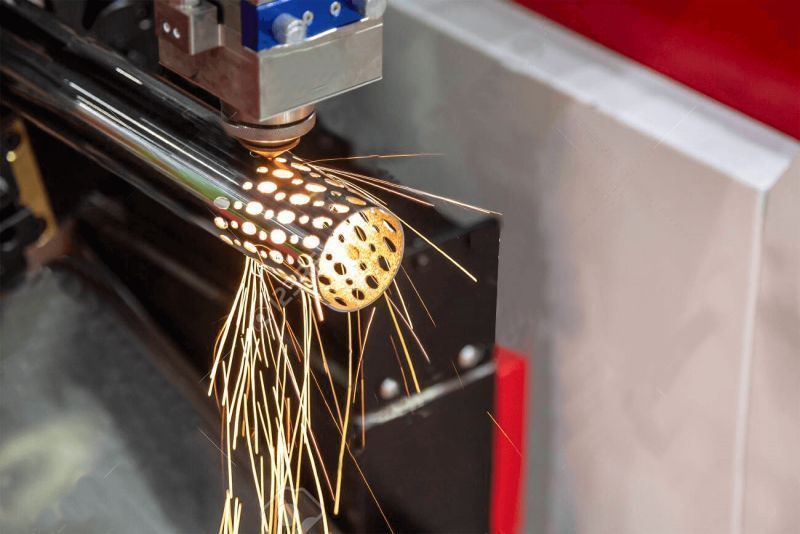

Kafa GE-T Serise is a fiber laser cutting machine for Aluminum, Carbon Steel Sheet, Stainless Steel Sheet laser cutter with cheapest price on dynamic functionality. Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in carbon steel, stainless steel, galvanized sheet, steel, rare metal various alloy plate and other materials.

Laser Cutter Equipment Main Configuration:

Name	Origin and Manufacturer name
Special laser cutting head (auto focus)	RAYTOOLS
Cutting machine bed (steel plate welding)	Self-produced
Beam	Integrated Cast Aluminum
Guide	Taiwan HIWIN
Reducer	Japanese Ximpo
Gear, rack	Taiwan K.H/Germany Herion
Servo motor and driver	Japan Panasonic/YASKWA
Control Cabinet	Self-Produced
Low-voltage electrical appliances	Chint/France Schneider
Origin, limit switch	Swiss Carole
Cable	Flexible Shielded cable
Transformer	Shenzhen Xinbei Ocean
IPC	Taiwan Advantech
CNC system (including control software, height controller)	Cyp Cut
Oil Road	Electric oil pump
Gas circuit (proportional valve)	NNT
Chiller	Han Li

Main Technical Parameters of Fiber Laser Cutting Machine:

Device Model	KAFA GE-T Series
Laser Cutter Type	Fiber-optic laser
CNC laser Cutter Wavelength	1064nm
Rated output power	2000W
Beam quality	<0.373mrad
X axis travel	3020mm
Y axis travel	1520mm
Z axis travel	100mm
Effective Cutting Range	3000*1500m
Workbench axial positioning accuracy	<+0.05mm/m
Worktable repeat positioning accuracy	<+0.02mm/m
Maximum empty speed	60m/min
Workbench Maximum load	200KG
Phase	3
Power supply rated voltage	380
Frequency	50Hz
Total power protection level	IP54

Chain Drive, 30s Exchange, No. 1 In The Industry

Dual automatic exchange platform system

Fast exchange of two tables makes it more efficient. Chain-drive mechanical system delivers improved rigidity and higher accuracy, saving feeding time, making operation more efficient. Maximum exchange speed is 30 seconds.

Automatic Obstacle Detection And Avoidance

Intelligent Anti-Collision

360 Degree radar system detects obstacle in advance. To avoid collision, high-speed motion of Z-axis is activated

Efficient, Economical

Minimizes the damage rate of laser head, reducing maintenance cost and depreciation of the machine. Avoid production halt due to collisions, ensuring uninterrupted production.

Automatic Nozzle Changer

Accurate control system helps replace the nozzles automatically according to the material and thickness

Reliable replacement precision and stability is provided by high-precision drive system

Latest automatic calibration and cleaning functions avail fully automatic laser head calibration and nozzle cleaning that reduces manual labour.

Fully protective enclosure of this machine assures the safety performance of parts and operator’s safety

Auto Focus Laser Head

Auto Focus

Applicable to multiple focal lengths, automatic adjustable focal point while cutting process according to the thickness

Free

Operating system controls the focal length, no manual work, low percentage of error

Fast

90% working time reduced by adopting KAFA lightning perforation technology. Auto focus laser head scans system storage parameters automatically when metal sheet is changed. This offers perfect cutting with less gas and electricity consumption, low cost and high efficiency

Accurate

To enhance accuracy, perforation focal length and cutting focal length is set with respect to each other

Durable

Built in double water cooling structure keeps the temperature of the collimating and focusing components constant, prevents over heating of the lenses and deliver prolonged service life of the lenses

Touch Control Panel

Touch Screen With Dual HD Cameras

UI Design In The Display Responds To Processing Table, Making Processing More Intuitive.

Waterproof Breathable System

Auxiliary Gas Low Pressure Alarm Function

Real-time gas pressure detection system Verifying abnormal information Cutting effect is ensured Prompt gas replacement system

WIFI

Contorl

Intelligent Wi-Fi Remote Assistance

Global Real-Time Feedback Service Provides Fault Analysis And Troubleshooting Instantly

Appearance design

Aesthetics was introduced to industrial ID, perfect combination of technology and asthetics.

The z-axis cover is newly designed using injection molding to make it light-weight (1/10 of previous design). Since weight is reduced, it can achieve maximum acceleration. The cover is anti-flammable. High-pressure cast aluminum cantilever makes the structure stronger, providing a long-lasting shape. The ice blue light shows processing feedback directly.

Matched with High-End CNC System to assure precision control

Functions

The heavy-weight bed makes the machine more stable while working, the ultra-light crossbeam makes it work faster; high quality electrical software control system gives higher accuracy. The machine assures comfortable operation, stable performance, durability and cutting efficiency.

Auxiliary feeding mechanism

Intelligent travel protection

Automatic lubrication system

Safety module

Intelligent alarm system
