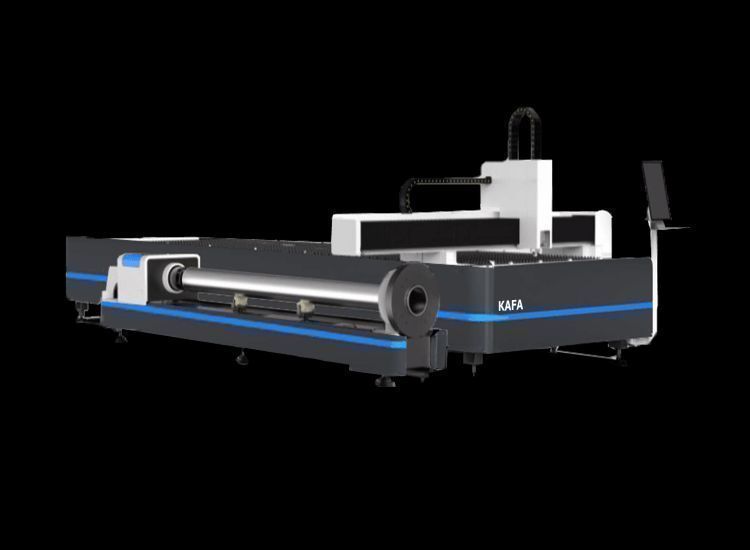

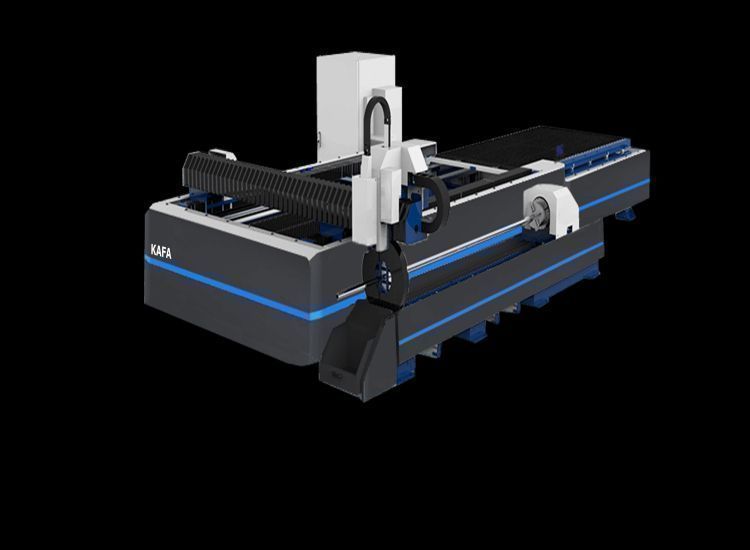

Metal sheet & tube laser cutting machine KAFA G-T Series

Supplier: Shanghai KAFA Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr mr. meng
Price: $28000.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Kafa G-T Serise is a fiber laser cutting machine for Aluminum, Carbon Steel Sheet, Stainless Steel Sheet laser cutter with cheapest price on dynamic functionality. Specialized fast speed cutting of a variety of metal plates, pipes(add pipe cutting device), mainly used in carbon steel, stainless steel, galvanized sheet, steel, rare metal various alloy plate and other materials.

Laser Cutter Equipment Main Configuration:

Name	Origin and Manufacturer name
Special laser cutting head (auto focus)	RAYTOOLS
Cutting machine bed (steel plate welding)	Self-produced
Beam	Integrated Cast Aluminum
Guide	Taiwan HIWIN
Reducer	Japanese Ximpo
Gear, rack	Taiwan K.H/Germany Herion
Servo motor and driver	Japan Panasonic/YASKWA
Control Cabinet	Self-Produced
Low-voltage electrical appliances	Chint/France Schneider
Origin, limit switch	Swiss Carole
Cable	Flexible Shielded cable
Transformer	Shenzhen Xinbei Ocean
IPC	Taiwan Advantech
CNC system (including control software, height controller)	Cyp Cut
Oil Road	Electric oil pump
Gas circuit (proportional valve)	NNT
Chiller	Han Li

Stretched Aluminum Beam

Tenon-and-Mortise Joint infra-structure

Dual Automatic Centering Electric Chucks

Controler

Main Technical Parameters of Fiber Laser Cutting Machine

Device Model	KAFA G-T Series
Laser Cutter Type	Fiber-optic laser
CNC laser Cutter Wavelength	1064nm
Rated output power	2000W
Beam quality	<0.373mrad
X axis travel	3020mm
Y axis travel	1520mm
Z axis travel	100mm
Effective Cutting Range	3000*1500m
positioning accuracy	<+0.05mm/m
repeat positioning accuracy	<+0.02mm/m
Maximum empty speed	60m/min
Workbench Maximum load	200KG
Phase	3
Power supply rated voltage	380
Frequency	50Hz
Total power protection level	IP54
Big safety cover	Optional
