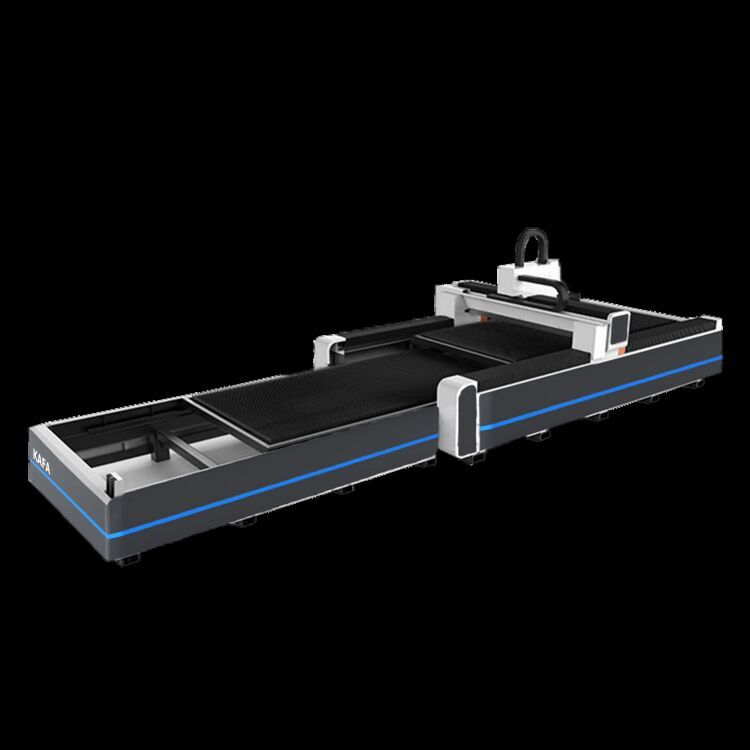

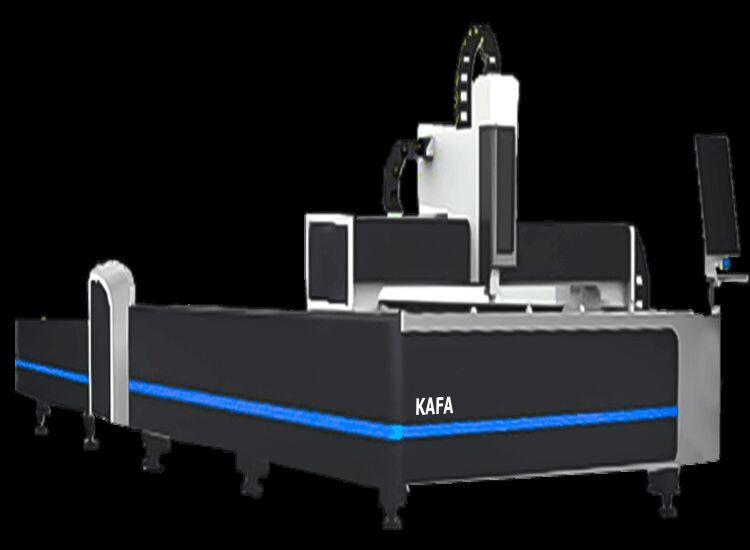

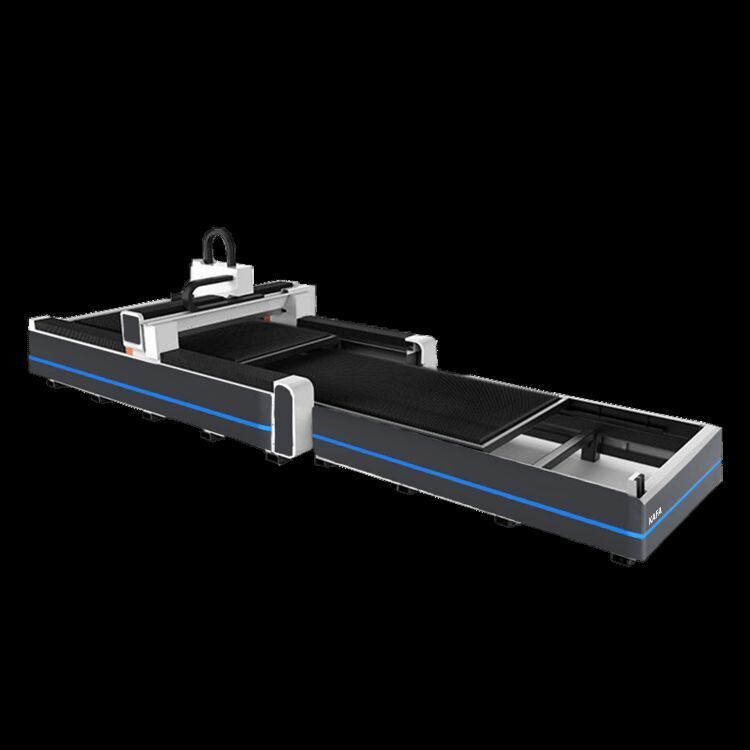

Fiber Laser Sheet Cutting Machine GE Series

Product details

Laser Cutter Equipment Main Configuration:

NameOrigin and Manufacturer name
Special laser cutting head (auto focus)RAYTOOLS
Cutting machine bed (steel plate welding)Self-produced
BeamIntegrated Cast Aluminum
GuideTaiwan HIWIN
ReducerJapanese Ximpo
Gear, rackTaiwan K.H/Germany Herion
Servo motor and driverJapan Panasonic/YASKWA
Control Cabinet Self-Produced
Low-voltage electrical appliancesChint/France Schneider
Origin, limit switchSwiss Carole
CableFlexible Shielded cable
TransformerShenzhen Xinbei Ocean
IPCTaiwan Advantech
CNC system (including control software, height controller)Cyp Cut
Oil RoadElectric oil pump
Gas circuit (proportional valve)NNT
ChillerHan Li



Dual-Platform Automatic Exchange System





  1. Automatic Obstacle detection and Avoidance



Main Technical Parameters of Fiber Laser Cutting Machine

Device Model

KAFA GE Series

Laser Cutter Type

Fiber-optic laser

CNC laser Cutter Wavelength1064nm
Rated output power2000W
Beam quality<0.373mrad
X axis travel

3020mm

Y axis travel1520mm
Z axis travel100mm
Effective Cutting Range

3000*1500m

Workbench axial positioning accuracy <+0.05mm/m
Worktable repeat positioning accuracy<+0.02mm/m
Maximum empty speed60m/min
Workbench Maximum load 200KG
Phase3
Power supply rated voltage

380

Frequency 50Hz
Total power protection levelIP54



Automatic Nozzle Changer


Auto Focus Laser Head




Cast Aluminium Crossbeam


Tenon-and-Mortise Joint infra-structure



Cutting Metal Performance Table:

MaterialThickness(mm)Speed(m/min)Power(W)Auxiliary Gas
Stainless Steel1
2

3

4

5
6

8

1

2

3

4

5

6

8
35
10

6.5

4

2.4

1.6

0.9

30

9

6

3.2

2

1.2

0.6
2000
2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000
Air
Air

Air

Air

Air

Air

Air

N2

N2

N2

N2

N2

N2

N2
Carbon Steel1

2

3

3

4

4

5

6

8

10

12

14

16
9
4.2

3.8

3

3.3

2.8

2.6

1.8

1.3

1.1

1

0.9

0.8
2000
2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000
O2
O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2

O2
Brass1
2

3

4

5
25
7.5

3.5

1.8

0.8
2000
2000

2000

2000

2000
N2
N2

N2

N2

N2
Aluminum1
2

3

4

5

6

8

1

2

3

4

5

6
30

8

4

2.5

2

1

0.6

30

9

3.2

2

1.4
0.8
2000
2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000
N2
N2

N2

N2

N2

N2

N2

Air

Air

Air

Air

Air

Air
Copper1
2

12
4
2000
2000
O2
O2
Galvanized Sheet1
2

3
25
9

4.5
2000
2000

2000

N2


N2


N2
