6 pv inputs electronic solar pv combiner junction box with cable

Product details
Company:Manufacturer&Trading;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:Junction Box;External Size:340*300*140mm;
input arrays number:4/6/8/10;Warranty:12 Months;
Temperature:-30 to 60°C;Protection Level:IP65;
Model Number:PVB;Supply Ability:5000 Unit/Units per Month junction box;
Application:Electric;Surge protection:available;
Protection:IP65;Port:Guangzhou/Foshan/Shenzhen;
Packaging Detail:junction box use standard export package;Product name:junction box;
Place of Origin:Guangdong China;Certification:ISO9001,CE;
Brand Name:SNAT;SNAT/OEM/ODM:Accept;

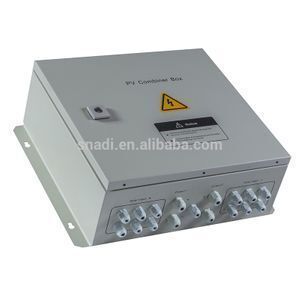

6 pv inputs electronic solar pv combiner junction box with cable



  • With overall protection such as counterattack prevention over-current protection, over-voltage protection and lightning prevention, PV combiner boxes are used to reduce the connecting wires between a PV module and an inverter or controller, make maintenance easy, reduce the loss and improve product safety and reliability
  • junction box produced by us has all the functions above and provides users with a complete solution for PV power generation systems
Product Description





  • Two groups of independent PV array input and output for flexible application in different connection schemes
  • Multiple PV input arrays each of which has a maximum current of l0A
  • High voltage fuse provided for the counterattack prevention of each PV input array
  • Special high-voltage lightning protection device for the PV module
  • Special high-voltage circuit breaker for output control of PV module
  • Degree of protection of IP65 for meeting the need of outdoor installation







ModelH4TH6TH8TH10T
Input data
Number of PV inputs46810
Max. current of each PV input array10A
Fuse for each PV input array10A
Wire number of each PV input arrayPG7, 4mm2
Output data
Number of outputs12
Maximum output current40A60A in all (30A/each output)80A in all (40A/each output)100A in all (50A/each output)
Wire number of each outputPG16, 8mm2 for each outputPG16, 10mm2 for each outputPG16, 10mm2 for each outputPG16, 12mm2 for each output
Maximum output voltage800V DC
DC output circuit breakerAvailable
Other data
ProtectionIP65
Temperature-30 to 60°C
Net/gross weight (kg)5.3/9.38.4/12.99.5/14.310.8/15.6
Dimensions340*300*140mm360*340*145mm400*420*145mm
Cooling methodNatural cooling
Surge protectionAvailable
Ground wire number≥ 6mm2



6 pv inputs electronic solar pv combiner junction box with cable





Product Recommended



Certifications



Our advantage

A. More than 10 years technical experience and advanced equipment
Our products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification
80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.





Company Information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our warranty commitment, parts will be shipped for free during warranty period. We have professional technical team and are focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business. SNAT is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients.
