4 Way Junction Box PV Combiner Box With 4 Strings
-
Supplier: Foshan Snat Energy Electrical Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sabrina Lau -
Price: $98.00 /unit -
Min. Order: 1 unit
| Certification: | CE,ROHS,ISO9001; | Model Number: | HT4T2; |
| Application: | Solar Power System; | Selling Units: | Single item; |
| Function: | proctect the system; | Name: | pv array combiner box; |
| Color: | White; | Single package size: | 36X34X14.5 cm; |

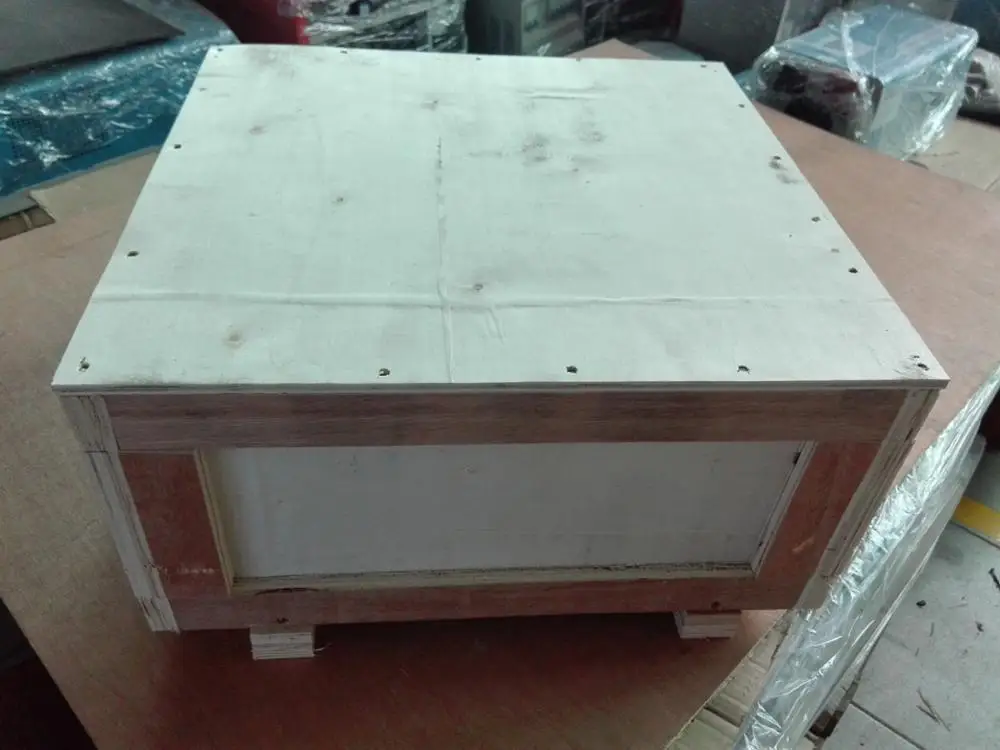

| Packaging Detail: | standard export pakge; | Brand Name: | SNADI; |
| Certificate: | ISO9001; | Package Preview: | ; |
| Size: | optional; | output channel: | 1-2; |
| Single gross weight: | 11.0 KG; | input arrays: | 4; |
| output current: | 40A-100A per; | Warranty: | 1 Year,1-2 Years; |
| Place of Origin: | Guangdong China; |

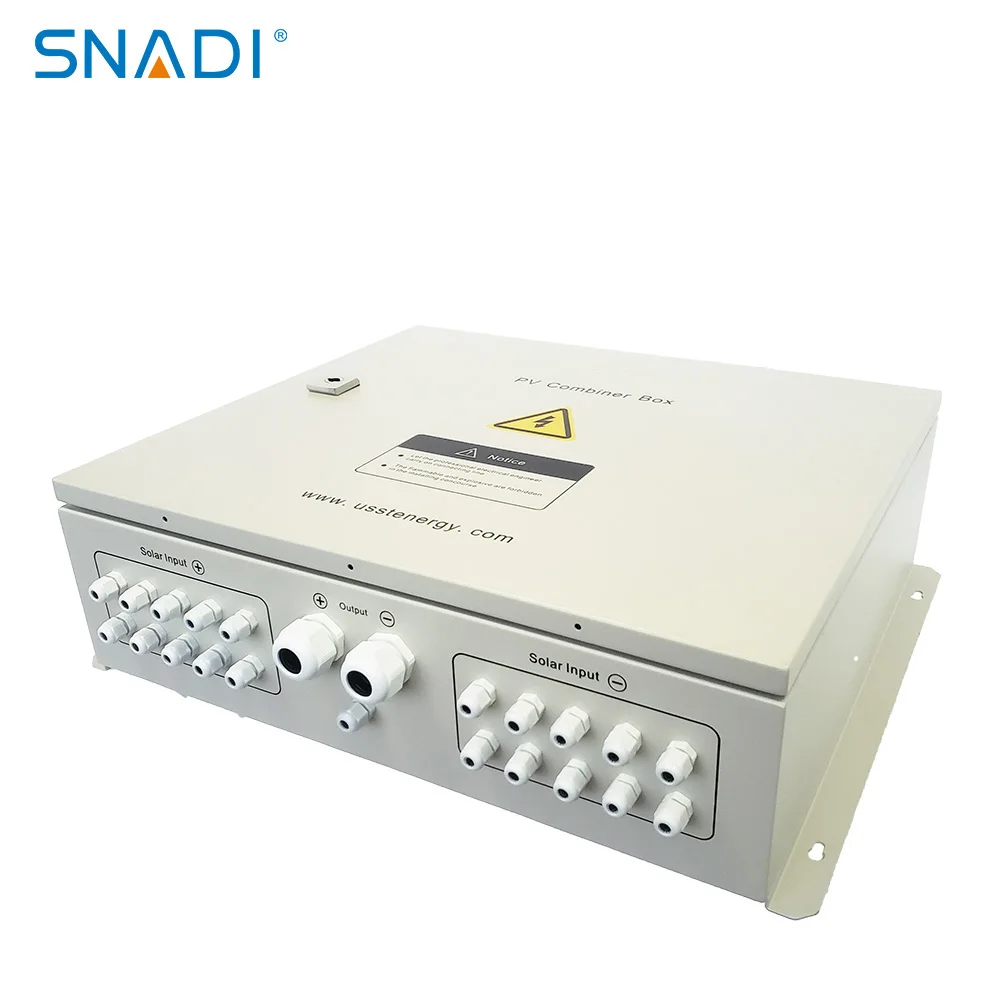

SNADI 4 Way Junction Box PV Combiner Box With 4 Strings
Product overview

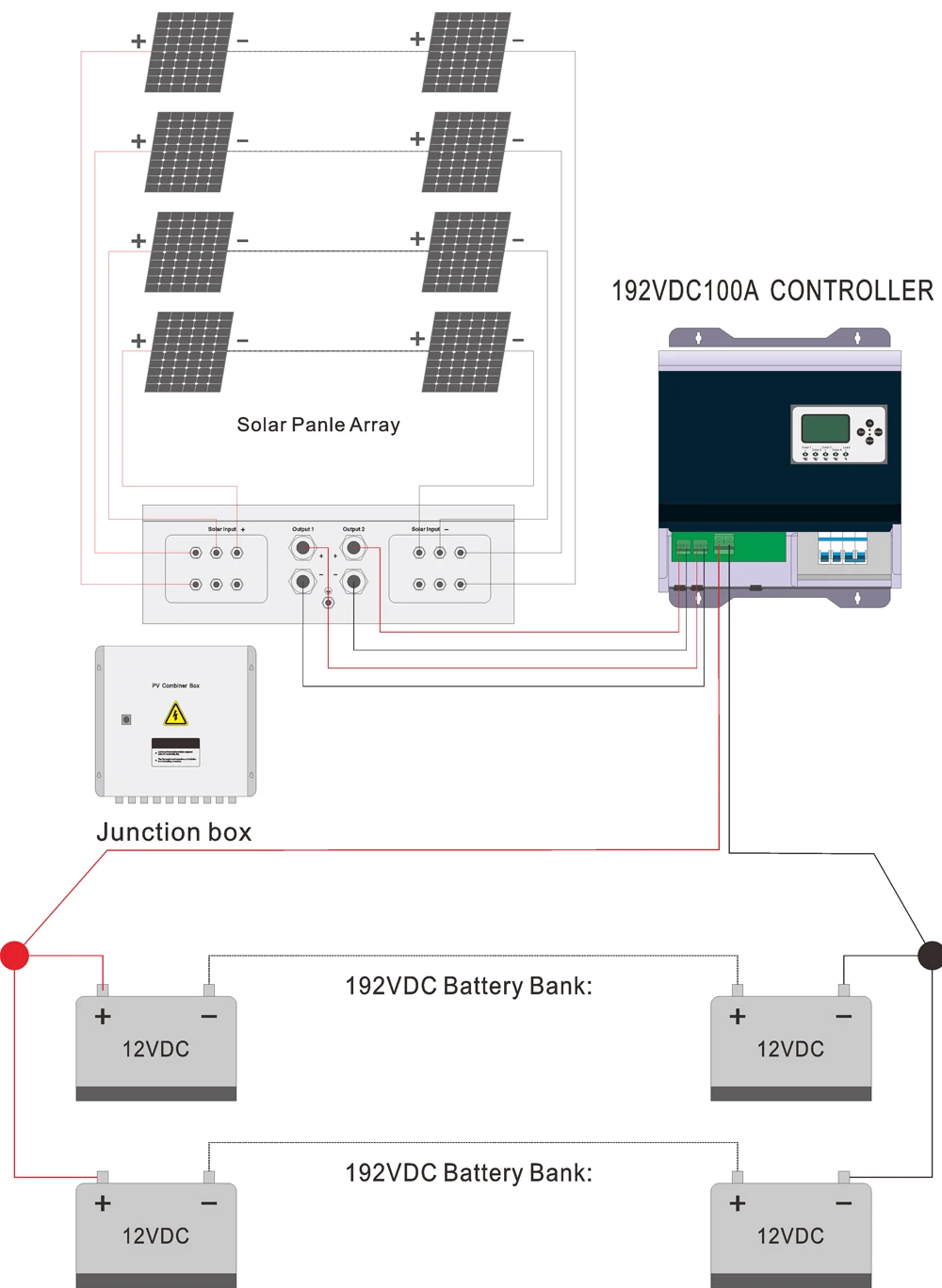

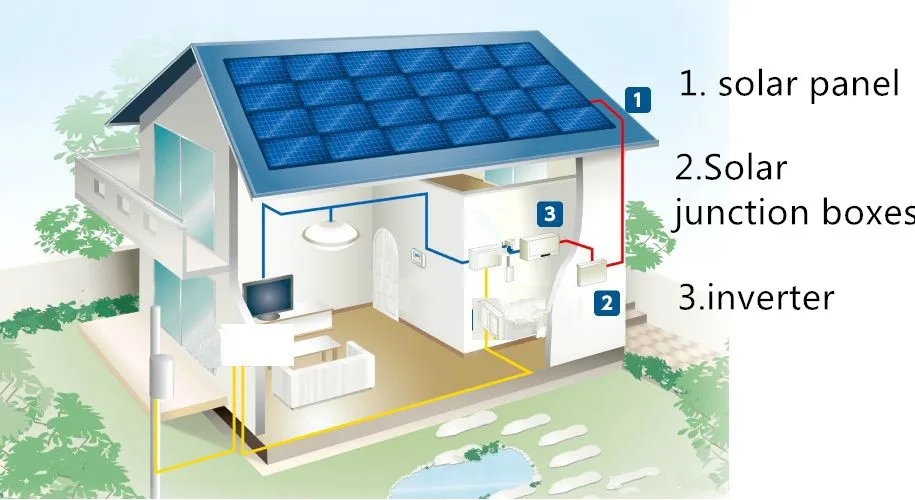

With overall protection such as counterattack prevention overcurrent protection, overvoltage protection and lightning prevention, PV combiner boxes are used to reduce the connecting wires
between a PV module and an inverter or controller, make maintenance easy, reduce the loss and improve product safety and reliability.
The PV combiner box produced by us has all the functions above and provides users with a complete solution for PV power generation systems
TECHNOLOGY INDEXES

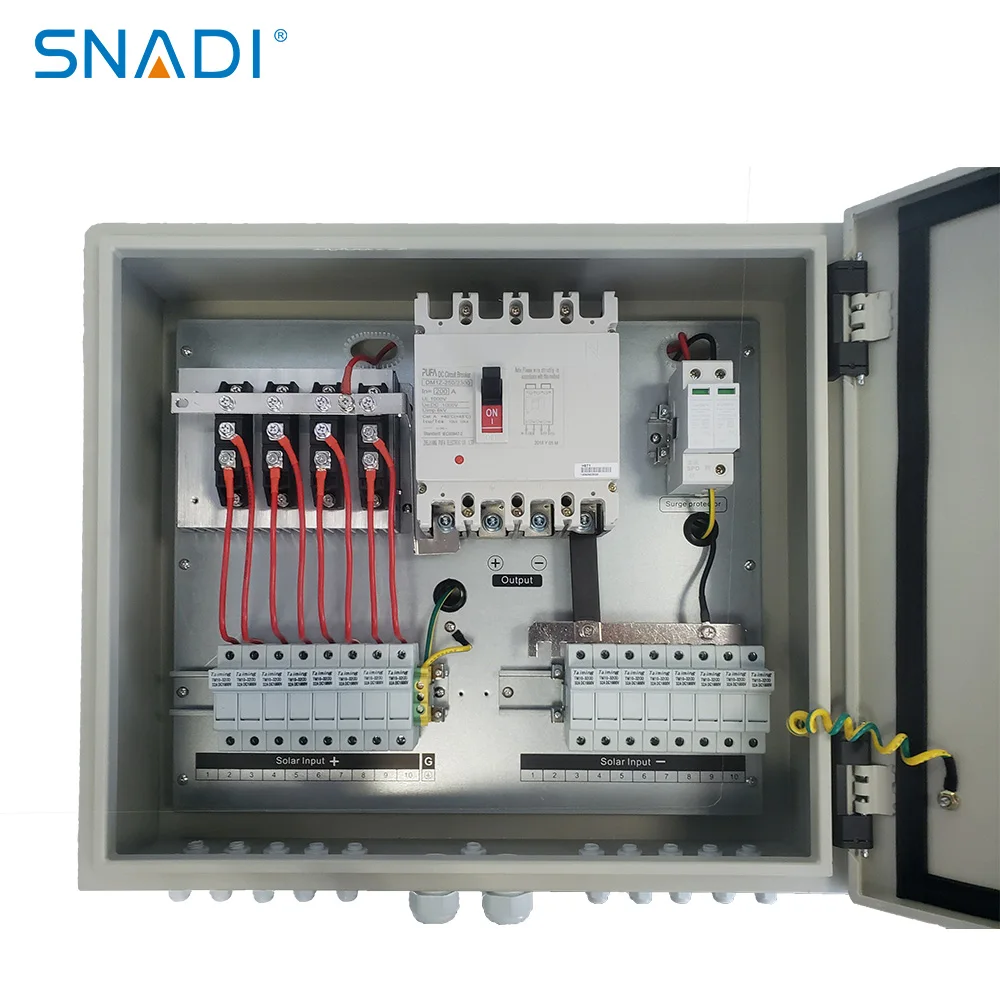

+ Two groups of independent PV array input and output for flexible application in different connection schemes:
+ Multiple PV input arrays each of which has a maximum current of l0A:
+ A high voltage fuse provided for the counterattack prevention of each PV input array;
+ A special high-voltage lightning protection device for the PV module:
+ A special high-voltage circuit breaker for output control of the PV module:
+ A degree of protection of IP65 for meeting the need of outdoor installation
| Model | H4T | H6T | H8T | H10T |
| Input data | ||||
| Number of PV inputs | 4 | 6 | 8 | 10 |
| Max. current of each PV input array | 10A | |||
| Fuse for each PV input array | 10A | |||
| Wire number of each PV input array | PG7, 4mm2 | |||
| Output data | ||||
| Number of outputs | 1 | 2 | ||
| Maximum output current | 40A | 60A in all (30A/each output) | 80A in all (40A/each output) | 100A in all (50A/each output) |
| Wire number of each output | PG16, 8mm2 for each output | PG16, 10mm2 for each output | PG16, 10mm2 for each output | PG16, 12mm2 for each output |
| Maximum output voltage | 800V DC | |||
| DC output circuit breaker | Available | |||
| Other data | ||||
| Protection | IP65 | |||
| Temperature | -30 to 60°C | |||
| Net/gross weight (kg) | 5.3/9.3 | 8.4/12.9 | 9.5/14.3 | 10.8/15.6 |
| Dimensions | 340*300*140mm | 360*340*145mm | 400*420*145mm | |
| Cooling method | Natural cooling | |||
| Surge protection | Available | |||
| Ground wire number | ≥ 6mm2 | |||
*Our company is specializing in solar products for more than 10 years,
*Our factory is located in Foshan City ,Guangdong province,China.
*Our main products include solar power system, inverter, Uninterruptible power supply, solar controller, solar inverter with built-in controller, battery, and so on.
*Welcom to visit
-
