Jn5168 2.4ghz Wireless zigbee home automation module smart lock application Ebyte zigbee iot technology solution OEM

Product details
Power:20dBm (100mW);Size:16*30mm;
Max. Voltage:3.6V;Max. Current:145mA/26mA;
Operating Temperature:20;Single package size:0.2X0.35X0.15 cm;
Single gross weight:0.005 KG;Brand Name:Ebyte;
Frequency:2.4GHz;Model Number:E75-2G4M20S;
product name:Wireless RF IOT Smart Home Zigbee Module;Keywords:ZigBee wireless module;

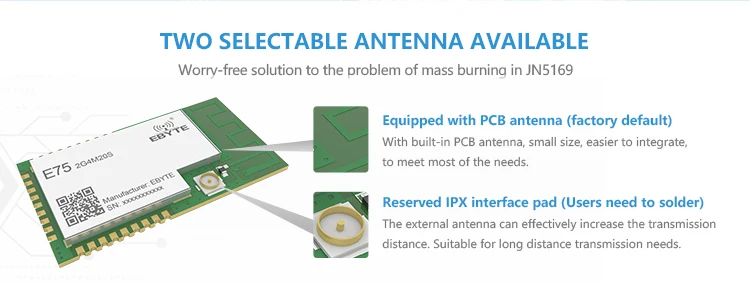

RF Connector:IPX/PCB;Interface:SoC;
Package Type:Packed in corrugated cases with antistatic sponges;Place of Origin:Sichuan China;
RFIC:JN5168;Operation Range:1000m;
Supply Voltage:2.0~ 3.6V;Selling Units:Single item;

Product Description

 Jn5168 2.4ghz Wireless zigbee home automation module smart lock application Ebyte zigbee iot technology solution OEM



    Brand

    Ebyte

    IC

   JN5168

    Model

    E75-2G4M20S

    Interface

    SoC

    Power

    20dBm

    Distance

    1000m

    RF connector

    IPX/PCB

    Frequency

    2.4GHz

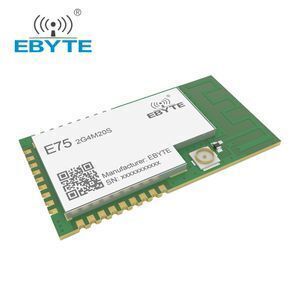

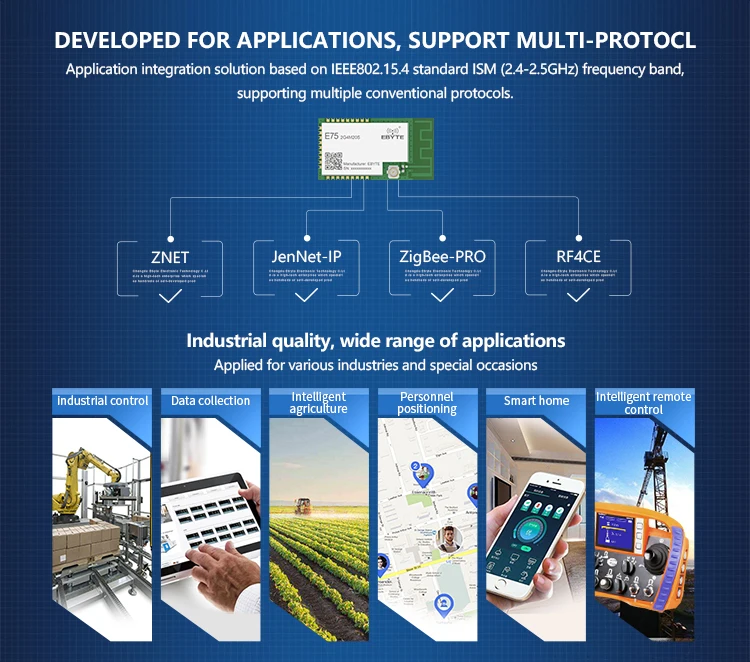

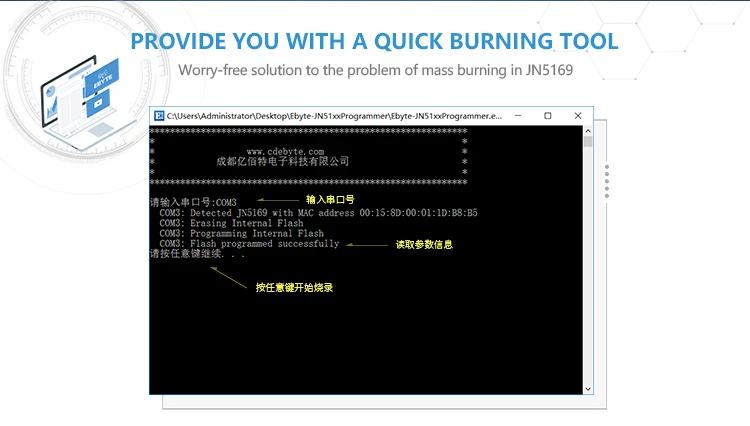

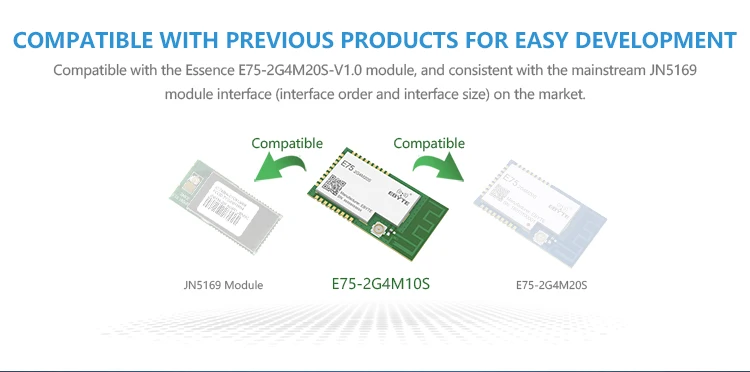

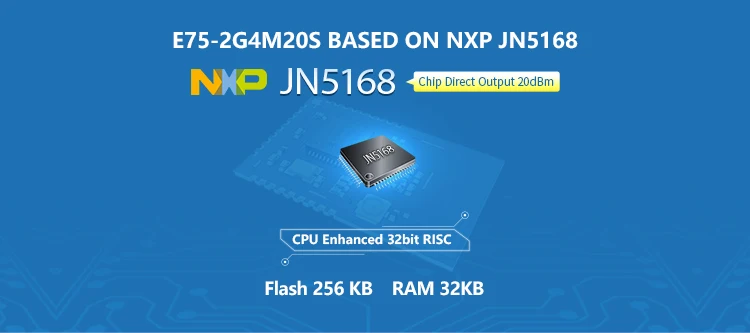

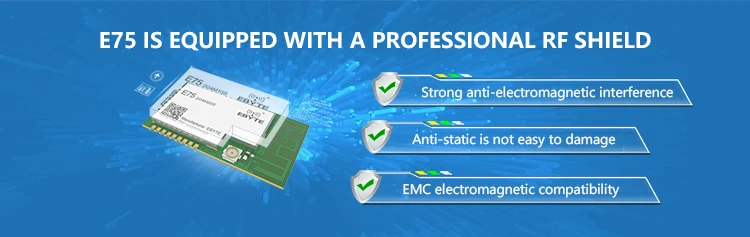

E75 series designed by Chengdu Ebyte is a high-performance and low-consumption ZigBee wireless transceiver module, which is based on NXP JN5168. It provides a complete application integration scheme at ISM(2.4-2.5GHz) based on IEEE802.15.4. It supports protocols like FastZigBee, ZNET, JenNet-IP, ZigBee-PRO, RF4CE and etc. It can be widely applied in industrial control, industrial data collection, agriculture control, personnel location in mine lot, and intelligent furniture & temperature controller.




Electrical parameter



   Electrical parameters

   Frequency Band   2.4GHz

   Default: 2.4GHz

   Supply voltage   2.0- 3.6V DC

   Note: the voltage higher than 3.6V is forbidden

   Communication voltage

   2.0- 3.6V DC

   Recommending voltage: 3.3V

   Transmitting power   20dBm(100mW)

   19-21dBm

   Standby current   2.0uA

    1.0-3.0uA

   Transmitting current   145mA/20dBm

    136-160mA

   Receiving current

   26mA

    24-29mA
