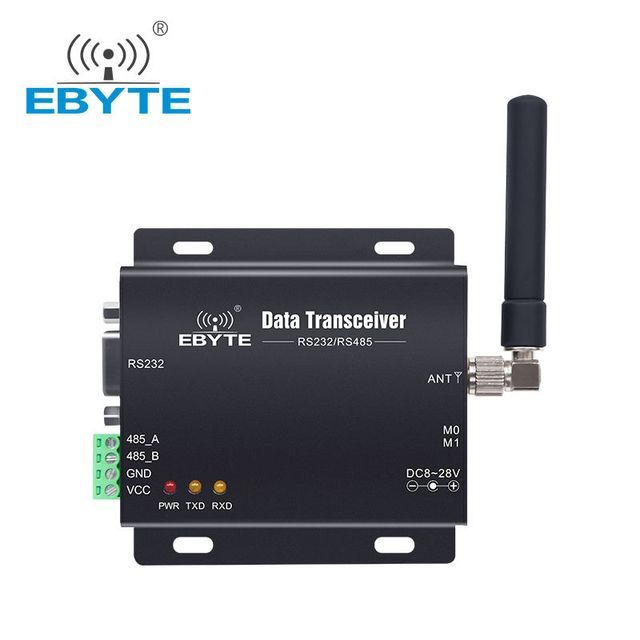

E32-DTU(433L20) 433Mhz Wireless Transmitter Lora Module Modem SX1278 433MHz Telemetry Radio

  • Supplier: Chengdu Ebyte Electronic Technology Co., Ltd.
  • Region: Sichuan, China
  • Contact: Mr Chengdu Ebyte Company
  • Price: $16.53 / 5 - 49 pieces
    $14.75 / 50 - 99 pieces
    $13.99 / 100 - 499 pieces
    $13.53 / >=500 pieces
  • Min. Order: 5 pieces
Product details
Package preview:application:IoT Applications and Solutions
Supply capacity:50000 pieces per monthcolor:Black
strength:20dBm (100mW)interface:RS232/RS485
port:Chengdu, Shenzhenpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal, Credit Card
Packaging Details:New E32-DTU(433L20) 433Mhz SX1278 433MHz radio telemetry wireless transceiver lora module modemSupplier type:OEM/Design and Manufacturing
Origin:Sichuan, Chinatype:radio frequency transceiver
model:E32-DTU(433L20)chipset:SX1278
voltage:8-28VKey words:433MHz radio telemetry
size:82mm*62mm*25mmName:Remote Transmitters and Receivers
frequency:433 MHzdistance:3000 meters
brand:Ebyteweight:127±5g
Product Description
E32-DTU(433L20) is a high-speed wireless data transmission unit (DTU) with RS232/RS485 interface, 8V~28V, working frequency 410~441MHz

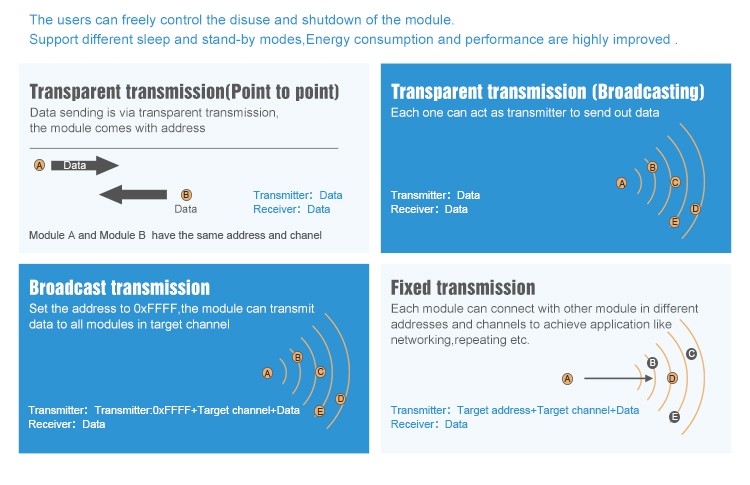

(default: 433MHz). It has LoRa spread spectrum function. Support transparent transmission.

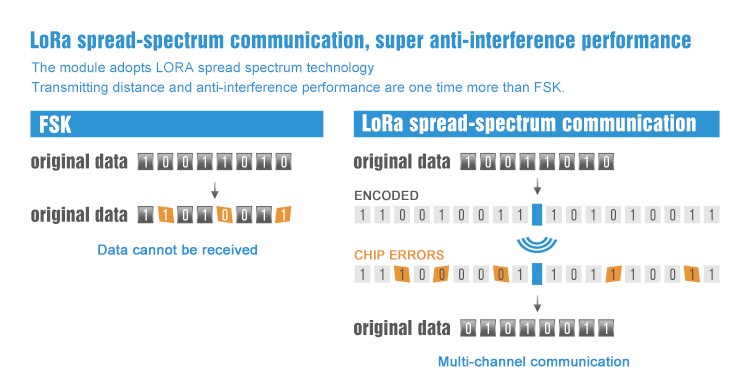

DTU adopts LORA spread spectrum technology, and the transmission distance is far beyond the past. advantage

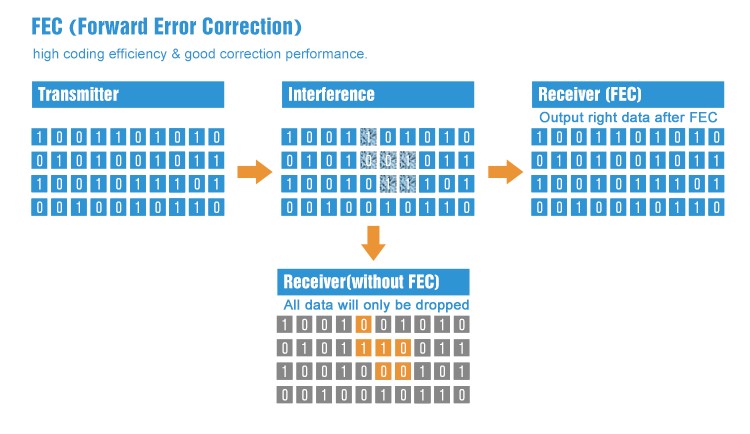

Including more concentrated power density and better anti-interference performance. It has FEC (Forward Error Correction) function
Algorithm ensures high coding efficiency and good error correction performance. In the event of a sudden disturbance, it can
Proactively corrects corrupted packets, increasing reliability and range accordingly. but
Without FEC, these packets would be dropped.
RF parameters
value
working frequency
410~441MHz
transmit power
20 decibels
Receiver sensitivity
-138 dB
air data rate
0.3k~9.6kbps
Test distance
3000 meters
hardware parameters
value

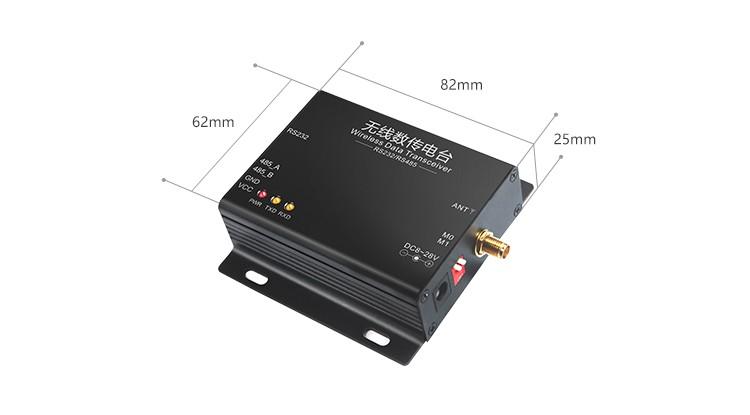

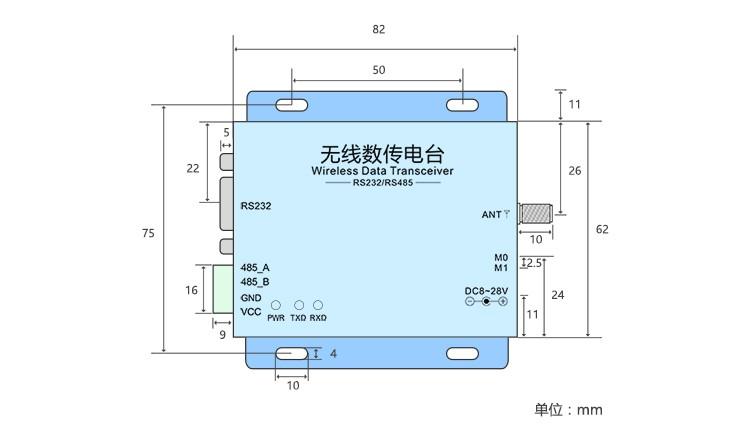

size
82*62*25mm
Antenna type
SMA-K

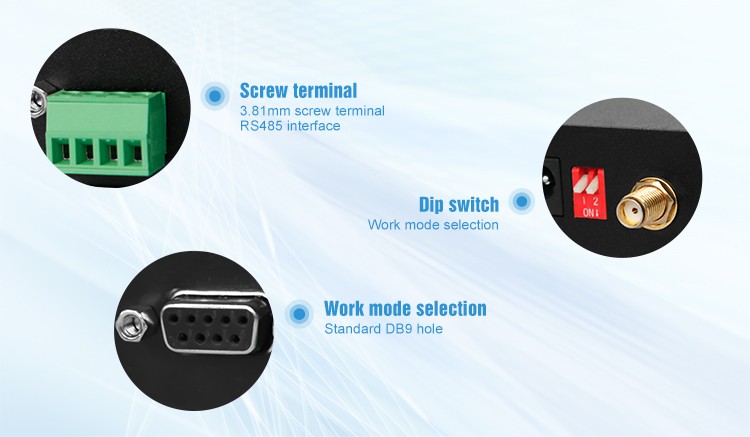

Communication Interface
RS232/RS485
pack
DB-9 / screw
buffer
512 byte buffer
Electronic parameters
minute
typical value.
maximum.
unit
power supply
10
12
28
V

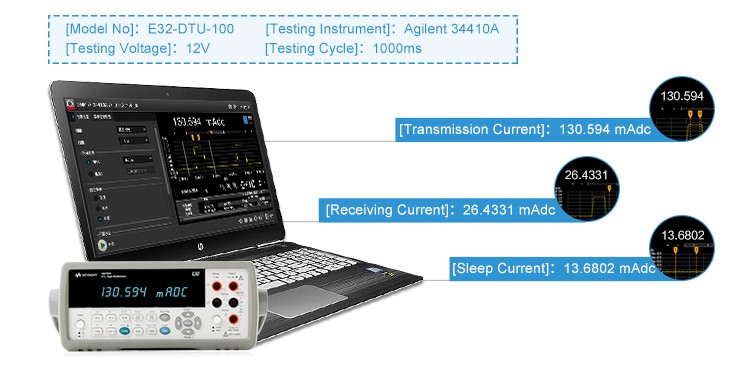

Transmission current
120
134
147
Well
stand-by current
25
28
31
Well
Operating temperature
-40
20
+85
Working humidity
10
60
Post-90s
%
Storage temperature
-40
20
+125
