Wireless Remote Control Switch Mini Small 433mhz RF Transmitter Receiver Dc12v Wireless Remote Control Switch 1 Channel Relay

Supplier: Shenzhen Fengbaode Electronic Technology Development Co., Ltd.
Region: Guangdong, China
Price: $3.00 / 20 - 199 pieces
$2.50 / 200 - 4999 pieces
$2.20 / >=5000 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Origin:	Guangdong, China	Minimum Order Quantity:	2
type:	RF Module	product name:	Universal remote control
delivery time:	3-15 days	Package:	Standard carton
OEM/ODM:	accept	color:	Black
Key words:	remote control	chipset:	1527
Buttons:	2 buttons	port:	Yantian Port
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	feature:	durable
Packaging Details:	1pc/PC bag 500pcs/carton 1000pcs/carton	Payment:	T/T, Western Union
model:	FBD-YK01F-433	brand:	Feng Baode

Product Description

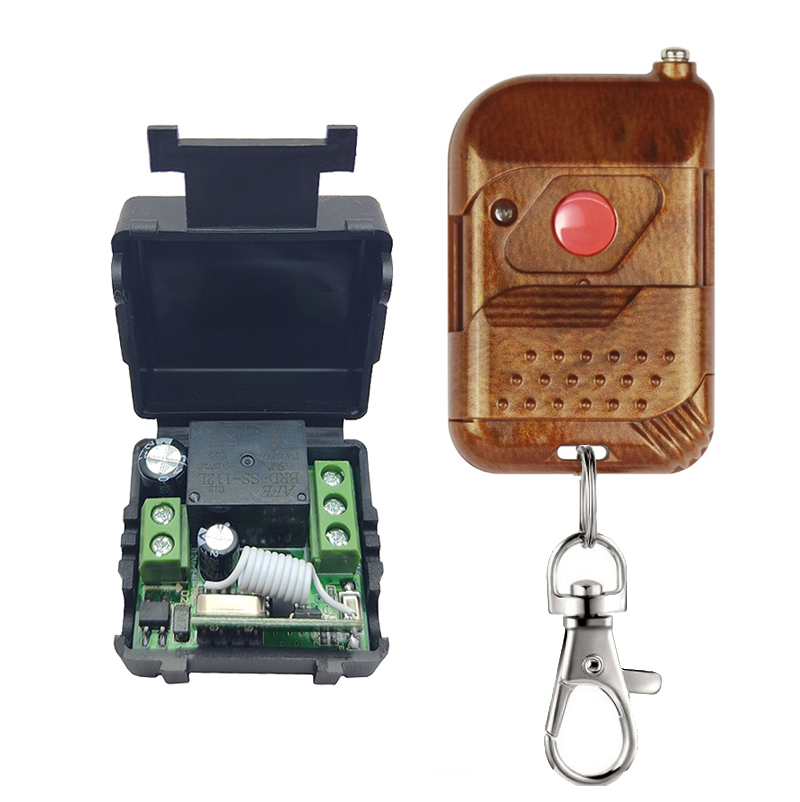

Product List; 1; 433MHZ 1-button remote control 1PCS 2; 433MHZ 12V relay switch receiver 1PCS

product name	DC12V single remote control switch
Receiving distance	More than 25 meters
Communication frequency	433.92±0.2 MHz
Encoding method	:Learn to code

Product performance description
Product Performance Introduction

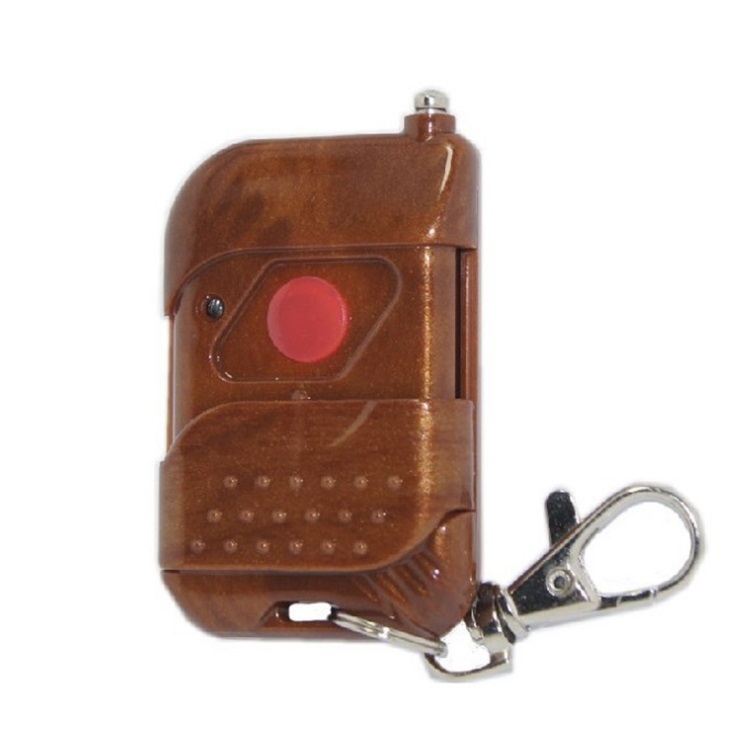

One-button remote control Modulation mode: ASK (amplitude modulation) Transmission frequency: 315, 433MHZ (sound level meter stable)
Frequency, other frequencies can be customized) Transmission distance: 120-150M (under open circuit and empty circuit conditions, the receiving device sensitivity is 100dbm) Encoder type: EV1527 chip learning code (built-in millions of passwords)
Application: motorcycle, car anti-theft alarm and other security fields, LED lighting, fan lights, electrical switches, access control
Control electronic locks, etc.

Title goes here.

Product Parameters
1. Working voltage: DC12V
2. Working current: 4.7mA
3. Sensitivity: -110DBM
4. Speed: Maximum 10KB/S
5. Working mode: inching, self-locking, interlocking (freely convertible)
6. Module output: 1 CMOS level signal, corresponding to 41
7. The receiving module can store 16 remote controllers
8. Support encoding chip models: EV1527, PT2262, 2264, 2260 and other customized

detailed picture

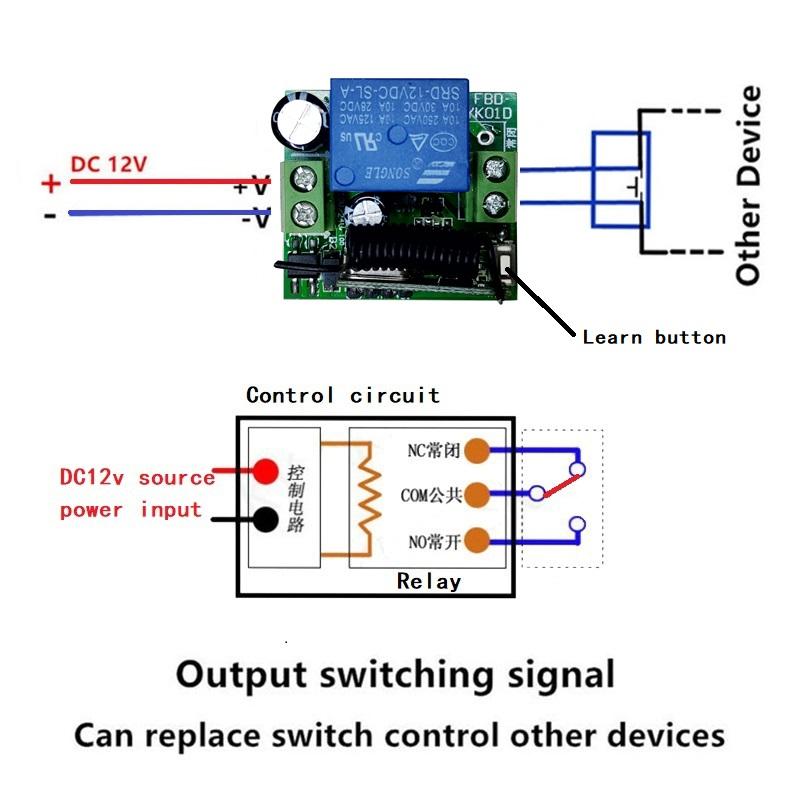

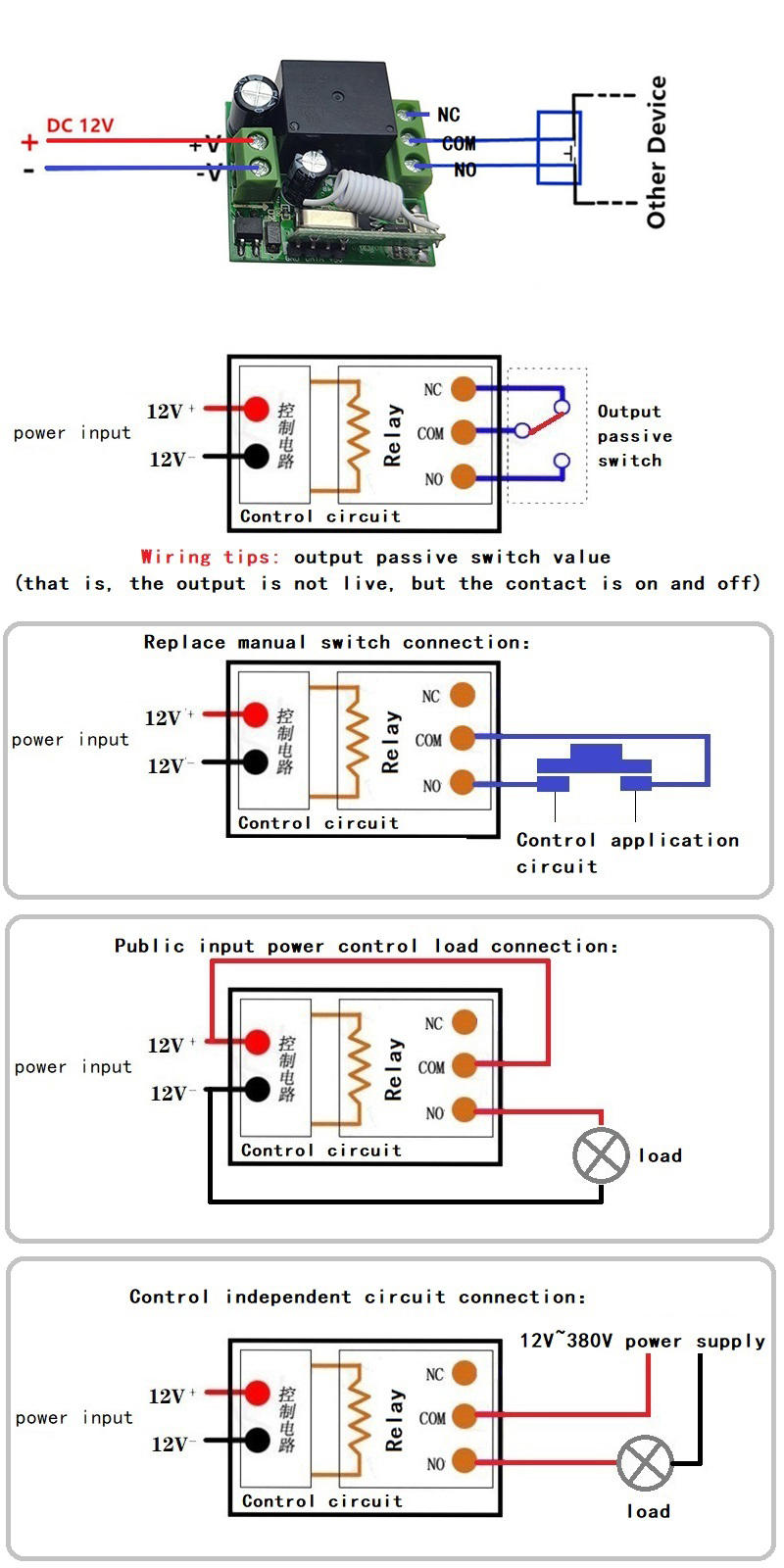

Working mode: inching, self-locking, interlocking (freely convertible) Switch output: 1-way switch on-off control,

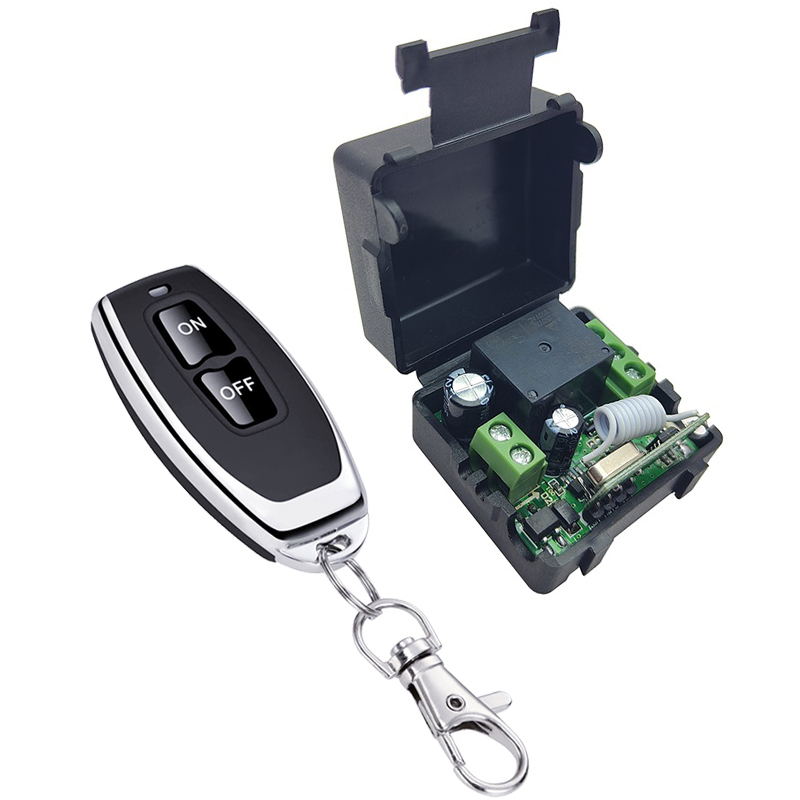

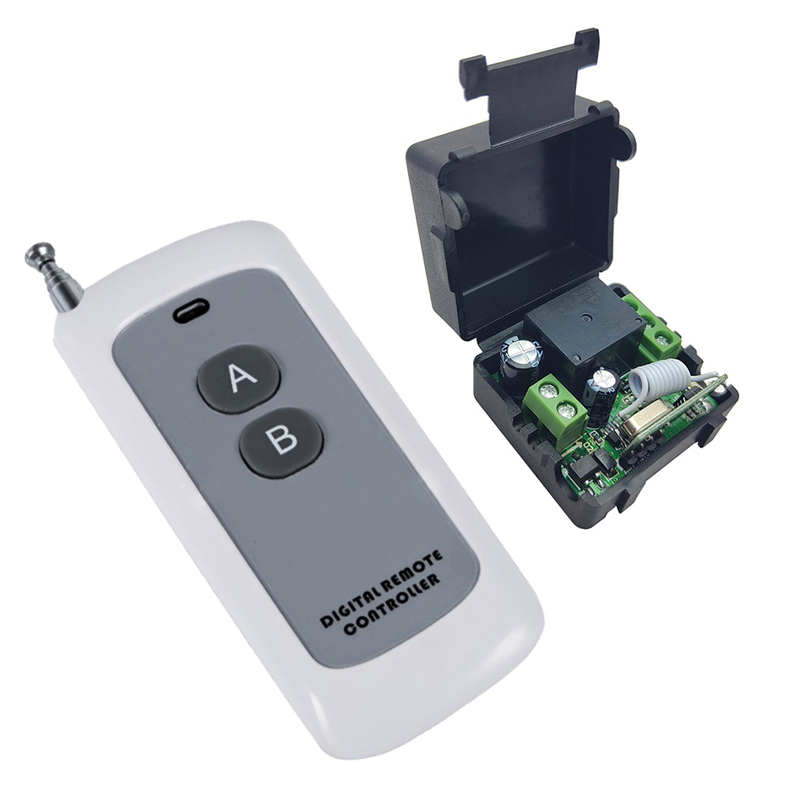

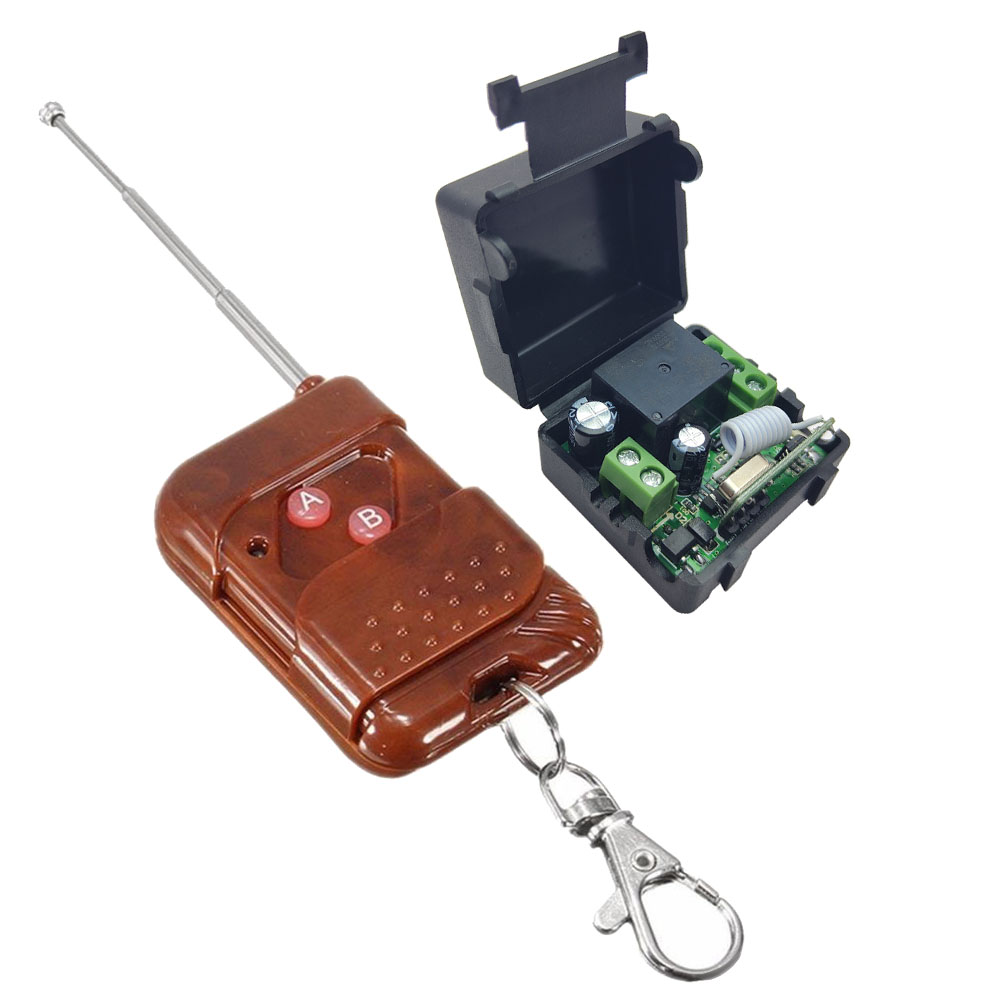

2-button remote control + receiver module

Product Usage

Title goes here.

1. Clear function - After pressing the learning button 8 times, the LED indicator flashes 3 times and then goes out, and all the remote control code data in the memory is cleared, indicating that the clear function is completed.

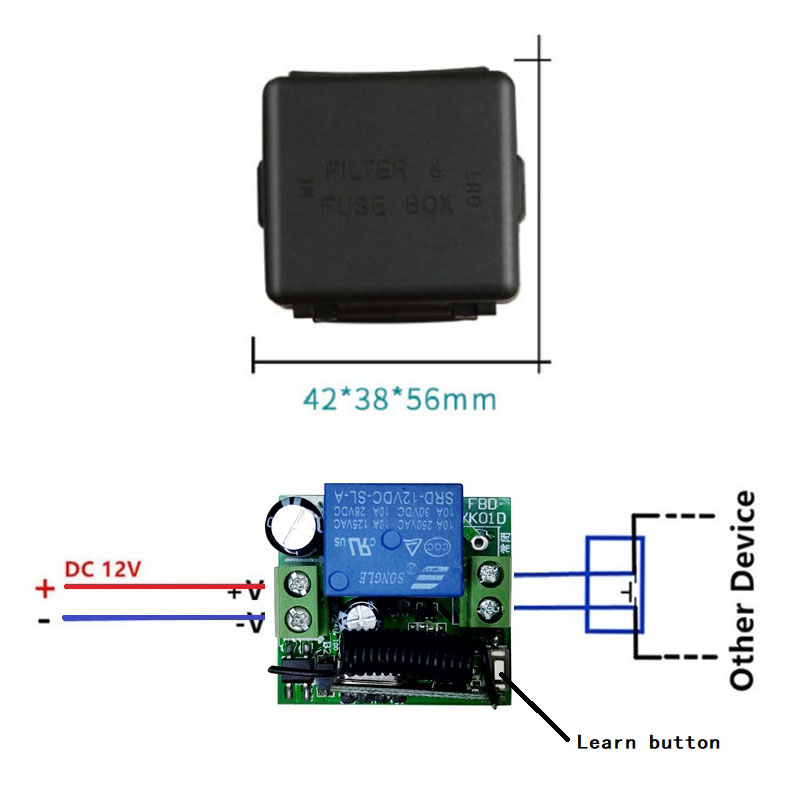

2. Code pairing function - press the learning key (jog mode) "KEY", the LED indicator lights up to indicate that the microprocessor enters the learning and pairing state, press the wireless remote control pairing button, the LED indicator flashes 3 times and then goes out to indicate that the code pairing is successful. (Press the learning key once to learn and pair the remote control in jog mode; press it twice to learn and pair the remote control in self-locking mode; press it 3 times to learn and pair the remote control in interlocking mode;) The wireless remote control switch can store 21 different remote controls, and the code needs to be cleared again before changing the working mode. 3. Code pairing test - after the code pairing is successful, press the remote control button, and the corresponding relay will make a ticking sound.

- Clean and code match:

Product Description

Good hand feeling, exquisite appearance; SAW frequency is stable, performance is stable; Multiple frequency points, high cost performance. Application environment Application field: remote control switch, anti-theft alarm, remote control door lock, remote control electric rolling shutter door and window, industrial control products, etc. Used in conjunction with our company's receiving series products.

Product use effect description

Product Instructions

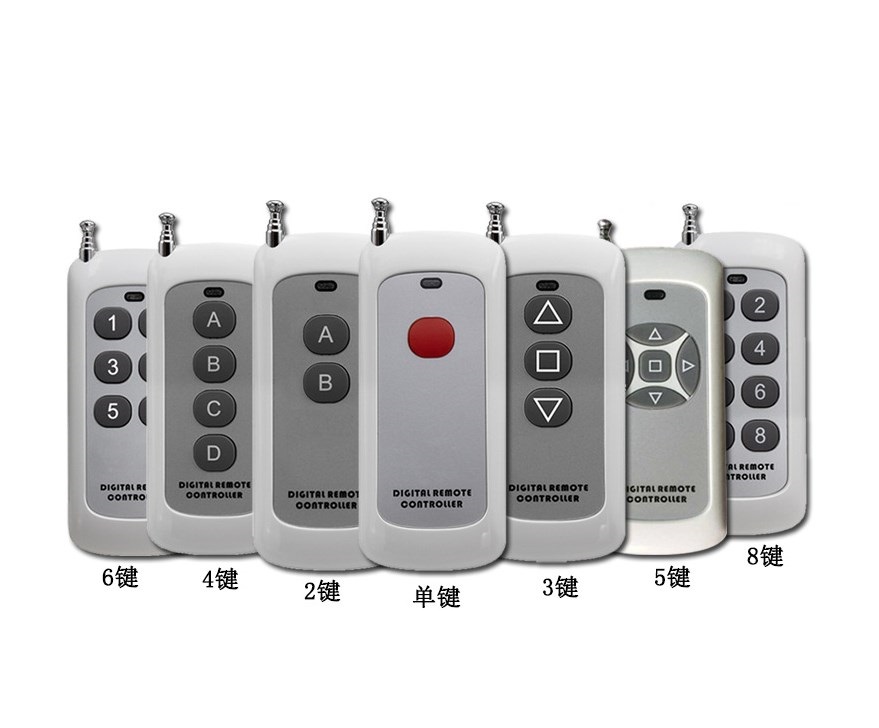

There are 1 to 8 buttons to choose from, all of which can be used with the receiving module. The button symbols can be
Screen printing customization
