rtls wristband system rtls professional rtls rfid employee uwb tracking indoor positioning system

Supplier: Shenzhen Xexun Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Abby Hou
Price: $45.00 / 1 - 99 sets
$44.00 / 100 - 999 sets
$43.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

application:	Social distance, factory, hospital, school, nursing home, etc., social distance, factory	chipset:	DW1000
Certificate:	FCC CE ROHS	system:	free real-time operating system
waterproof:	IP68	Package preview:
Battery:	1000mAh	Origin:	Shenzhen
brand:	Xi Xun	Key words:	UWB
Supply capacity:	600,000 sets per month	color:	Black
payment terms:	T/T, Western Union, MoneyGram, PayPal	product name:	UWB Tracker
CPU:	52832	port:	Shenzhen
model:	DDX05	network:	Wifi

Related Products

Product parameters

System functions

No.	Name	describe
1	real-time tracking	You can view the real-time location, name and other detailed information of the tracked person on the map.
2	historical route	You can query the historical walking route of the tracked object at different times at any time.
3	virtual fence	You can set up any area as a virtual fence and add valid time periods and tracking objects to the fence. Once the set rule is triggered, the system will immediately alarm.
4	Timeout alarm	You can set the maximum time allowed for the tracked object to stay in the specified area. If the specified time is exceeded, the system will immediately issue an alarm.
5	electronic roll call	The system can count and display the number of personnel in each area in real time, and managers can easily grasp the real-time distribution of personnel in each area.
6	Electronic attendance	The attendance area and time period can be set for the tracking object, and the attendance results can be automatically counted according to the tracking data.
7	electronic detection	You can pre-set inspection tasks for tracked objects, including inspection time/route/name. Once the inspector fails to inspect according to the specified time/route, the system will immediately call the police.
8	Group management	It is possible to set some tags to be in the same group, and a maximum allowed distance between them can be set. Once the distance between them exceeds the set threshold, the system will immediately alarm.
9	overload alarm	The maximum number of people allowed to stay in a certain area can be set. Once the threshold is exceeded, the system will alarm immediately.
10	disappear alarm	When the battery power of the tag is exhausted, the tag fails or is in a signal blind area, the system will immediately alarm.
11	emergency alert	When encountering an emergency, the wearer can long press the SOS button on the label, and the administrator will immediately receive the SOS alarm and the current location of the wearer, and can obtain real-time video through video linkage.
12	static alarm	When the tag is still for a long time, a static alarm will be generated.
13	message push	You can send messages to all or some tags in the system, and check whether the messages have been read at any time.
14	video linkage	Once an alarm occurs in a certain area, the system can automatically call the video screen of the camera in this area.
15	personnel management	Detailed personnel data (such as name and job ID) can be entered into the system and bound to the tag ID, which is globally unique and cannot be changed.
16	role management	Tracking objects can be classified and managed, such as administrators/employees/visitors/vehicles, etc., and displayed on the map with different icons.
number 17	system structure	The system adopts BS structure, which is easy to install.
18	Installation Environment	Windows server.
No. 19	system capacity	There is no limit to the number of tabs and logged-in clients.

UWB card parameters

No.	Name	describe
1	Model	DDX07
2	tracking mode	TDOA technology based on UWB
3	Tracking Accuracy	In the case of no occlusion, the maximum tracking accuracy can reach 0.3 meters
4	tracking interval	It can be set to track 3 times every 1 second when moving, and track once every 3 seconds when stationary
5	coverage	Up to 60m without shelter
6	working frequency	3.75-4.25GHz
7	transmit power	27 decibels
8	Antenna type	Built-in omnidirectional antenna
9	safety performance	Built-in encrypted transmission and security authentication to ensure data security.
10	remote upgrade	Yes
11	motion monitoring	It can realize step counting and motion monitoring, with automatic sleep function
12	message reception	Can receive SMS messages pushed by the platform
13	near field communication	Yes
14	shell material	Eco-friendly plastic
15	key	Can only be turned on, not turned off. Can be used for emergency alarm
16	low battery alarm	When the terminal power is lower than 20%, a low battery alarm will be generated
number 17	Reminder	vibration reminder
18	external interface	Magnetic charging and data interface
No. 19	Battery	Built-in rechargeable 800MAH battery
20	Standby time	60 days
twenty one	Charging voltage	5V
number 22	charging time	2 hours
twenty three	weight	60 grams
twenty four	size	865410mm (length/width/height)
25	waterproof	IP67.
26	use environment	Operating temperature: -30°C-+60°C; Operating humidity: 10% to 90% RH, non-condensing

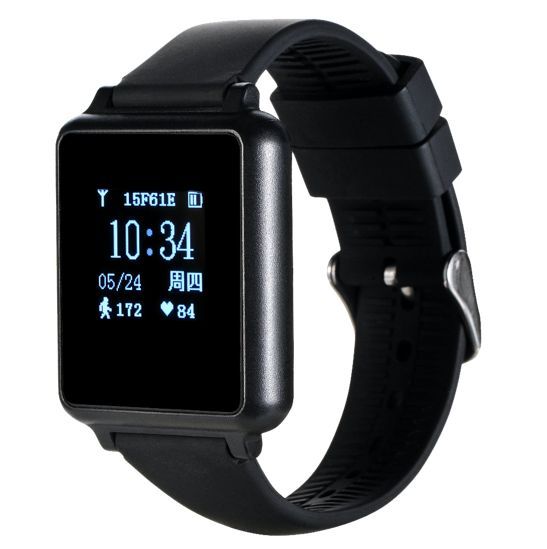

UWB watch parameters

No.	Name	describe
1	Model	DDX05
2	tracking mode	TDOA technology based on UWB
3	Tracking Accuracy	In the case of no occlusion, the maximum tracking accuracy can reach 0.3 meters
4	tracking interval	It can be set to track 3 times every 1 second when moving, and track once every 3 seconds when stationary
5	coverage	Up to 60m without shelter
6	working frequency	3.75-4.25GHz
7	transmit power	27 decibels
8	Antenna type	Built-in omnidirectional antenna
9	safety performance	Built-in encrypted transmission and security authentication to ensure data security.
10	remote upgrade	Yes
11	motion monitoring	It can realize step counting and motion monitoring, with automatic sleep function
12	vital signs	Support real-time/timing heart rate monitoring.
13	message reception	Can receive SMS messages pushed by the platform
14	near field communication	Yes
15	shell material	Eco-friendly plastic
16	low battery alarm	When the terminal power is lower than 20%, a low battery alarm will be generated
number 17	Screen	One-inch low-power OLED black and white display
18	key	The touch button can only be turned on, not turned off, and can also be used for emergency alarm
No. 19	Reminder	vibration reminder
20	external interface	Magnetic charging and data interface
twenty one	Battery	Built-in rechargeable 200MAH battery
number 22	Standby time	14 days
twenty three	Charging voltage	5V
twenty four	charging time	2 hours
25	weight	40 grams
26	size	304010mm (length/width/height)
27	waterproof	IP67.
28	working environment	Operating temperature: -30°C-+60°C; Operating humidity: 10% to 90% RH, non-condensing
29	Accessories Details	Includes terminal, magnetic data cable, user manual and warranty card.

UWB anchor parameters

No.	Name	describe
1	Model	DDX08
2	tracking mode	TDOA technology based on UWB
3	Tracking Accuracy	In the case of no occlusion, the maximum tracking accuracy can reach 0.3 meters
4	coverage	Up to 60m without shelter
5	working frequency	3.75-4.25GHz
6	transmit power	26 decibels
7	Receiver sensitivity	-100dBm
8	total power consumption	3W
9	Antenna type	Built-in omnidirectional antenna
10	transfer method	POE transmission
11	safety performance	Built-in encrypted transmission and security authentication to ensure data security
12	remote upgrade	Yes
13	shell material	Eco-friendly plastic
14	indicator light	Power and working status indicators
15	size and weight	The size of the base station is 20020040MM/100g. The color box size is 24024050mm/150g. The carton size is 500500300mm/3.5kg (20pcs).
16	installation method	wall mount
number 17	waterproof level	IP57 level
18	working environment	Operating temperature: -30°C-+60°C; Operating humidity: 10% to 90% RH, non-condensing
No. 19	Accessories Details	Includes terminal, user manual and warranty card.
