UBM30 TTMC Compact bender manual pipe bender

Supplier: Tengzhou Tri-Union Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alfred Shen
Price: $180.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	TTMC;	Warranty:	1 year;
Bending angle:	0-200°;	Condition:	New;
Weight:	24kg;	Certification:	ce,ISO 9001:2000;
Machine Type:	Pipe End Forming Machine;	Port:	QINGDAO / SHANGHAI;
Standard dies:	7 sets;	OEM:	Yes;
steel capacity:	6x50mm;	Extra Services:	End Forming;
Color:	customerized;	Raw Material:	Sheet / Plate Rolling;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,special payment terms need to confirm.;	Power:	manual compact bender;
Telescoping handle:	Yes;	After-sales Service Provided:	Online support,Video technical support;
Material / Metal Processed:	Brass / Copper,ALLOY,Aluminum,Aluminium Alloy,Carbon Steel;	Place of Origin:	Shandong China;
Supply Ability:	1000 Set/Sets per Month special compact bender dies need to confirm.;	Model:	UBM30;
Packaging Detail:	Full protected carton packages;	Mild steel capacity:	8x50mm;
Item#:	383231;	Automation:	Manual;

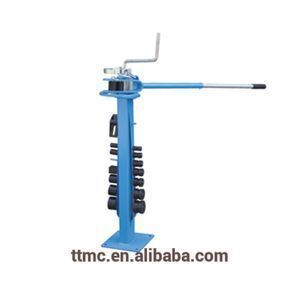

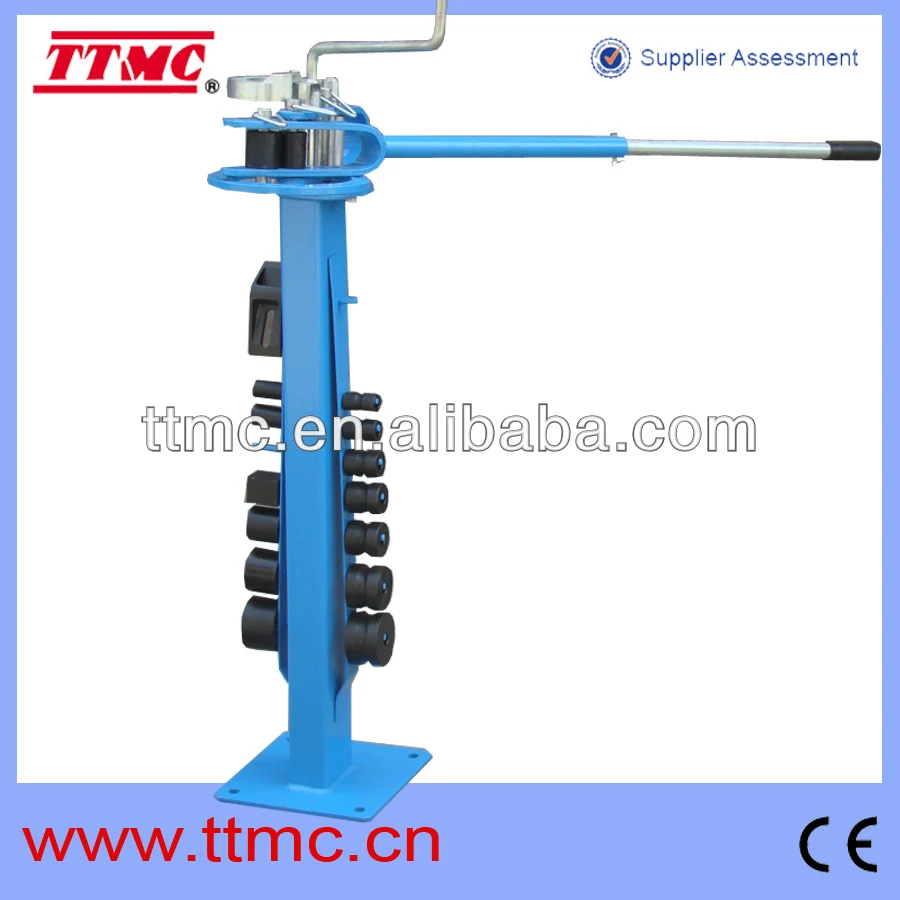

TTMC made UBM30 Compact bender / manual pipe bender

Features:

With a large base plate and a sturdy yet lightweight design, the compact bender is ideal for mounting onto trucks or tractors. A telescoping handle bends round or square bar stock up to 5/8" thick with a maximum width up to 1-15/16". Seven dies are included for customizing brackets, supports and other parts on the jobsite.

1. Stand: .325" Steel

2. Capacity: 5/16'' x 1-1/4'' or 1/4'' x 1-15/16'' mild steel

3. Maximum bar stock diameter: 5/8"

4. Handle telescopes to 44"

5. 7 dies included

6. 4 mounting holes on base plate

Main Technical Data

Model	UBM-30
Mild steel capacity(mm)	8x50,6x50
Bending angle	0-200°
Packing size(mm)	880x260x260
N.W./G.W.(kg)	24/25

What TTMC can do for you?

Since 1997, TTMC was engaged in the production of sheet metal shearing machine and metal cutting band saw. With our hundreds of technician’s efforts and knowledge, until now we have enlarged our production range to Sheet metal series machines, Grinding & Finishing machines, Garage Equipments and CNC machines tools. Our products passed the Europe and American market standards, including CE, GS, EMC & UL.

One of our advantages is to help you to fulfill One-stop sourcing and save your valuable time. Besides, benefits from our global sales net, we can closely follow the market trends. Every year, TTMC will push out 10 models different new items. So our customers will get the latest new product information and recommend to their customers.

The 85% of TTMC product are exported to more than 70 countries and regions around the world, especially to Europe and America market and always win high reputation.

If any of TTMC product interest of you, please contact us freely. We are looking forward to help you with our product and service.
