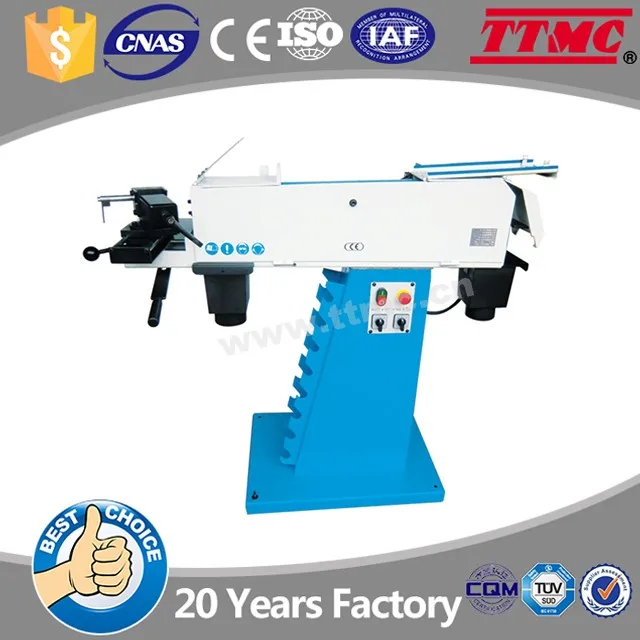

PRS-76C TTMC Tube and Profile End Grinder

Supplier: Tengzhou Tri-Union Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alfred Shen
Price: $1760.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Certification:	CE;	Grinding ares:	30° to 90°;
Motor power:	2.2/2.8kW;	Place of Origin:	Shandong China (Mainland);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash of Tube and Profile End Grinder is accept;	After-sales Service Provided:	Online support,Free spare parts;
N.W./G.W.:	188/218kg;	Max. Grinding Diameter:	100mm;
Voltage:	220V-415V;	Belt size:	100x2000mm;
Weight:	218KG;	Port:	QINGDAO OR SHANGHAI;
CNC or Not:	Normal;	Power(W):	2.2/2.8 kW;
Max. Grinding Length:	100mm;	Item No:	389017 Tube and Profile End Grinder;
Condition:	New;	Packaging Detail:	Ply wood case for PRS-76C TTMC Tube and Profile End Grinder;
Dimension(LWH):	137X62X66cm;	Supply Ability:	600 Set/Sets per Month Tube and Profile End Grinder can delivered by FCL;
Adjustable slide:	200x75mm;	Brand Name:	TTMC;
Color:	RAL5015+RAL7035;	Belt speed:	15m/sec,30m/sec;
Type:	Surface Grinding Machine;	Speed:	2800rpm;
Model:	PRS-76C;	Warranty:	1 Year;

Product Description

Features:

1. Vertical and Horizontal operation
2. With double speed motor, forward and reverse control
3. Grinds at any angle form 30°-90°
4. With dust collector connector
5. Standard roller: ¢30mm
6. Special roller size for optional

Specification:

Item	389017
Model	PRS-76C
Motor power	2.2/2.8 kW
Adjustable slide	160x70 mm
Grinding areas	30°-90°
Speed	2800 rpm
Belt size	100x2000 mm
Belt speed	15 m/sec, 30 m/sec
Packing size	137x62x66 cm
N.W./G.W.	188/218 kg

Accessories:

Standard accessories:
Standard roller: ¢30mm
Optional accessories:
Special roller size for optional:
Metric: 20mm, 26mm, 32mm, 42mm, 48mm, 60mm, 76mm
Inch: 1/2", 3/4", 1", 1 1/4", 1 1/2" 2", 2 1/2"

Note:

Specifications is for your reference. Owing to our continuous improvement of the machine, any changes of the machines and parts may be made without obligation on notice / should not be advised separately. Please check with us before order if there are strict requirements for the parameters.
