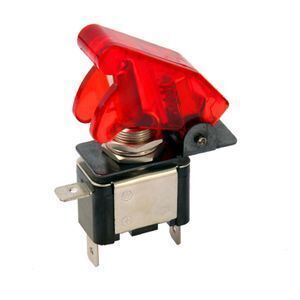

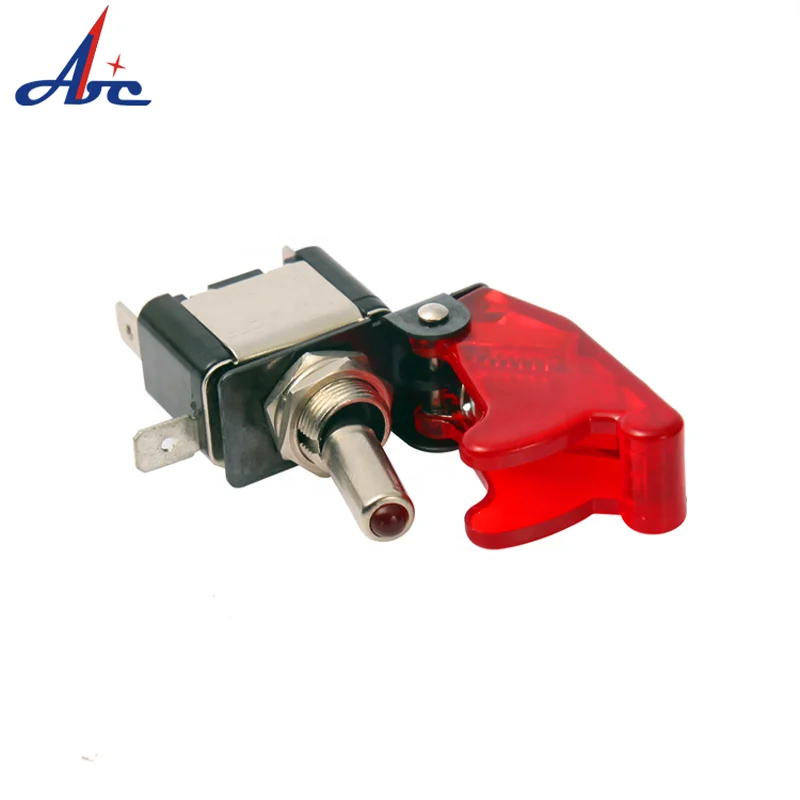

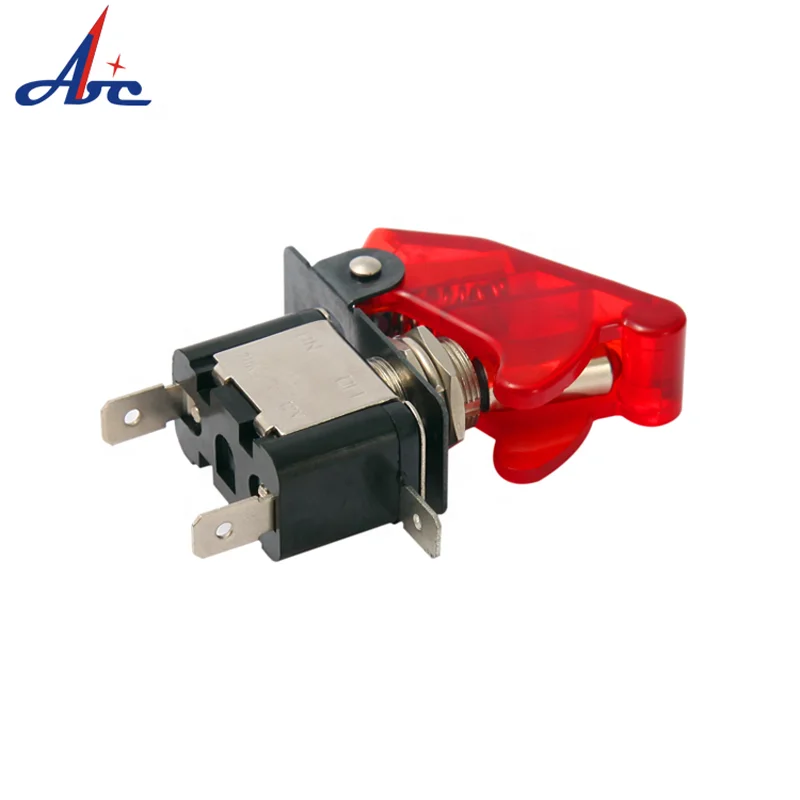

12VDC 25A ON OFF LED Rocker Waterproof Colored Guard Cap Car Light Illuminated Toggle Switch Safety Cover

Supplier: Yueqing Aibeiken Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nina Tao
Price: $1.47 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Position:	2;	Number of Contact Terminals:	2;
Selling Units:	Single item;	Product type:	Toggle Switch Safety Cover;

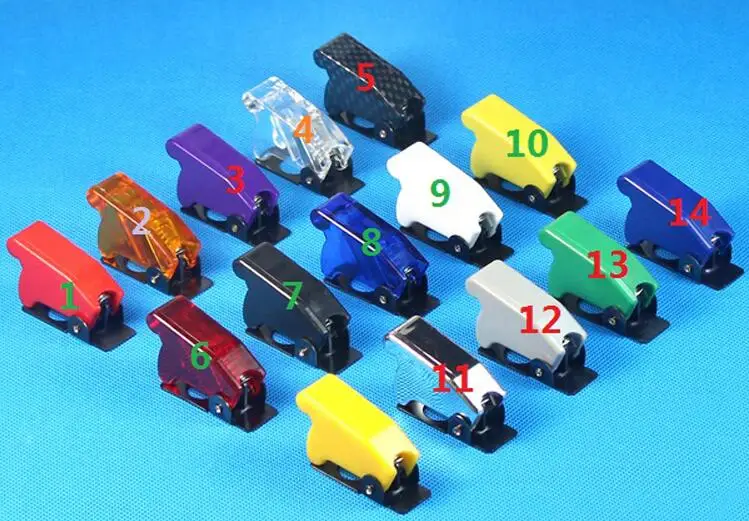

Single gross weight:	0.03 KG;	Cover Color:	Red/Green/Blue/Yellow/White (Others);
Max. Voltage:	12VDC;	Mechanical Life:	500000 CYCLES;
Single package size:	5X5X5 cm;	Product name:	Toggle Switch;
Material:	Metal;	Led Color:	Red/Green/Blue/Yellow/White (Others);
Brand Name:	ABILKEEN;	Package Preview:	https://sc02.alicdn.com/kf/He6945a19e2e54f1b8f333192e0be8d1ck.png_640x640.png;
Model Number:	KN-45;	Function:	ON-OFF;
Switch Type:	SPST;	Terminal:	Solder terminal;
Package Type:	12VDC 25A ON OFF LED Rocker Waterproof Colored Guard Cap Car Light Illuminated Toggle Switch Safety Cover 1: Neutral packing : inner box +carton 2: Upon customers' request;	Place of Origin:	Zhejiang China;
Max. Current:	25A;

12VDC 25A ON OFF LED Rocker Waterproof Colored Guard Cap Car Light Illuminated Toggle Switch Safety Cover

Product Details

Made by ultra strong and light weight aluminum alloy with carbon fiber face plate & red LED indicator.
- Comes with 1 set of engine start switch panel.
- Dimension : 5.9" (length) * 2.56" (width).
- Panel includes :
1x engine start button with red LED indicator.
1x on/off toggle switch with red aircraft style flip cover & red LED indicator.
3x toggle switches for additional use.
- Input voltage : DC 12V.
- Current : 30A.
- Comes with 1x engine start switch panel, 1x relay with wire, wiring harness and 4x screws.
- Professional installation is highly recommended.

Material:Base plastic---Nylon 66;Button plastic-PC or Nylon 66;
           Copper parts such as terminal----Copper H62;
           Terminal surface treatment----- tin plating;
           Contact----silver on copper ;
           Spring----Tungsten steel;
           Level handle ----Metal .

Silver Contact,PC,PA66 or Metal .

Used for home appliances and electronic equipment.

Product Name	Toggle Switch Safety Cover
Items	KN-45

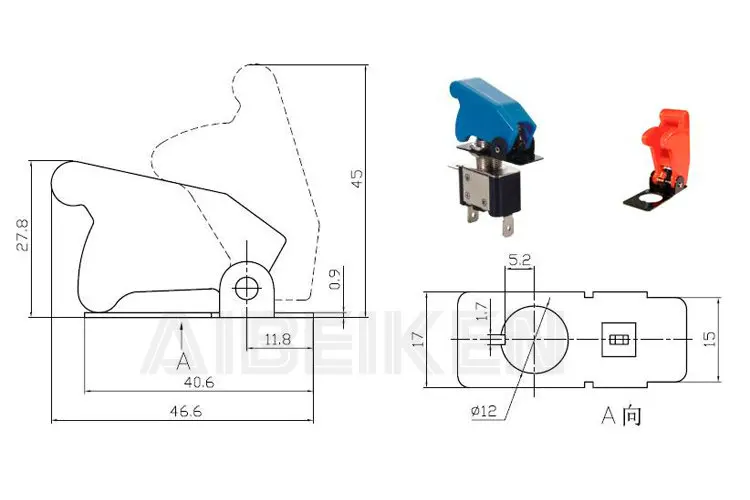

Mounting Hole	M12
Operation Type	Latching
Rating	20A 125VAC; 15A 250VAC
Dielectric strength	1000 V RMS (min)
Mechanical life	More than 50.000 cycles
Electrical life	More than 10,000 cycles
Operating Temperature	-25°C ~+80°C
Customized colored housing or Connector	Acceptable and with fast shipping
Necessary hardware	Metal washer, Locking tooth washer & Mounting nut.
Order Confirm	What lamp color? What cover color?
What You Get	1X toggle switch,Transparent Red Cover, Red Led

Q1. What is your terms of toggle switch packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

If you have any other questions, please send us an enquiry,we will reply you ASAP.
