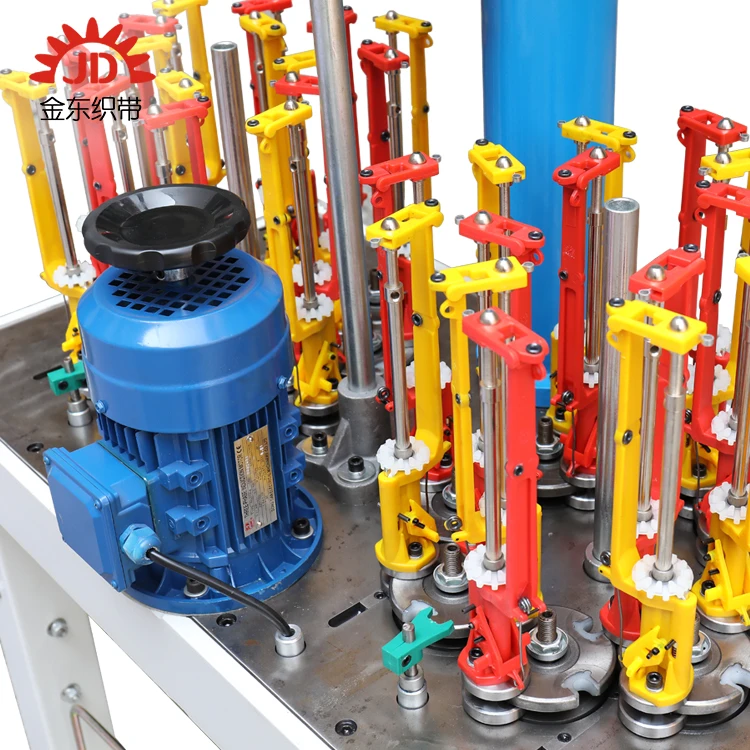

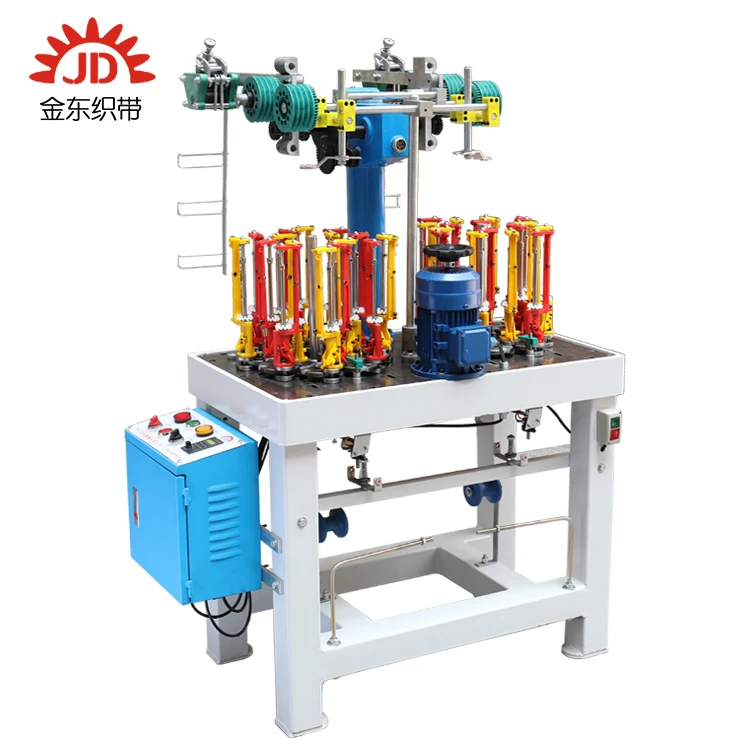

High Speed Big 16 Spindles Braiding Machine Flat Belt Braiding Machine

Supplier: Jinjiang Jindong Ribbon Co., Ltd.
Region: Fujian, China
Contact: Ms Linda Hao
Price: $3231.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Customzied.;	Power(W):	0.75KW;
MAX.R.P Homgear:	300;	Applicable Industries:	Manufacturing Plant;
Application:	Flexible;	Port:	Xiamen;
Bobbin Dimension:	47mm*158mm;	Keywords:	High speed braiding machine;
System:	Automatical Mechanical;	Payment Terms:	L/C,D/A,T/T,Western Union;
After Warranty Service:	Video technical support,Online support,Spare parts;	After-sales Service Provided:	Online support;
Motor power:	1HP(0.75KW);	Place of Origin:	Fujian China;
Supply Ability:	5000 Set/Sets per Month;	Dimension(LWH):	70cm140cm165cm;
Heads:	2;	Brand Name:	Jindong;
Warranty:	1 year;	Power Supply:	50HZ/60HZ Two Phase 380v;
Showroom Location:	None;	Gross Weight:	320kg;
Local Service Location:	None;

High Speed 16 Spindles Braiding Machine Flat Belt Braiding Machine Bobbin

Product Description

Product Uses

Details

Model	Heands	MAX.R.P homgear	Moto power	Bobbin Dimension	Power Supply
Model	Heands	MAX.R.P homgear	Moto power	Bobbin Dimension	Power Supply
JD1-16	1	300	220V/0.37KW	71mm×236mm 47mm×158mm	50HZ/60HZ Two Phase 380v
JD1-32	1		220V/0.37KW
JD1-48	1		380V/0.75KW
JD2-16	2		220V/0.37KW
JD2-18	2		220V/0.37KW
JD2-24	2	360	380V/0.75KW
JD2-26	2	300
JD2-27	2	360
JD2-32	2	300
JD2-36	2
JD2-40	2
JD2-40	2
JD2-9	2	360	220V/0.37KW
JD4-13	4	300	380V/0.75KW
JD4-16	4	360
JD4-16	4	360
JD4-8	4	300	220V/0.37KW

Company Information

Jinjiang Jindong Machinery Co., Ltd is located in Jintan chidian, Yutan, Jinjiang, Fujian. Established in 2004.
We, a professional manufacturer of ribbons that integrates product development, production and sales. Focus on the development and producting of the Braiding machine, Bobbin machine more than 10 years.
Strict product quality control, a variety of raw materials have been carefully selected, relying on advanced production technology and equipment and strict production to offer advantage service for you.

FAQ

1.Are you a factory or a trading company ?

We are a factory which has 10years + R & D manufacturing experience .

2.What is the most important thing to make sure before order?

Make sure machine working power is suitable.

3. What informations should I offer to get a detailed quotation from you?

A.Machine model,if you are sure this model can make your rope/ lace succesfully.

B.The rope and lace size and photo, and the yarn qty braided together, If neccessory, a rope/ lace sample better for making sure the correct machine model.

C.Machine photo you find from other factories.
