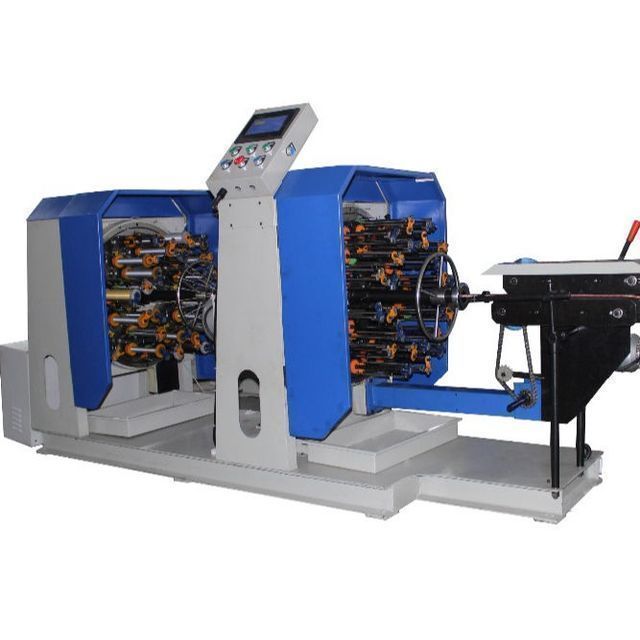

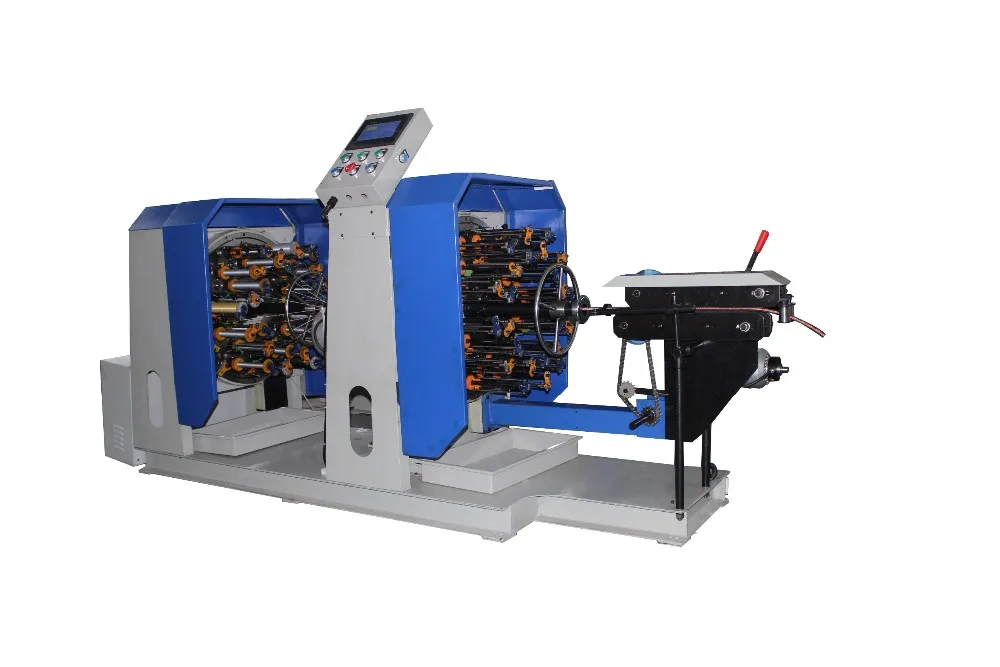

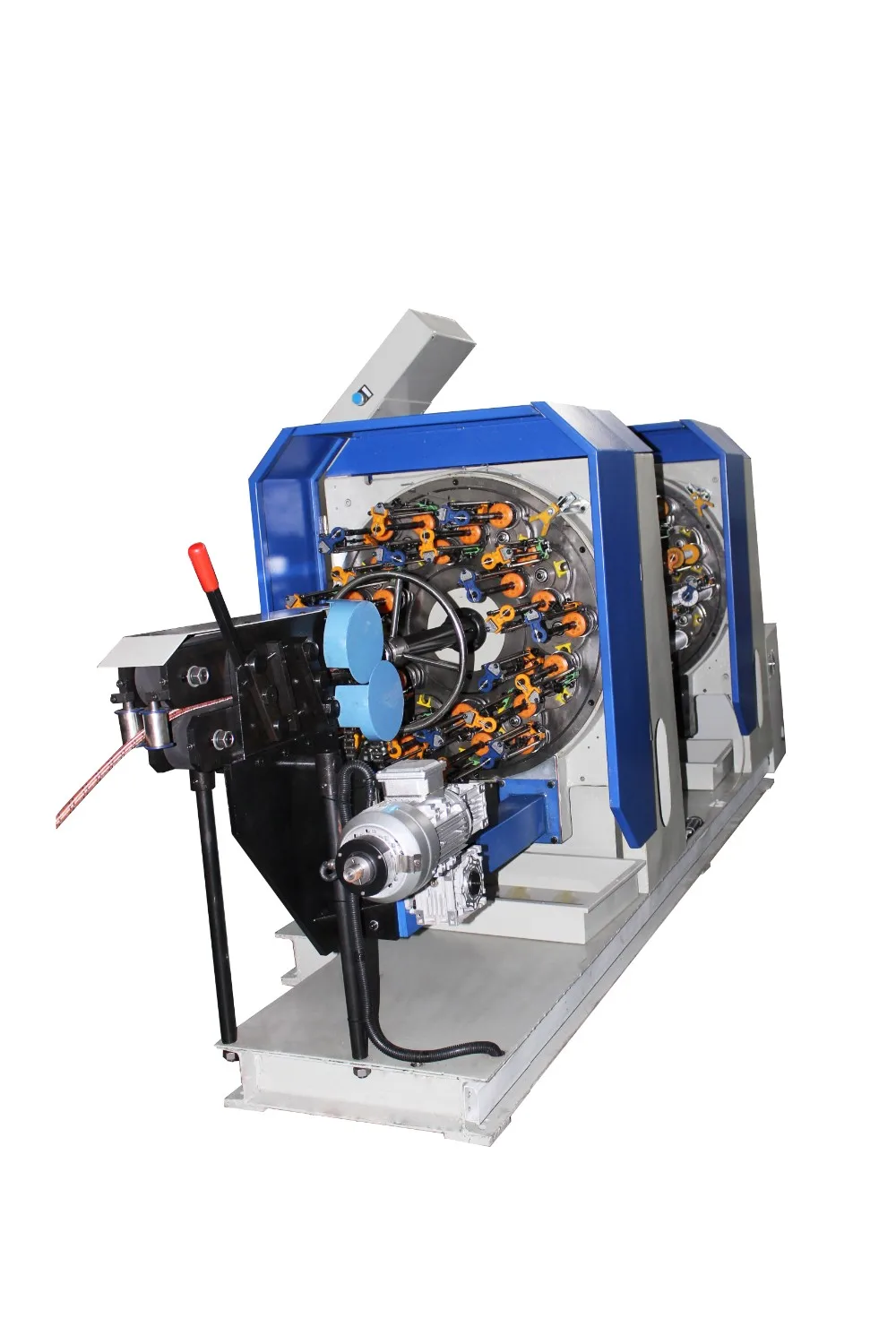

BenFa Motorcycle Brake Hose Braiding Machine

Product details
strength:300Applicable industries:Manufacturing plants, machinery repair shops, construction works
Dimensions (L*W*H):30*40Shaft speed:1400 rpm
Weight (kg):100 kgVideo shipment inspection:if
port:Ningbo, Shanghai, Hangzhoupayment terms:L/C, Western Union, T/T, MoneyGram
place of origin; place of origin:Zhejiang, ChinaCore components:Engines, bearings, pressure vessels
Core component warranty:1 yearMechanical test report:if
Move distance:0.2-6mm/0.2-8mmCertification:CE certification
Warranty:1 yearSupply capacity:99 pieces per month
State of health:newShowroom location:Egypt, United States
Voltage:380V/220Vbrand:this hair
Motor Power:2.2kw/3kwTypes of:Horizontal winding machine
Marketing Type:New Products 2020

Electric shower hose toilet hose winding machine

Product Description

BFHG-W Winding Machine is the supporting equipment of automatic braiding machine, which winds wire and stainless steel on the bobbin evenly and orderly. This machine is suitable for steel wire weaving hydraulic stainless steel wire mesh complete sets of factories.

main features
1. Automatically shut down when disconnected or empty.
2. Set the number of times of winding and stop automatically to ensure that the wire capacity of each bobbin is equal.
3. The control panel is fixed on the left side of the machine. The bearing housing and potentiometer control the winding speed.
4. Automatic shutdown when disconnected or empty, and the machine has a self-braking device.
5. The pressure plate is compressed pneumatically, and the winding does not retreat or unwind.

technical parameter



  BFHG-255A BFHG-255C
shaft speed 1400rpm (frequency conversion) 1400rpm (frequency conversion)
Motor Power 2.2kw/3 phase 3kw/3 phase
Voltage 380V/220V/50Hz 380V/220V/50Hz
moving distance 0.8-6.0mm (with adjustable pay-off machine) 0.2-8.0mm (with adjustable pay-off machine)
Spool size Bobbin diameter ≤ 100mm bobbin length ≤ 300mm Accept customization Bobbin diameter ≤ 100mm bobbin length ≤ 300mm Accept customization
Number of spools 1 1
Number of pay-off shafts 12 12
air pressure 0.4-0.7 MPa 0.4-0.7 MPa
servo motor   0.7 kW
