Maximum Braid Diameter: | 25mm | Spacing range: | 7.0~94.09mm |
Lubrication type: | Automatic Top Oil System | Host speed: | 960 rpm |
Control type: | microcomputer controller | Applicable materials: | Copper wire, iron wire, fiber wire, stainless steel wire |
payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Maximum speed: | 70rpm |
name: | E-type heavy-duty high-speed steel wire braiding machine | After-sales service provided: | Online support, on-site installation, commissioning and training, on-site maintenance and repair services |
Packaging Details: | The high-speed steel wire braiding machine is packed in a standard wooden box, suitable for sea and rail transportation | Supply capacity: | 30 sets/month high-speed steel wire braiding machine |
port: | Shanghai | AC motor drive power: | 4.0KW |
Warranty: | 1 year | Pay-off line: | 1250mm~1600mm |
Specification:
No. | des. | Technical data | ||
16E | 24E | |||
1 | Braided | 2×2 | 2×2 | |
2 | Weaving direction | vertical | vertical | |
3 | Upper spindle (pcs) | 8 | 12 | |
Lower spindle (pcs) | 8 | 12 | ||
4 | Spool Size(mm) | Φ110*Φ48*100*110 | Φ110*Φ48*100*110 | |
5 | Speed (rev/min) | 15-70 | 15-50 | |
6 | Pitch (mm) | 7.0-94.09 | 9.02-138.8 | |
7 | maximum. Finished Wire Diameter (mm) | Φ25 | Φ45 | |
8 | Metal wire diameter (mm) | 0.15~0.40 | 0.15~0.40 | |
9 | main motor | power frequency | 4.0 kW 50 Hz | 5.5 kW 50 Hz |
Voltage | 380 volts, 12.6 amps | 380 volts, 12.6 amps | ||
speed(rpm) | 960 | 960 | ||
10 | Noise (decibel) | ≤85 | ≤85 | |
11 | Dimensions (mm) | 1737*1535*2305 | 2195*1853*2545 | |
12 | net weight/kg) | 3200 | 4500 | |
13 | Extra take-up and pay-off line(mm) | Φ1250-1600 | Φ1250-1800 |

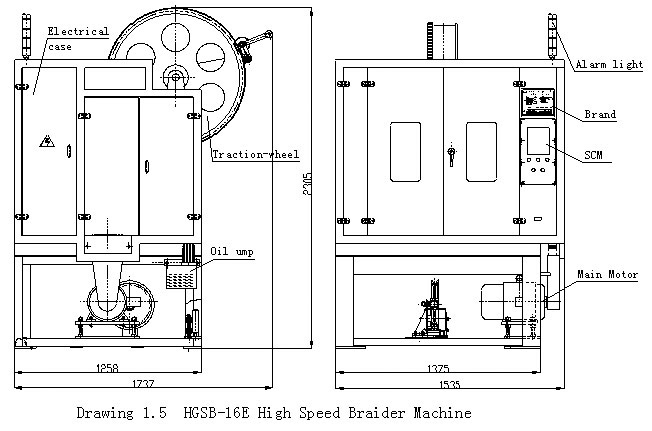

Layout of 16E heavy wire braiding machine:
application:
This heavy duty high speed braider machine features programmable frequency control technology. Computer-controlled machine, smooth timing, high-speed weaving, automatic fault display. At the same time, the noise is low, the reliability is strong, and the wear resistance is good. The main shaft has an automatic tension control mechanism, an automatic lubrication system and a safety fire cover. This machine can braid copper wire, and other metal wires, such as Mg-AL, alloy wire stainless steel, etc. The volume of the main shaft of this machine can be loaded to 5 kg when it is loaded to capacity. Compared with other models, this machine does not need to replace the spring, and only needs to fine-tune the spring tension when changing wires of different specifications.
