Dimension(L*W*H): | 300*500*200; | Condition: | New,New; |
Brand Name: | BF; | Supply Ability: | 100 Pieces per Month; |
Motor Power: | 0.75kw; | Marketing Type: | New Product 2020; |
Payment Terms: | L/C,Western Union,T/T,MoneyGram,Paypal; | Weight: | 280kg; |
Color: | white; | Port: | Ningbo, Shanghai, Hangzhou; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ; | Carrier qty: | 16pcs; |
Machinery Test Report: | Provided; | Warranty of core components: | 3 years; |
Video outgoing-inspection: | Provided; | Material: | Steel wire,stainless steel wire; |
Place of Origin: | Zhejiang, China; | Showroom Location: | Egypt,Turkey,United States,France; |
Core Components: | Engine,Bearing,Motor; | Carrier RPM: | 55rpm; |
Weight (KG): | 100 KG; | Power: | 200; |
Warranty: | 1 Year; |
20120 the newest factory parachute cord braiding machine

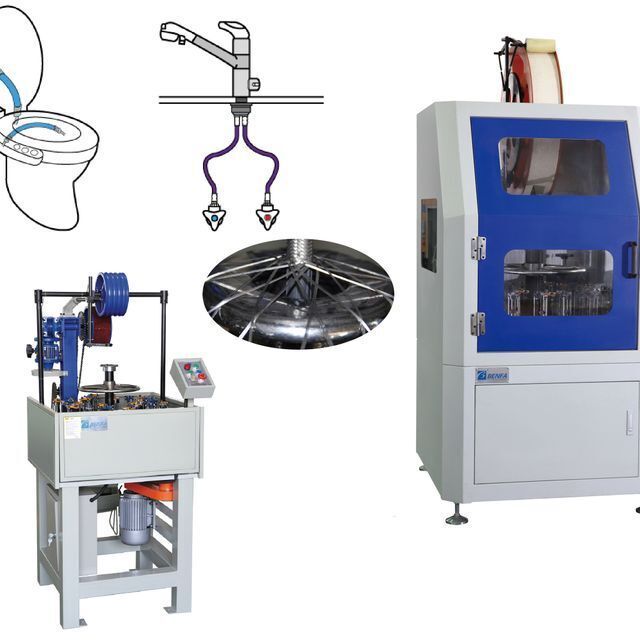

Real product show
Introduce

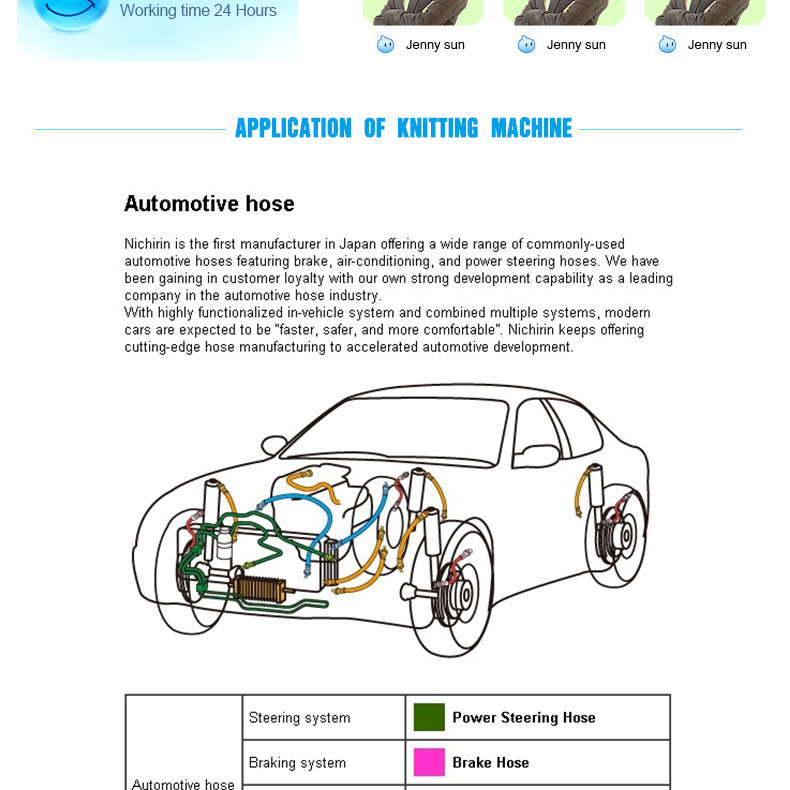

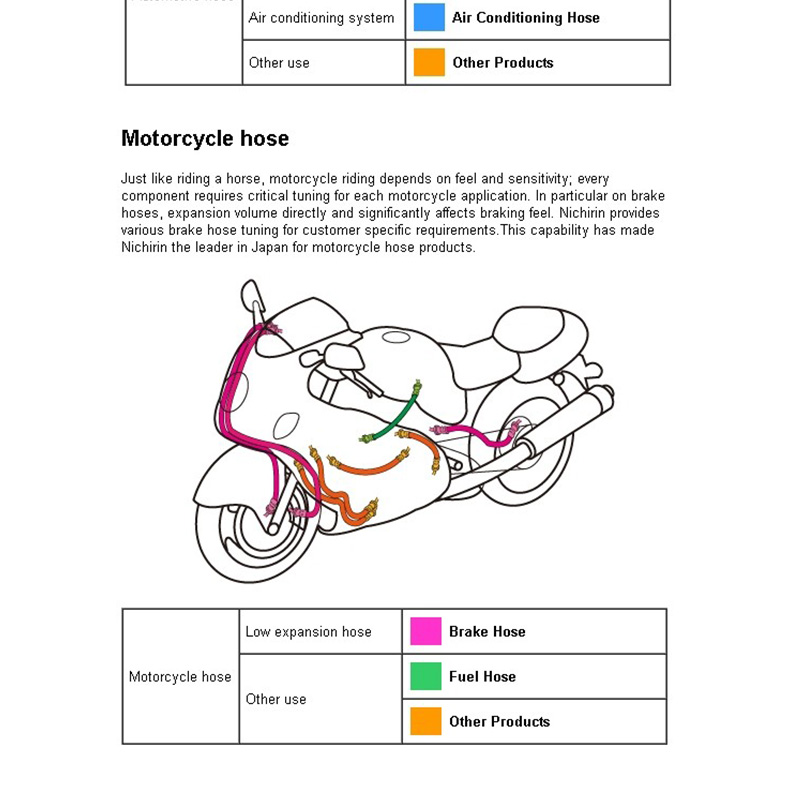

BFB-B vertical automatic hose braiding machine series(BFB-90 110 114 130 140 160 200 300)is a new set of automatic braiding equipment which is design and improved based on digesting and absorbing foreign advanced technology. The machine is widely used in company which produce wires .cable .weaved rubber tubes which endure high pressure .weaved rubber water hose .braid ropes .tubes used in cars and motorbikes and rubber &plastic tubes in the sprayer ,teflon hose high pressure. The machine has the following features:
1) high automatic extent broken ,empty bobbin or no tube automatic machine self-closed
2) adopt adjustable speed to accommodate pitch ,don’t need to change gear
3) High efficiency production three times than present usual machine per hour ,the max production reach to 98m/hour
4) Low noise ,transmission and pulling system adopt absorbing sound ,reducing shake and inserting equipment.
5) Easy maintenance ,transmission flexible structure easy install and remove
6) Spindle adopt elastic and adjustable equipment ,depentable position,easy,convenient and flexible install bobbin
7) Small abrasion and long using life take key part used excellent material adopt heat treatment and lubricant equipment.
Parameters
BFB16L-114B | BFB24L-114B | BFB36L-114B | BFB48L-114B | |
Motor power | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
Voltage | 3 Phase 380V | 3Phase 380V | 3Phase 380V | 3Phase 380V |
Spindle RPM | 55RPM | 45RPM | 36RPM | 20RPM |
Traction RPM | 5.26-26RPM | 4.26-18.5RPM | 2.13-10.8RPM | 0.13-0.58RPM |
Take Up Reel | Attachment | Attachment | Charge for take up reel | Charge for take up reel |
Hose Diameter | ≤16mm | ≤24mm | ≤36mm | ≤48mm |
Traction Gear | 200 | 200 | 800 | 800 |
Spindle NO | 16 Spindle | 24Spindle | 36Spindle | 48Spindle |
Weight | 280kg | 305kg | 680kg | 48kg |
Bobbin Size | Out edge 56× Inner edge 22×High170mm Cubage:354cm3 | |||
Apply |
Change spindle can braiding wire and yarn |
|||
Dimenson | 620*500*1580mm | 890*720*1680mm | 1100*1000*1780mm | 1500*1300*2100mm |
Welcome to purchase our product!
