Steel inner & outer corner armor machine

Product details
Machine dimension:1800x1200x1300mm;Material of roller shafts:38CrMoV, D76mm, quenched HBS240-260;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Supply Ability:10 Set/Sets per Quarter;
Place of Origin:Zhejiang China;Packaging Detail:Steel inner & outer corner armor machine will be packed with sea worhty wooden case;
Production speed:6-12m/min;Guarantee:One year since the date of B/L;
corner protection:anglebead;Inner ring diameter:450-500mm;
Raw material thickness:0.4-2.0mm;Port:Shanghai;
Brand Name:ZHENHUAN;Outer ring diameter:800-2300mm;
Package:Wooden case special for export;Suitable raw material:galvanized steel strip, mild steel;

steel inner & outer corner armor  is suitable for forming inner & outer cornerarmor which is used in packing steel coils.

Roll forming machine is PLC control, full automatic.



Main technical data for steel inner & outer corner armor :



Name

Power supply

Working speed

raw material thickness

Remarks

Angle forming machine

7.7kw

8m/min

0.4mm~2.0mm

decoiler, roll forming auto-cutting

Dimension: 4000*1000*1300mm

Inner cornerarmor forming machine

5.5kw

6m/min

0.8mm~2.0mm

Ring diameter: Φ450-500

Dimension: 1600*1200*1300

Outer cornerarmor forming machine

4kw

12m/min

0.4mm~1.2mm

Ring diameter: Φ800-2300

Dimension: 1800*1200*1300



1) Power supply: 380V, three phase

2) Raw material: galvanized steel strip

3) Total weight: about 2800kg

4) Material of roller shafts: 38CrMoV, Φ76mm, quenched HBS240-260

5) Forming roller: GCr15,vacuum treatment HRC52-54

6) Beading roller: Cr12MoV,vacuum treatment HRC56-58

7) Cutting mould: Cr12MoV,vacuum treatment HRC56-58

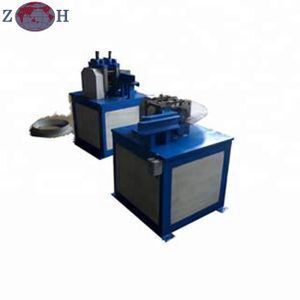

More steel inner & outer corner armor photo:



We Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit. We

can provide you not only good quality machines but also good after-sale service. We have 15 years experience in trading machine.
