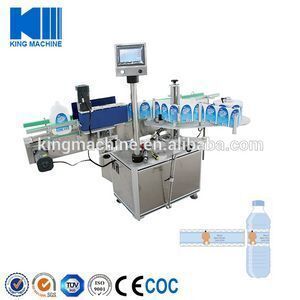

Automatic Label Sticking Machine for bottles&cans

OPP Hot Glue Labeling Machine.

1/Body is built with stainless steel, aluminum alloy and square steel tubes.
2/welded tubes ensure stable and smooth operations at high speed performance.
3/Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.

4/Round plate type suction label.
5/Automatically detect and adjust the production speed
6/Emergency Stop Safety Device disables the machine when senses an abnormality.
7/Automatic tension control.
8/Automated label proofreading and Cutting System.

9/Automatic warning system and alarm will be activated when it is out of label.

Automatic Cold Glue Labeling Machine.

1 / This equipment used PLC micro-computer software control system, which has powerful memory function, and able to pre-setting 50 group of labeling parameters.
2 / It is simple and quick operation. The label controlled by mutual inductance stepper motor. It ensures that the speed of sending label is sames as the imported inverter, to ensure that the machine's stability and reliability.
3 / Stainless steel frame construction and components are standard;
4 / Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling

Basic purpose:
It can be used for a variety of cylindrical objects, small taper round bottle full roll or half roll, front and back double-standard labeling, such as food cans, cosmetics round bottles, medicine bottles; Can match with ribbon coder, therefore it can print production date.

Steam generator for Shrink Sleeve Label Machine.

The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

ShrinK Tunnel for Shrink Sleeve Label Machine.

In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.

Flat conveyor for Shrink Sleeve Label Machine.

1.Side panel: 304 stainless steel wire-drawing sheet, thickness is 2.5mm.
2.Motor: Hangzhou Jie brand
3.Supporting leg: 304 stainless steel pressing structure
4.Trunking and cover: 304 stainless steel, thickness is 1mm.
5.Chain plate: Domestic high-quality plastic chain plate, polyoxymethylene (POM).
6.Bearing housing: 304 stainless steel cage

Different Labels for Different Labeling Machine.

1/PVC/PET shrink film label.

Widely used in food, beverages, mineral water and daily products.

Material: PVC heat shrinkable film, PET heat shrinkable film.

PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;

PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;

Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors

2/Sticker label.

Material: Coated paper, Synthetic paper, BOPP.

Color: Up to 9 colors.

3/OPP label.

Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%

<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.

<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.

<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
