Payment Terms: | L/C,T/T; | Port: | SHANGHAI PORT; |
Mould material: | SAE1045; | Warranty: | 12months; |
Production capacity: | 1200~1600pcs/hour for 500ml; | Automation: | semi-automatic; |
Brand Name: | KING MACHINE; | Model Number: | KM-B2; |
After-sales Service Provided: | available; | Packaging Detail: | export seaworthy package; |
Delivery Detail: | in 30 days after receipt of the advanced payment; | Application: | Semi auto PET Bottle Blower; |
Supply Ability: | 20 Set/Sets per Month Semi auto PET Bottle Blower; | Place of Origin: | Jiangsu China; |
Semi auto PET Bottle Blower
It is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Description of Semi auto PET Bottle Blower :
The Semi auto PET Bottle Blower is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast. Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The line is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The line can be operated in the step-by-step mode and the semi-auto mode.
5. The line is small with low investment, easy and safe to operate .
Technical Parameters of Semi auto PET Bottle Blower :
Name | Item | Unit | Details |
Semi-automatic PET Bottle Blowing Machine / Blowing Line / Blower | Dimension | mm | 1600*600*1610mm |
Weight | kg | 500 | |
Bottle volume (max) | ml | 2000 | |
Bottle volume (min) | ml | 50 | |
Bottle Neck Diameter (max) | mm | 40 | |
Bottle Neck Diameter (min) | mm | 18 | |
Body Diameter (max) | mm | 125 | |
Body Height( max) | mm | 420 | |
Number of Cavities | mold | 2 | |
Production output | pcs/h | 1200-1600BPH | |
Clamping force | T | 5.7(56KN) | |
Mold thickness | mm | 200(max) | |
Mold width | mm | 360x390 | |
Space between Tie-bars | mm | 120-220 | |
Diameter of Tie-bars | mm | 63 | |
Scope of Tie-bars | mm | 405 | |
Mold stroke | mm | 160 | |
Stretching stroke (max) | mm | 420 | |
Working pressure | Mpa | 0.8-1.0Mpa | |
Blowing pressure | Mpa | 2.0-3.0Mpa | |
Voltage/Power | V/KW | 220V/1KW | |
Weight | Kg | 500 | |
Pre-heater
| Dimension | mm | 1870*630*1450mm |
Weight | kg | 260 | |
Voltage/Power | V/KW | 380V/14KW |

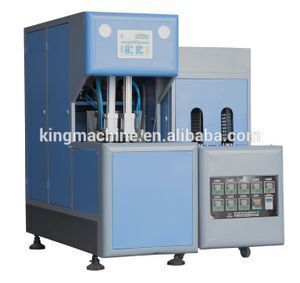

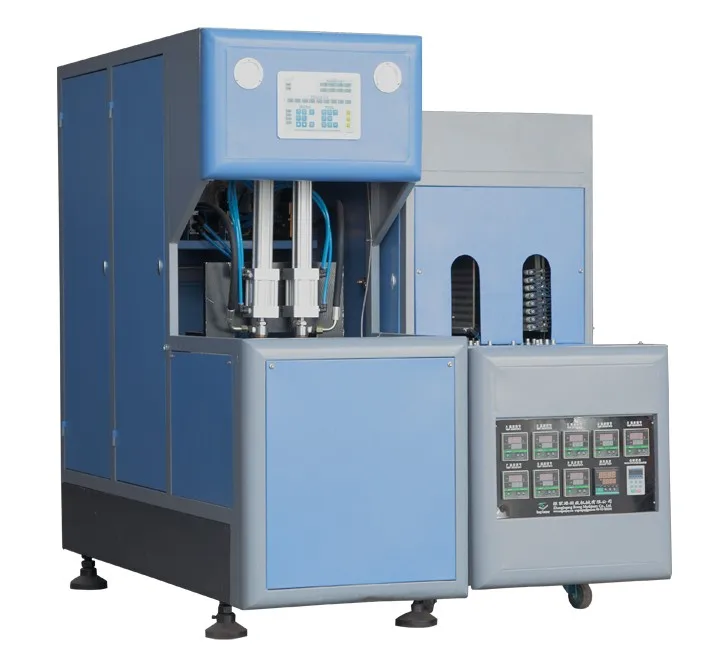

Product photos
