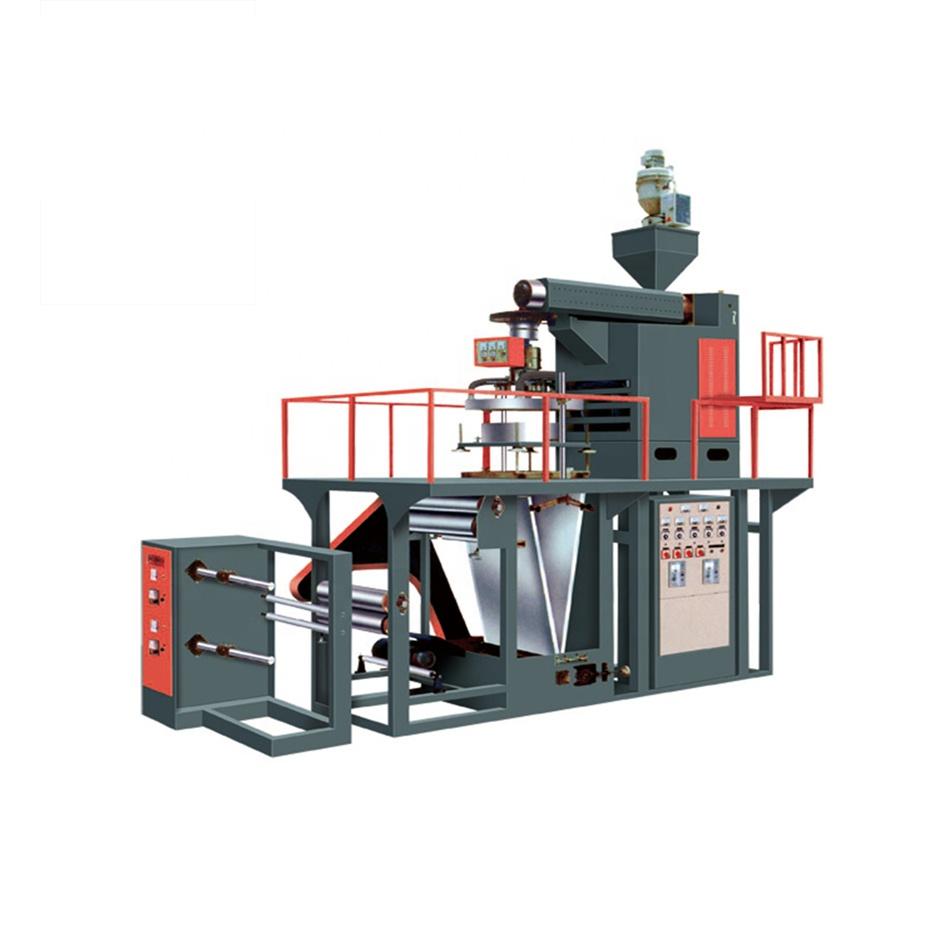

PP FILM BLOWING MACHINE

Product details
Blow molding type:extrusion blow moldingWinder:Double rewinder
Video outbound inspection:ifDimensions (L*W*H):4.2*2.5*4.0m
Supply capacity:30 sets per monthbrand:Jiamao
Main selling points:high productivityCooling type:water cooling
Package preview:Origin:Zhejiang, China
port:Ningbo/ShanghaiCore components:Gearbox, motor
weight:3000Packaging Details:plastic film/wooden box
Warranty:1 yearCore component warranty:1 year
Die head:Rotary dieHealth status:new
Voltage:220V/380V/410Vstrength:35 kW
Marketing Type:normal productpayment terms:L/C, T/T
Air compressor:1 setYear:2022
Plastic processing:PolypropyleneApplicable industries:Manufacturing plants, food and beverage plants, farms, food stores, print shops, food and beverage stores
Showroom location:not anyapplication:Movie
Mechanical test report:if
Product Description
Specification
Model
SJ-55/FM600
Screw diameter
55mm
Screw ratio
Long diameter/diameter 28:1
Screw speed
10-120 rpm
main motor power
15 kW
Head rotation method
keep spinning
maximum output
35kg/hour
Maximum folding width of film
600 mm
film thickness
0.01-0.15 mm
total power
35 kW
machine weight
2900 kg
Dimensions (L*W*H)
4.2*2.5*4.0m
Packaging and Shipping
plastic film/wooden box
