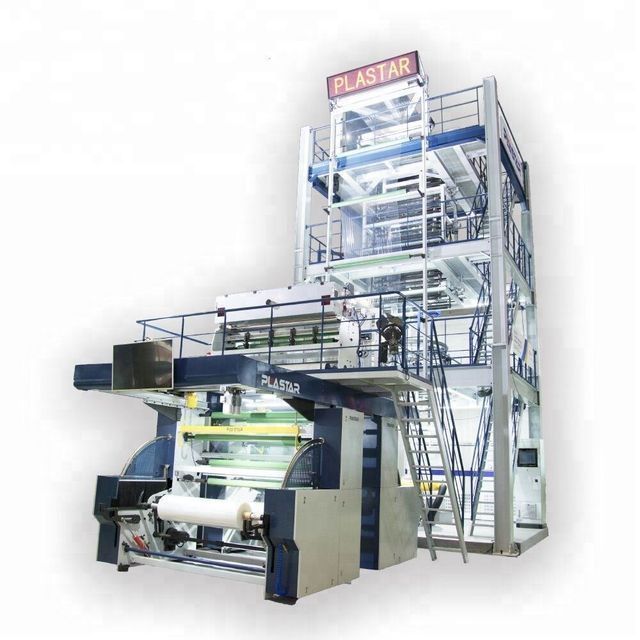

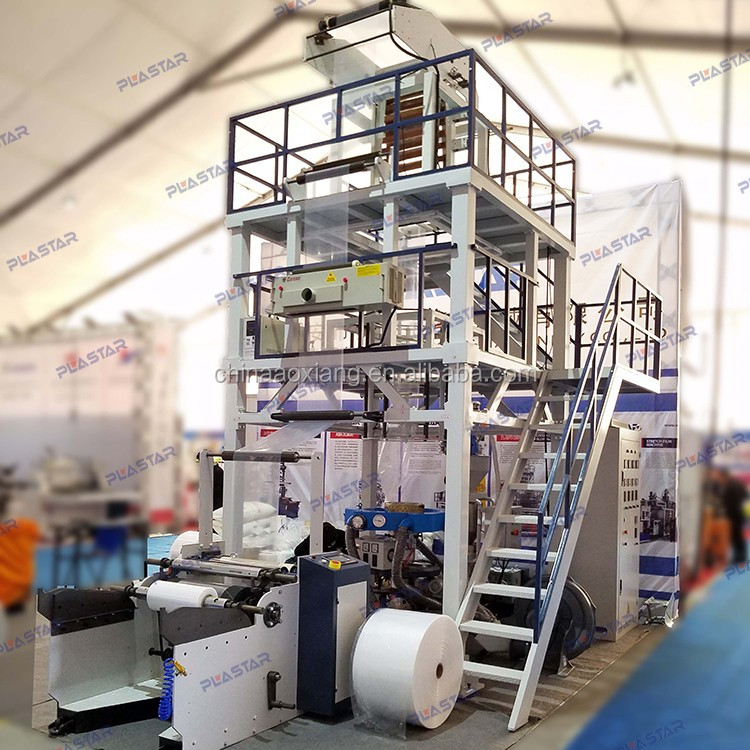

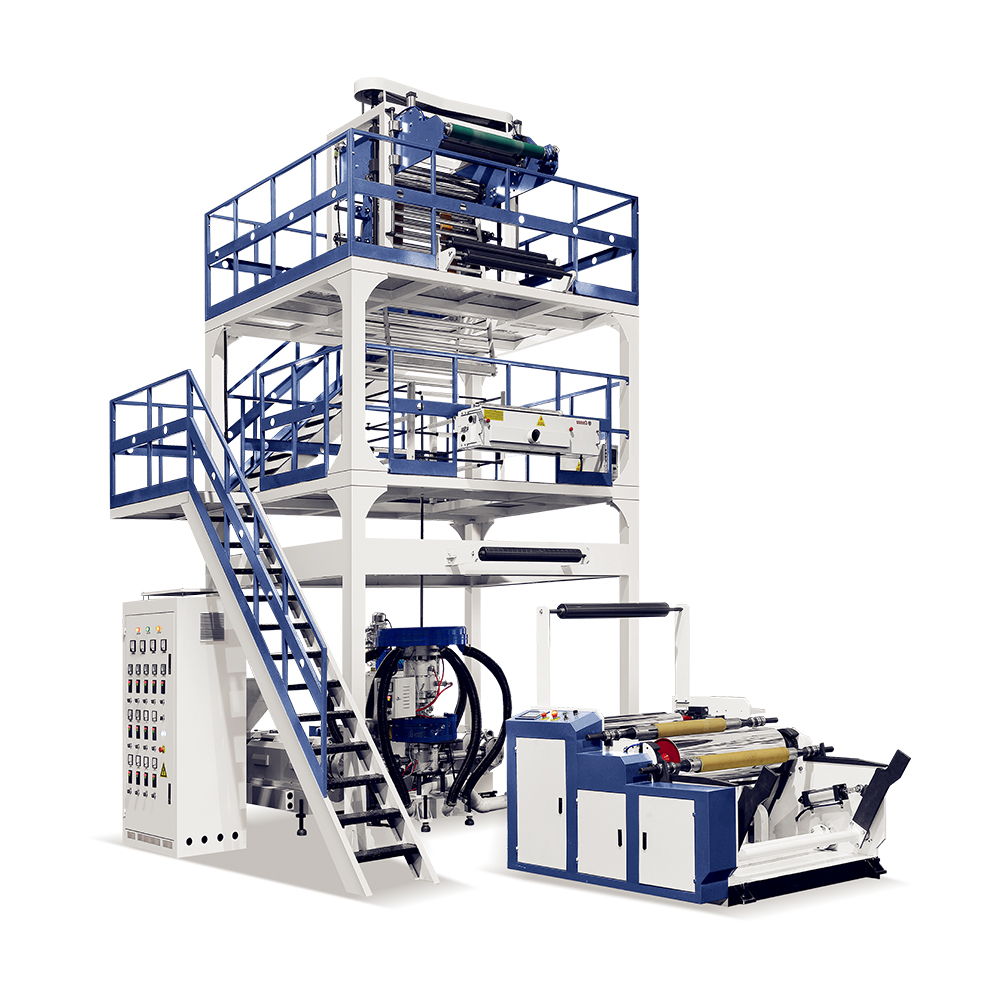

ABC three-layer PE co-extrusion blown film machine

Supplier: Wenzhou Aoxiang Packaging Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Lidu Su
Price: $120000.00 / 1 - 4 sets
$110000.00 / 5 - 9 sets
$100000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Origin:	Zhejiang, China	Blow molding type:	extrusion blow molding
Applicable industries:	other	weight:	8000
Year:	2019	After warranty service:	online support
Marketing Type:	hot product	Voltage:	380V
application:	Movie	Main selling points:	automatic
Warranty:	1 year	Plastic processing:	HDPE, LDPE
payment terms:	L/C, T/T	Video shipment inspection:	if
color:	Blue and white	brand:	plastic star
Packaging Details:	plastic film and wood	Supply capacity:	30 sets per month Click for more information
Core component warranty:	1 year	Health status:	new
automation:	automatic	Dimensions (LWH):	94.510 meters
strength:	200KW	port:	Ningbo, Shanghai
Core components:	other	Mechanical test report:	if
Showroom location:	not any

Product Description

Applications

The ABA three-layer co-extrusion film blowing machine production line produced by our company can achieve more energy-saving and more flexible production applications at a lower cost. ABA three-layer co-extrusion film blowing machine production line, two main motors provide three-layer extrusion. One host provides the inner and outer coatings, and the other host provides the inner filling layer. The purpose of reducing the number of hosts, reducing costs, reducing consumption and saving energy can be achieved.

Model	SD-2LABA800	SD-2LABA1000	SD-2LABA1200	SD-2LABA1500
Applicable material	HDPE/LDPE
Film width	800mm	1000 mm	1200 mm	1500 mm
membrane thickness	0.008 - 0.1mm				0.08 - 0.15mm	0.08 - 0.15mm	0.02 - 0.2mm
maximum. output	100 kg/h	120 kg/h	120 kg/h	200 kg/h

extruder
Screw diameter	55mm; 55mm	55mm; 55mm	55mm; 65mm	55mm; 75mm
Screw aspect ratio	30:1
barrel cooling	water cooling
main motor power	22 kilowatts; 22kw	30 kW; 30 kW	22 kW; 37 kW	22kw; 45kw
total power	70kw	100 kW	100 kW	105 kW
Die
Die type	Three-layer ABA die head
wind ring	lip air ring
Traction roller width	1000 mm	1200 mm	1400 mm	1700mm
effective width	800mm	1000 mm	1200 mm	1500mm
traction speed	120m/min				100m/min	100m/min	80 m/min

winding device
airfoil	Friction Automatic Single/Double Winder				SD-60	SD-65	SD-80
Winding speed	120m/min				100m/min	80 m/min	60m/min
Voltage	380V, 50Hz				0.08 - 0.15mm	0.08 - 0.15mm	0.02 - 0.2mm
aspect	500030006500mm	600040007000mm	600040006500mm	600040008500mm
weight	4.5 tons	5 tons	5 tons	5.5 tons

main extruder

Name: Main motor/gear box/screw/screen changer/die head
Country of Origin: China

The main extruder plasticizes the PE material and controls the important parts of the material. Die technology determines film quality.

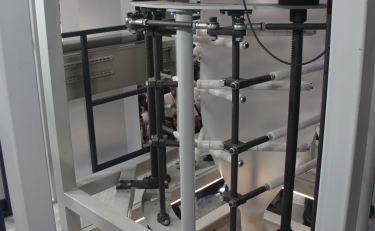

bubble stabilizer

Structure: round.

Adjustment method: manual.

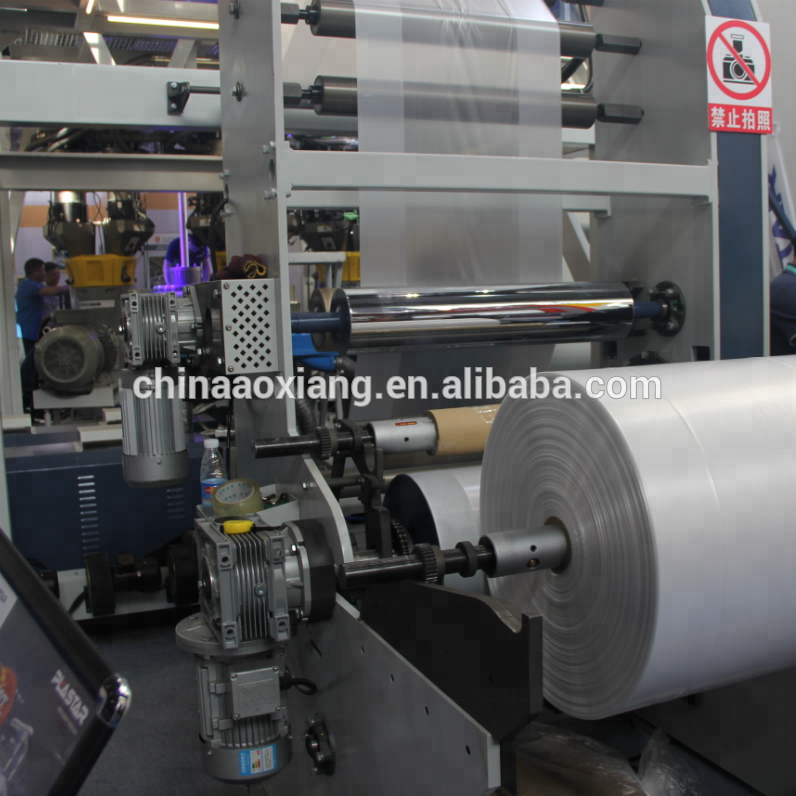

Manual single winding machine

Main winding motor: 1.1kw

Main winding motor inverter: 1.1kw

Main winding steel roll: 1

Specifications are subject to change without prior notice Mini 600mm HDPE Plastic Bag Film Extrusion Machine is a standard blown film machine, usually we have 2-3 machines in stock, if you need a ready made machine, please confirm with us first.

main feature

1) Simple structure, automatic device, easy installation and maintenance.

2) A machine with high output and stable operation, the maximum output: 50kg/h.

3) Using new materials, the machine can make thin films, thickness: 0.006mm.

4) Loss-in-weight weighing system to control extrusion volume and thickness. g/m.

5) The take-up roller can handle heavy film rolls. The maximum film diameter can reach 1100mm.

6) Easy-to-change membrane roller design, when the membrane roller is full, just move the arm to replace the air shaft. And easy to cut.
