Water jet cutting machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $27000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. cutting thickness:	55mm (granite and marble);	Rated flux:	3L/min;
Warranty:	1 year;	Processing accuracy:	+/-0.1mm;
Packaging Detail:	The water jet cutting machine can be packed in one 20GP container;	After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Key Selling Points:	Automatic;	Weight (KG):	2000;
Port:	shanghai;	Supply Ability:	5 Set/Sets per Month;
Place of Origin:	China;	Year:	2019;
Cutting speed:	160mm/min;	Stoke of Z axle:	150mm;
Certification:	variety;	Brand Name:	ZHENHUAN;
Dimension(LWH):	work size 1.3 x1.3M;	Condition:	New;
Rated Power:	customized;	Main motor:	AC servo motor, 22kW, 380V, 50Hz, from Taiwan;
Rated water-jet pressure:	380MPa;	Payment Terms:	L/C,T/T;
Re-positioning accuracy:	+/- 0.01mm;	Workable area:	1300x1300mm;
Max. dimension of working piece:	1300 x 1300mm;	Voltage:	Customized;
Applicable Industries:	machinery;

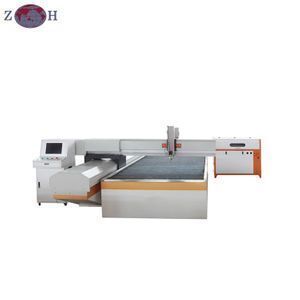

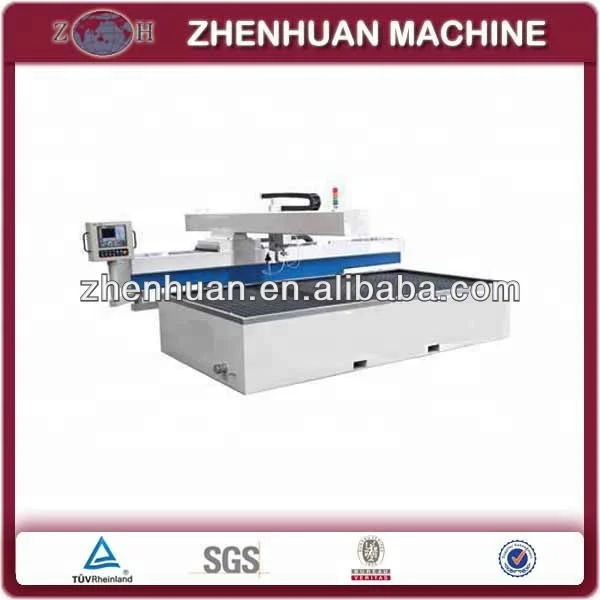

Water jet cutting machine

Water jet cutting machine compose with superhigh pressure water pump, CNC control system, cutting worktable and sand auto feeding system. Owing to water jet cutting machine is cold cutting, not use noxious and dangerous gas, capacity of big thickness and high precision, it windly use for cut metal, stone, glass, plastic, rubber and wood etc.

I Main technical data:

1 Workable area: 1300x1300mm

2 Stoke of Z axle: 150mm

3 Max. dimension of working piece: 1300 x 1300mm

4 Max. cutting thickness: 55mm (granite and marble)

5 Cutting speed: 160mm/min

6 Main motor: AC servo motor, 22kW, 380V, 50Hz, from Taiwan

7 Rated water-jet pressure: 380MPa

8 Rated flux: 3L/min

9 Type: cantilever/grantry

10 Control system: special control system developed by domestic, based on WINDOWS

11 Re-positioning accuracy: +/- 0.01mm

12 Processing accuracy: +/-0.1mm

II Main constituent part:IWM 380Mpa supercharger from USA, servo cnc control system from China, 170L auto sand feeding system driving by compressed air 0.3-0.4Mpa.

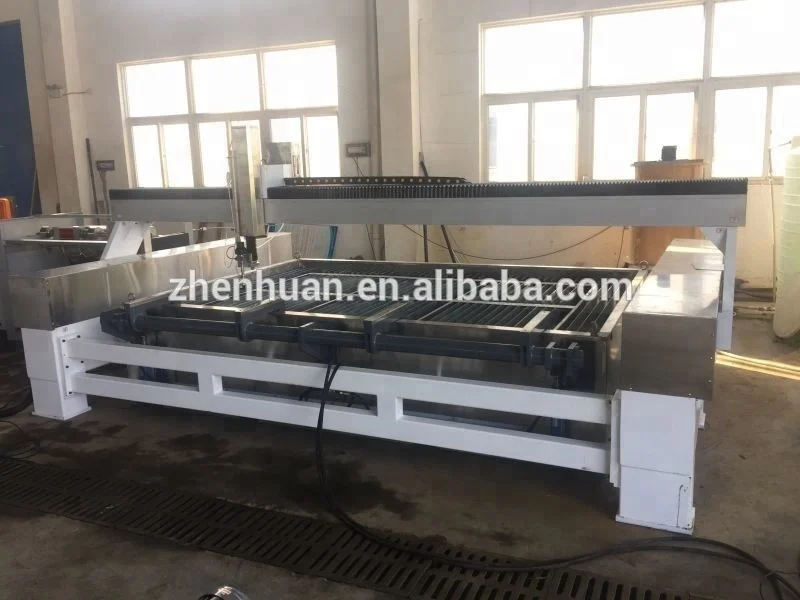

Cutting machine can be gantry type and suspend arm type. Size of workable area can
be altered according to customer's requirements.
