GRP FRP Fiberglass tube pipe winding machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product diameter range:	300-4000mm;	After-sales Service Provided:	Field installation, commissioning and training;
Weight:	2t;	Brand Name:	CNZHENHUAN;
Colour:	as customer requirement;	Dimension:	14mX2mX2m;
Supply Ability:	30 Set/Sets per Year;	Calculate and design method:	automaticlly;
Port:	Qingdao;	Warranty:	1 year;
Max. Fiberglass sheet width:	250mm;	Place of Origin:	Jiangsu China;
Payment Terms:	L/C,T/T;	Total capacity:	7.5kw;
Packaging Detail:	The grp pipe winding machine could be on one 20 foot container;	Product length:	Max.12000mm;
Control system:	PLC;	Max fiberglass feeding speed:	120m/min;

GRP Pipe Winding Machine

The grp pipe winding machine is popular for site work, It is controlled by PLC. After input/preset the parameter, the computor can calculate and design the product data automatically, then control the rotating speed of moulds and moving of dolly to achieve loop winding, across winding and spiral winding.

I Main technical data of the grp pipe winding machine

3.1 Total capacity: 3kw

3.2 Product diameter range: 50-300mm

3.3 Product length: Max.6000mm

3.4 Max fiberglass feeding speed: 120m/min

3.5 Max. Fiberglass sheet width: 200mm

II Main configuration of the grp pipe winding machine

1- Winding working table 6m long, include decelerator, motor and chain, one set

2- Winding driving head, include decelerator, gear/chain,motor, encoder, one set

3- Movable tank body, supporting rack, one set

4- Winding dolly, one set

5- Comb type glue dipping machine with glue control system, one set

6- Tensile fiberglass rack, one set

7- Computer[touch screen] and main control box, one set.

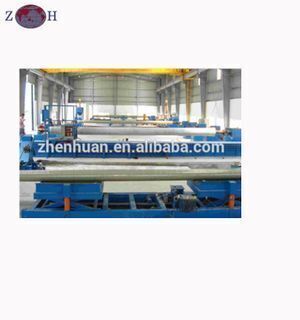

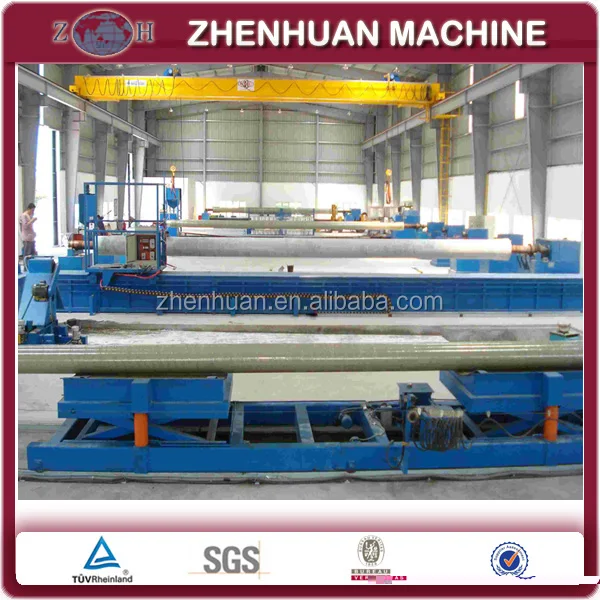

III Photos of the grp pipe winding machine working

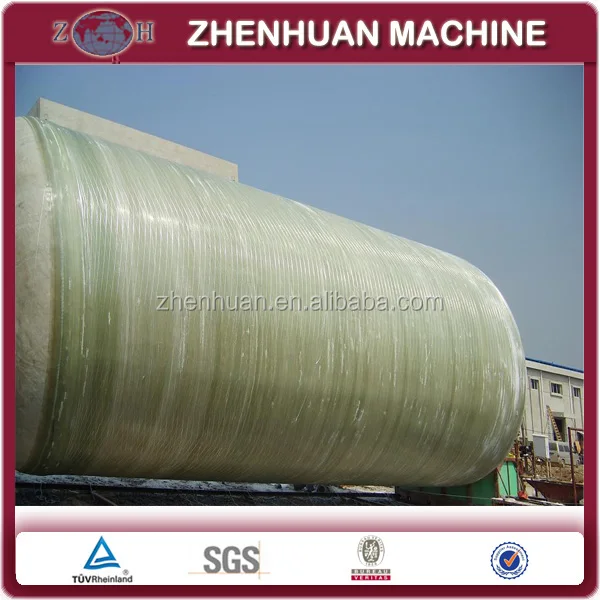

IV Sample photos made by the grp pipe winding machine

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machines for more than 10 years. We can provide you good quality grp pipe winding machine as well as good services.
