Adjustable bed parts FY013 8000N

Supplier: Wuxi Jdr Automation Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Johnny Zhu
Price: $20.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Place of Origin:	Jiangsu China;	Protect Class:	IP54;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Delivery Detail:	Negotiable , usually 5~7 days , depends on the order quantity;
Shape:	Linear;	Supply Ability:	10000 Set/Sets per Month;
Packaging Detail:	Carton box , size depend on the strokes of linear actuators;	Model Number:	FY013;
Working:	25000times;	Applications:	Medical Bed , Furniture;
Port:	Shanghai;	Color:	Black or Grey white;
Power:	DC;	Warranty:	2 years;
Brand Name:	JDR;	Function:	Driving;
Application:	Furniture equipment,sofa bed;	Certification:	CE;

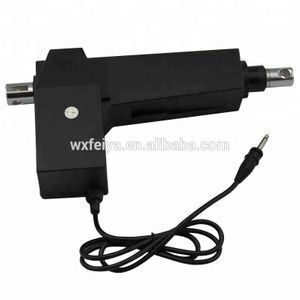

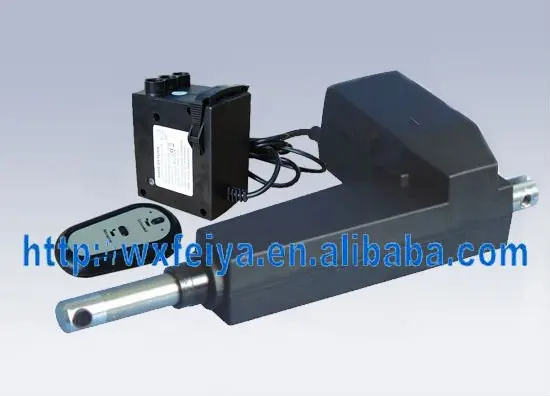

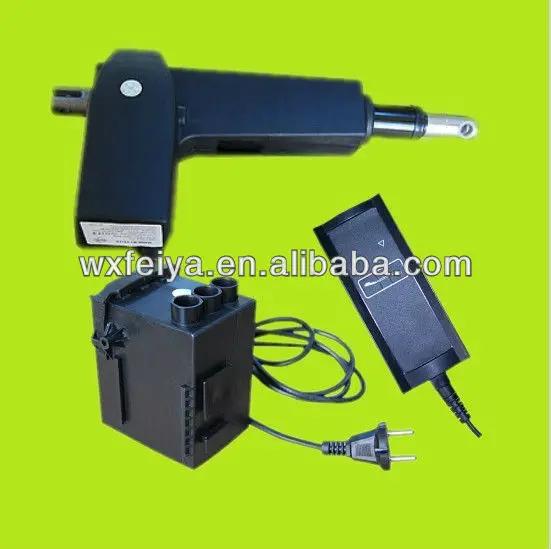

Linear Actuator for Nursing bed ,Salon bed

FY013 series of linear actuators have the same basic performance as FY012 , with higher load capacity which make it the best choice to be used in medical and industrial area .

Features :

1) Chrome Plated Piston Rod eye with slot

2) Scratch and wear-resistant powder

3) Stainless Steel Back Fixture

4) Strong wear and corrosion resistant Stainless Steel Inner Rod

5) High Strength Plastic Housing and Gears

6) Elegant and compact design with small installation size

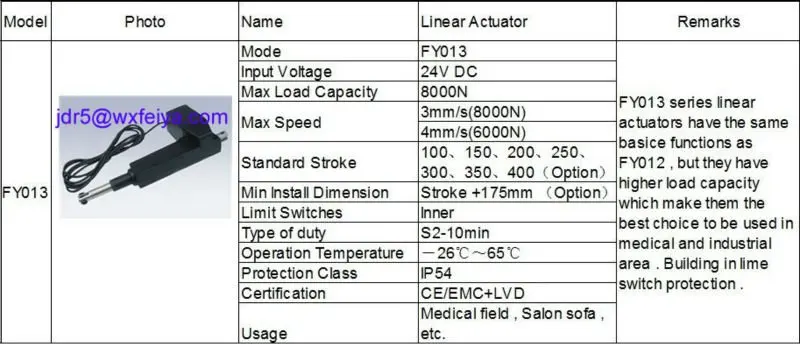

Specifications:

1)Input voltage	DC 24V
2)Load capacity	8000N/6000N
3) Speed	3mm/s (8000N), 4mm/s (6000N)
4) Standard stroke	100, 150, 200, 250, 300, 400 (option)
5) Min. installation dimension	S+175mm (option)
6) Limit switches	Built-in
7) Type of duty	S2-10 min
8) Operation temperature	-26~65°c
9) Protection Class	IP54
10)Certification	CE/EMC+LCD

High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.

Item: Electric Linear Actuator, Electric Linear Motor

Series: FY series

Item Number:FY011, FY012, FY013 FY04, FY015, FY016, FY017

Delivery time: 3~7 days for samples

High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.

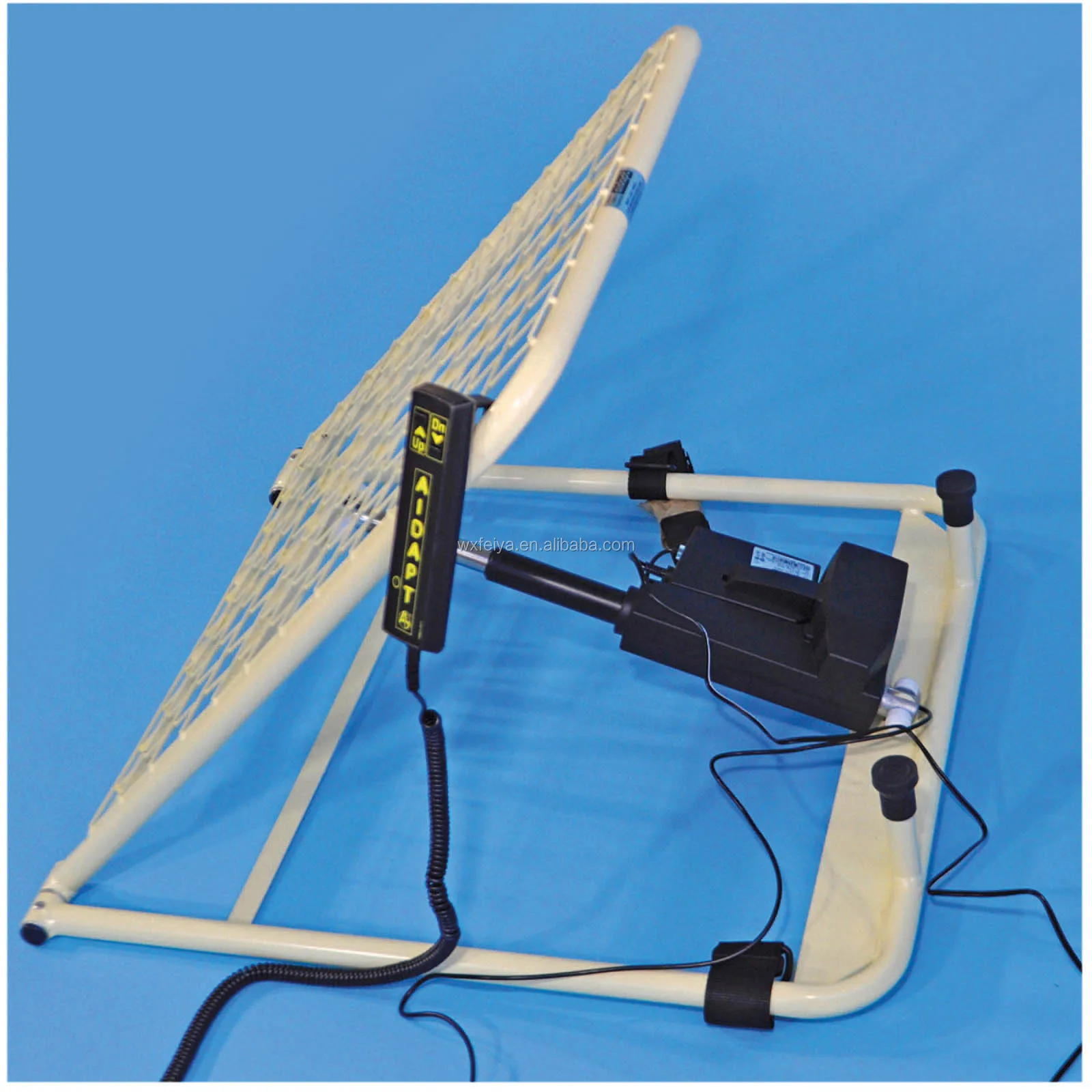

Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.

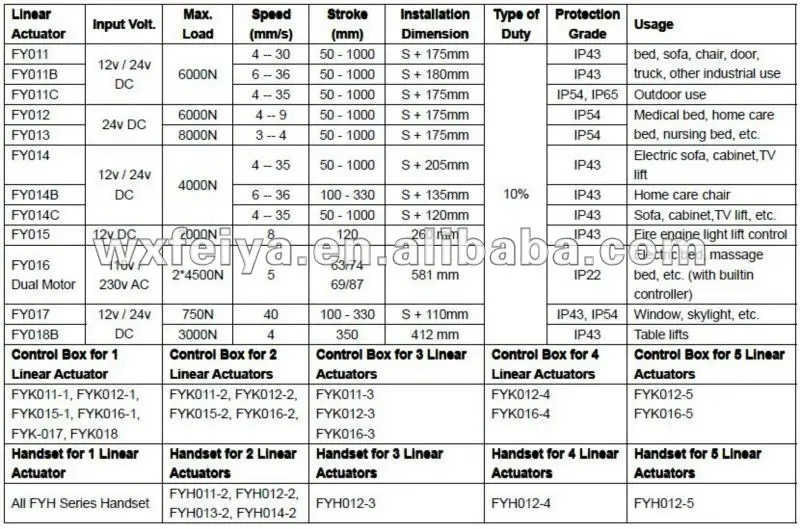

Specification of Our Electric linear actuator:

Max. Thrust: 4000N, 6000N, 8000N

Voltage: 24VDC or 12VDC, Motor Drive

Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.

Duty cycle:10%

Ambient temperature -26°C to +65°C

Standard protection class: IP 43

Built-in integral limit switch, not adjustable after leaving factory

Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.

Overload protection

CE Certificated

Availability in Black, White and Gray housing

Quality Guarantee

We provide 1 year warranty for JDR Linear Actuators.

We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.

Maintenance service

No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.

JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.

Contact Us

We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.

Transportation

All available shipping ways could be applied, by courier, by air or by sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you before the goods arrive.

We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
