Structure: | Thrust; | Bore Size: | 10 - 300 mm; |
Place of Origin: | China; | Number of Row: | Single Row; |
Precision Rating: | P0 P6 P5; | Packaging Detail: | Industry packing According to clients requirements; |
Supply Ability: | 100000 Piece/Pieces per Month; | Type: | Ball; |
Outside Diameter: | 20 - 500 mm; | Port: | Shanghai; |
Brand Name: | NTL; | Product name: | Thrust Ball Bearing; |
Payment Terms: | L/C,T/T,Western Union,paypal,escrow; | Model Number: | 51105; |

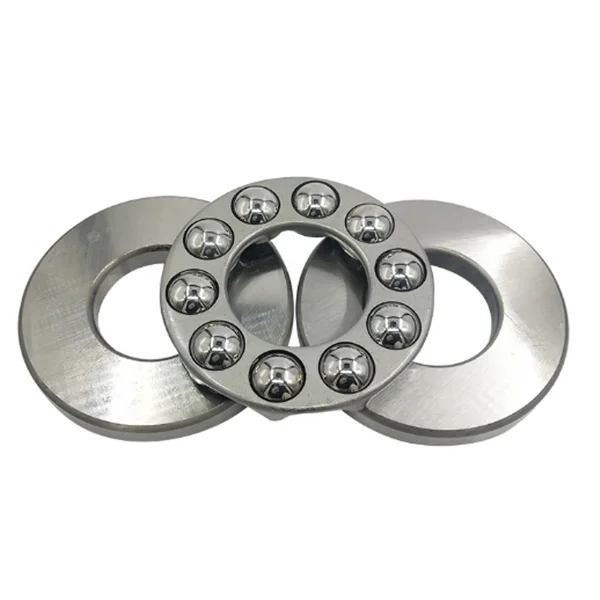

thrust ball bearing
BEARING NO | PRINCIPAL DIMENSIONS | SPEED RATINGS | BASIC LOAD RATINGS | WEIGHT | ||||
d | D | B/C /T | GREASE | OIL | DYNAMIC | STATIC | MASS | |
51103 | 17 | 30 | 0/0/9 | 5300 | 7500 | 10.8 | 18.2 | 0.024 |
51203 | 17 | 35 | 0/0/12 | 4500 | 6300 | 17 | 27.2 | 0.048 |
51104 | 20 | 35 | 0/0/10 | 4800 | 6700 | 14.2 | 24.5 | 0.036 |
51204 | 20 | 40 | 0/0/14 | 3800 | 5300 | 22.2 | 37.5 | 0.075 |
51105 | 25 | 42 | 0/0/11 | 4300 | 6000 | 15.2 | 30.2 | 0.055 |
51205 | 25 | 47 | 0/0/15 | 3400 | 4800 | 27.8 | 50.5 | 0.11 |
51305 | 25 | 52 | 0/0/18 | 3000 | 4300 | 35.5 | 61.5 | 0.17 |
51405 | 25 | 60 | 0/0/24 | 2200 | 3400 | 55.5 | 89.2 | 0.31 |
51106 | 30 | 47 | 0/0/11 | 4000 | 5600 | 16 | 34.2 | 0.062 |
51206 | 30 | 52 | 0/0/16 | 3200 | 4500 | 28 | 54.2 | 0.13 |
51306 | 30 | 60 | 0/0/21 | 2400 | 3600 | 42.8 | 78.5 | 0.26 |
51406 | 30 | 70 | 0/0/28 | 1900 | 3000 | 72.5 | 125 | 0.51 |
51107 | 35 | 52 | 0/0/12 | 3800 | 5300 | 18.2 | 41.5 | 0.077 |
51207 | 35 | 62 | 0/0/18 | 2800 | 4000 | 39.2 | 78.2 | 0.21 |
51307 | 35 | 68 | 0/0/24 | 2000 | 3200 | 55.5 | 105 | 0.37 |
51407 | 35 | 80 | 0/0/32 | 1700 | 2600 | 86.8 | 155 | 0.76 |
51108 | 40 | 60 | 0/0/13 | 3400 | 4800 | 26.8 | 62.8 | 0.11 |
51208 | 40 | 68 | 0/0/19 | 2400 | 3600 | 47 | 98.2 | 0.26 |
51308 | 40 | 78 | 0/0/26 | 1900 | 3000 | 69.2 | 135 | 0.53 |
51408 | 40 | 90 | 0/0/36 | 1500 | 2200 | 112 | 205 | 1.06 |
1.Thrust ball bearings can handle loads in the axial direction only. 2.Bearing rings mounted on the shaft are called shaft washers, while those mounted in the housing are called housing washers. 3.Both washers contain raceways for the balls. 4.Thrust ball bearings are available as both single a bi-directional types. The bi-directional thrust bearing incorporates a third washer and an additional set of balls. 5.The center washer is located in axial direction by a shaft shoulder and sleeve. 6.Care must be taken in handling to prevent damage to separate rings and ball assemblies. 7.The trust ball bearings are Available in two designs: single direction and double direction. 8.Thrust ball bearings material: bearing steel, high chrome, carbon steel, stainless steel, ect, |
