PLC control rectangular steel pipe punching machine for max. 6m long steel pipes

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power Source:	Hydraulic;	Dimension(LWH):	6500 x 330 x 2100mmm;
Punching power:	Hydraulic;	Applicable rectangular steel pipe size:	customized;
Condition:	New;	Min. space between two holes:	30mm;
Servo feeding motor power:	1.5kW;	Supply Ability:	30 Set/Sets per Year square steel pipe punching machine;
Max. steel pipe wall thickness:	4mm (customized);	Punching speed:	4 seconds per hole;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	one year;
Power(W):	15kW + 1.5kW;	Hole position precision:	+/-0.3mm;
Certification:	ISO;	Port:	Shenzhen;
Max. steel pipe length:	6000mm;	Packaging Detail:	Automatic rectangular steel pipe punching machine will be packed by sea worthy wooden case, one 40' container or LCL will be OK.;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Weight:	2200kg;
Place of Origin:	Guangdong China;	Control method:	PLC control, HMI operation;
Hydrualic pump motor power:	15kW;	Brand Name:	Zhenhuan;
Voltage:	Customized;	CNC or Not:	Normal;

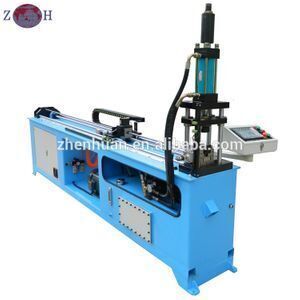

Automatic Rectangular Steel Pipe Punching Machine

|rectangular steel pipe punching machine| rectangular steel pipe punching machine|

This rectangular steel pipe punching machine is PLC control, HMI operation, for punching holes on rectangular or square steel pipes.

|rectangular steel pipe punching machine| rectangular steel pipe punching machine|

I Main features of rectangular steel pipe punching machine:

- Servo feeding, hydraulic clamping & punching

- PLC control, HMI operation, simple and convenient

- High hole punching position precision

- Good hole punching result, no burr

- Total 100 programs can be saved

|rectangular steel pipe punching machine| rectangular steel pipe punching machine|

II Main technical data of rectangular steel pipe punching machine:

No.	Item	Data
1	Suitable max. pipe length	6000mm
2	Suitable max. pipe wall thickness	4mm
3	Suitable max. rectangular pipe size	66x28mm
4	Min. space between two holes	30mm (round hole)
5	The space between one tube end and the latest hole	150mm
6	Hole position precision	±0.3mm
7	Working efficiency	4sec per hole
8	Operation method	Automatic/ manual
9	Workpiece loading method	manual
10	Controlling method	PLC+ 5.7" HMI
11	Servo feeding motor	1.5kW
12	Hydraulic pump motor power	15kW
13	Hydraulic pressure	10-14MPa
14	Machine dimension	About 6500 x 330 x 2100mm
15	Machine weight	About 2200kg

|rectangular steel pipe punching machine| rectangular steel pipe punching machine|

III Main configuration of rectangular steel pipe punching machine

- Servo motor & driver: Delta from Taiwan

- PLC: Mitsubishi from Japan

- HMI: Weinview from Taiwan

- Main hydraulic valves are from Taiwan

- World famous brand electric components (buttons, relay, air switch): Schneider, Fuji, etc.

IV Supplying range of the steel iron square pipe punching machine:

4.1 Complete machine

4.2 One set of punching die (according to Buyer’s drawing)

4.3 Operation manual, electric drawing, hydraulic drawing

4.4 Tool kit |rectangular steel pipe punching machine| rectangular steel pipe punching machine|

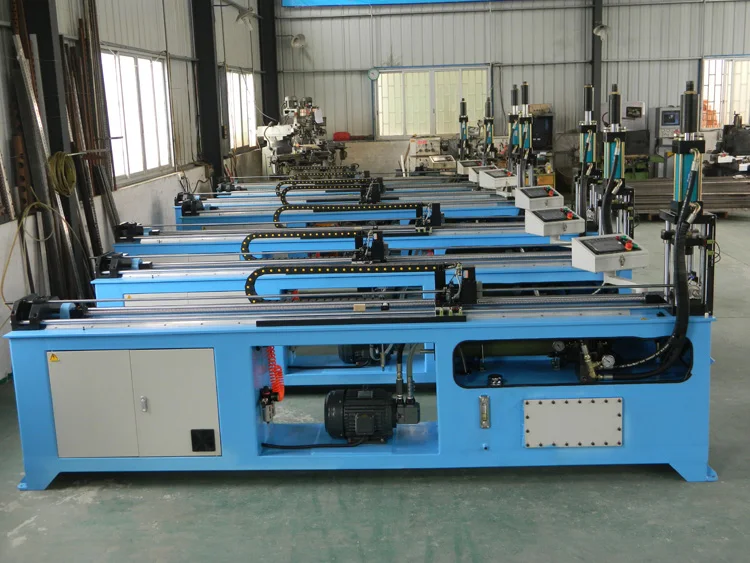

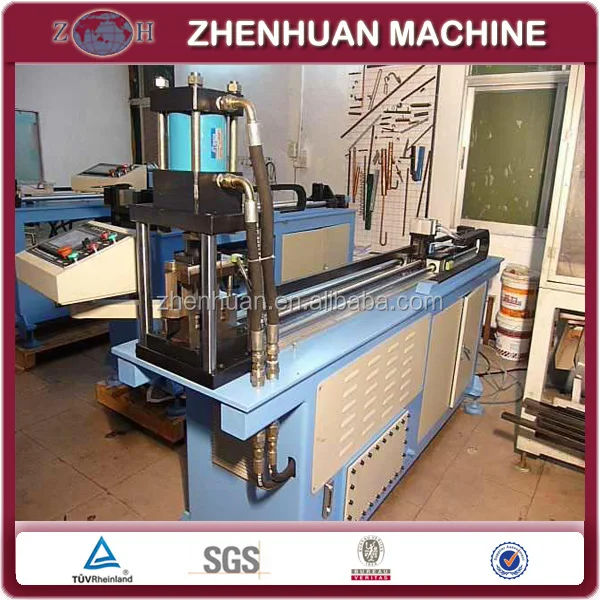

V Rectangular steel pipe punching machines in our workshop:

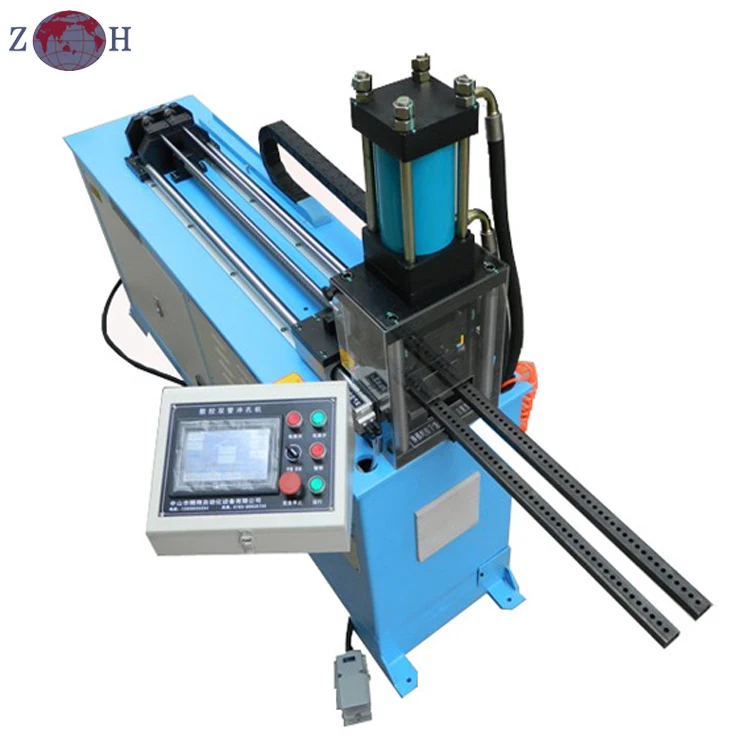

If your steel pipe is in small size and you have big productivity requirement, we can design parallel-pipe punching machine:

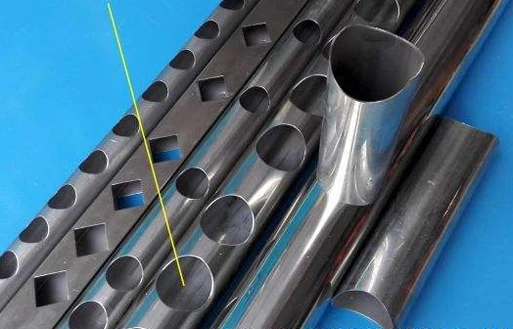

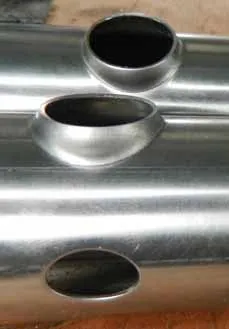

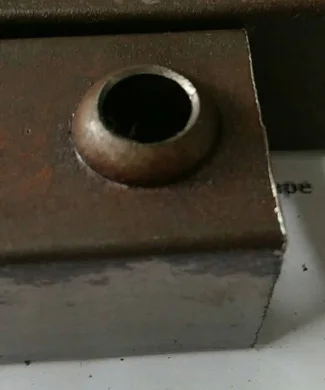

We can also specially design steel pipe punching machine for your special holes:

We, Nantong Zhenhuan Trade Co., Ltd., are specialized in machine solutions for more than 14 years. We can provide you good quality rectangular steel pipe punching machine as well as good services.
