China Farfly FDH Mixer, Disperser, Stirrer of coating, formulation

Supplier: Shanghai Farfly Energy Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr farfly sh
Price: $19000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Printing Shops;	Product Name:	Paint Mixer, Disperser, Stirrer;
Certification:	CE & ISO9001:2008;	Mixer Type:	Agitator;
Machine Type:	Disperser;	Max. Loading Volume (L):	600 L;
Additional Capabilities:	VACUUM;	Warranty:	1 year;
Port:	Shanghai Port, China;	Lifting Method:	Hydraulic control;
Dimension(LWH):	Customized;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Weight (KG):	980 KG;	Key Selling Points:	Multifunctional;
Place of Origin:	Shanghai China;	Function:	Paint disperser and mixing;
Application:	Liquid with Suspended Solids;	Payment Terms:	L/C,T/T;
Barrel Volume (L):	600 L;	Power (kW):	18.5 kW;
Condition:	New;	Voltage:	110V/220V/380V;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	1000 Set/Sets per Year Mixer, Disperser, Stirrer of coating formulation;
Contact Material:	SUS304;	Speed Control:	Inverter frequency control;
Packaging Detail:	Customized;	Max. Loading Capacity:	3000L;
Brand Name:	FARFLY;	Motor:	Normal / Explosion-proof;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training;	Product Type:	Paint;
Application:	Chemicals Processing,Plastics Processing;	Usage:	Paint mixing machine;
Showroom Location:	None;	Capacity:	500-3000L;
Local Service Location:	None;

Product Description

Product Application

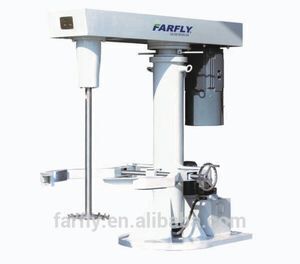

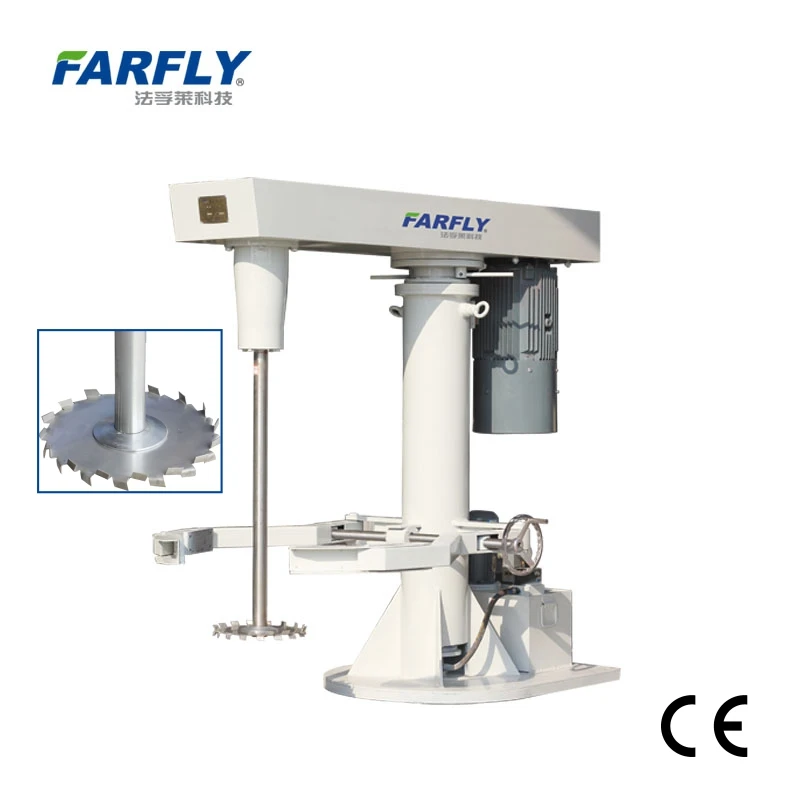

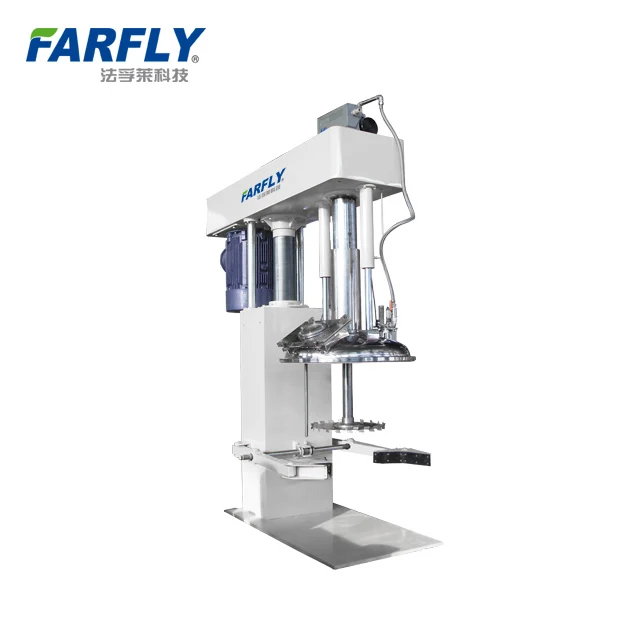

FARFLY High Shearing Paint Mixer, Disperser, Stirrer

FDG series are suitable for dispersing paint, ink, coating, dyestuff, paper pulp, etc. in chemical industry. They are used for wet dispersing and mixing liquid and suspended solid materials, or detergent. Flexible rotation and vacuum or pressurized function are optional for diverse applications.

Stand style and platform style are optional to fit different usage.

Unique Features

1. Safety design with range controlled switch to ensure hydraulic pole lift within safety range.

2. Rotation shaft with dispersing disc are dynamice balanced to ensure stable processing.

3. Hydraulic driving system to enable steady lifting up and down.

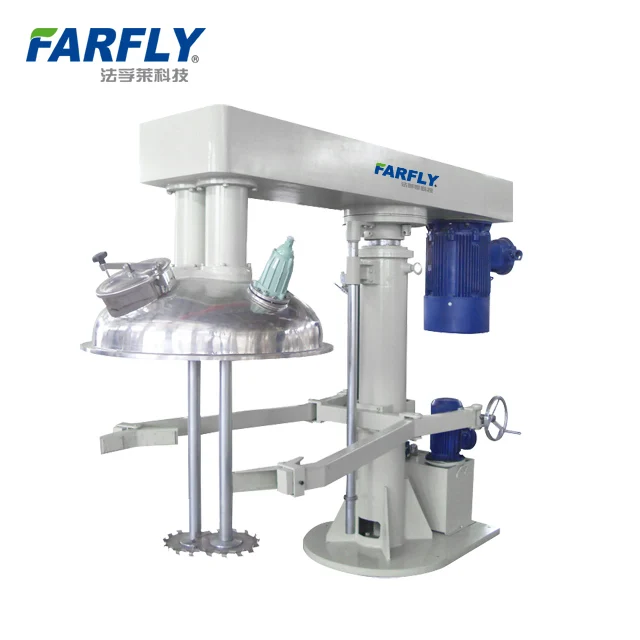

4. Dispersing shaft can revolve around the hydraulic pole to multiple locations as designed to save equipment cost. (ref-erring to right above picture)

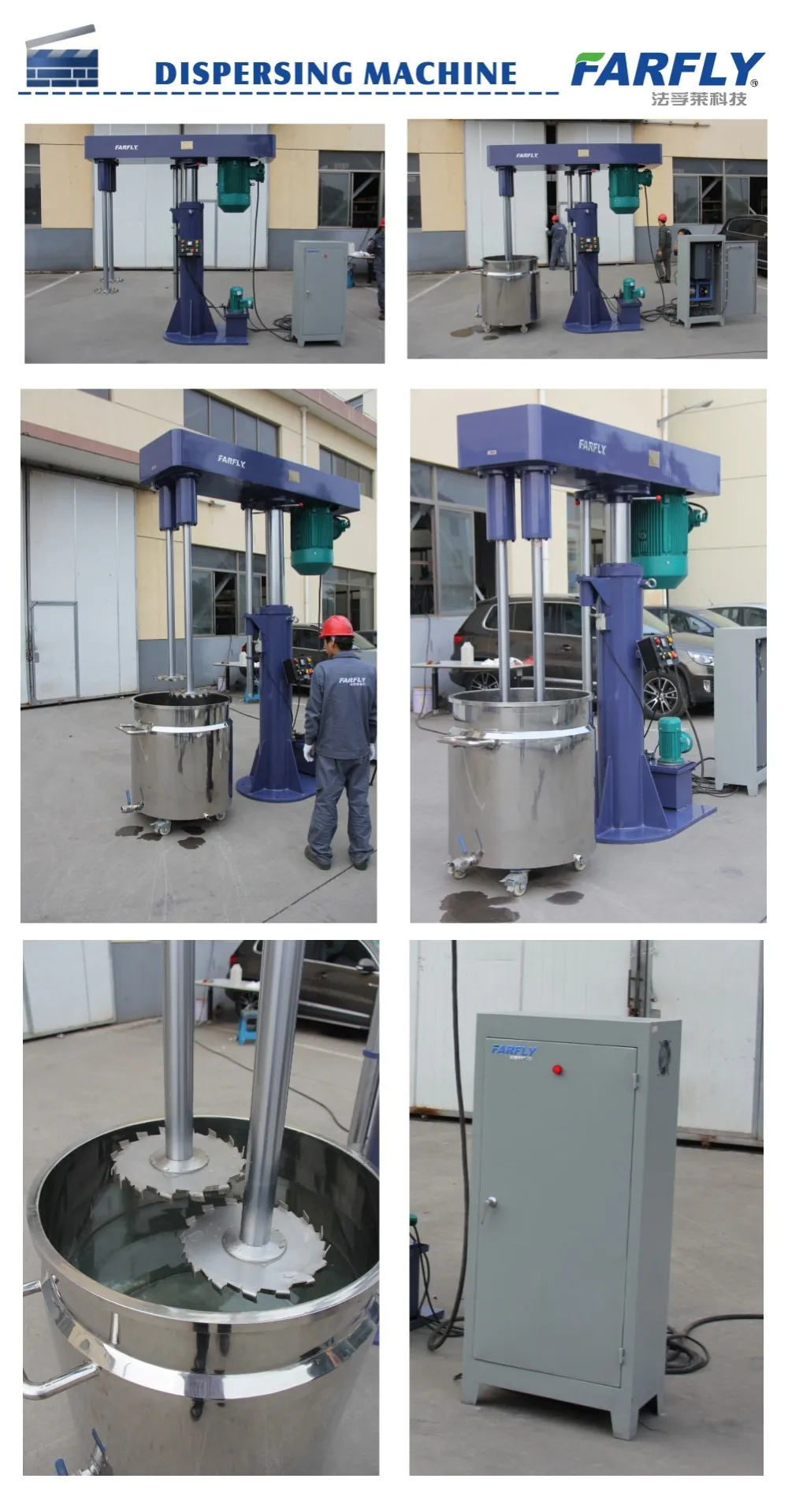

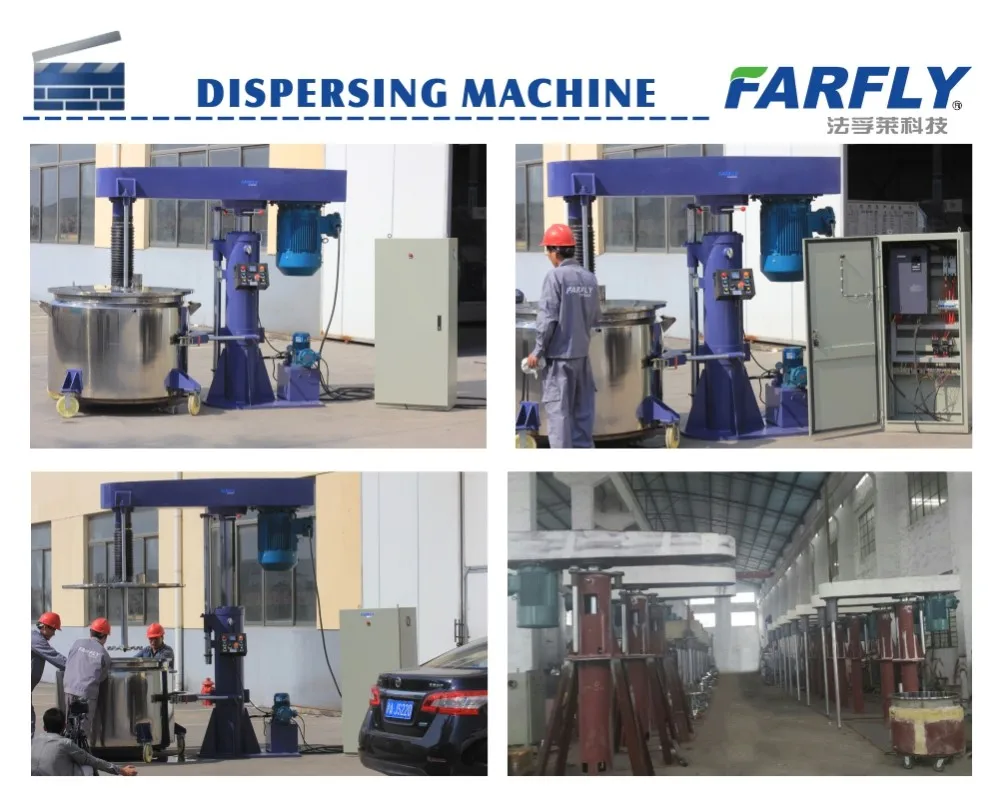

Detailed Images

Type	Power (KW)	Speed (rpm)	Dic Dia.(mm)	Lifting height(mm)	Pump power(kW)	Handling capacity(L)	Wt. (Kg)	Overall size(mm)(LxWxH)
FDG1.5/2.2	1.5/2.2	0~1450	150	600	0.55	50~100	120	1400x940x350
FDG 4/ 5.5	4/5.5	0~1450	200	800	0.55	100-200	400	1700x1300x600
FDG7.5/ 11/15	7.5/11/15	0~1450	250	900	0.75	400-600	800	1750x1800x900
FDG18.5/22/30/37	18.5/22/ 30/37	0~1450	350/ 400	1200	1.1	600-2000	1700	2200x2100x1100
FDG45/ 55	45/55	0~1200	450	1300	1.5	1000-2500	2100	2600x2700x1400
FDG75/ 90	75/90	0~1200	600	1600	2.2	5000	2600	2700x3000x1600
FDG110/132	110/132	0~1200	610	2200	2.2	10000	4500	3800x3800x1800
