Double Shaft Waste Rubber TDF Shredder Tire Recycling Machine

Product details
Model Number:PNSS Rubber Recycling Machine;Dimension(L*W*H):Depending on the model;
Packaging Detail:Double Shaft Waste Rubber TDF Shredder Tire Recycling Machine wrapped with film then come into wooden case for container shipping;Certification:CE;
Applicable Industries:Manufacturing Plant;After-sales Service Provided:Video technical support, Online support;
Color:Client's Requirements;Warranty:1year;
Key Selling Points:Automatic;power source:380V 50Hz;
Motor brand:Siemens;Certification:CE ISO;
Tire Machine Type:Tire Recycling Machine;Keyword:metal shredder;
Warranty:1 Year;Brand Name:Wanrooe;
Condition:New;Year:New;
Blades Material:SKD11;Place of Origin:Jiangsu China;
Product name:Double Shaft Waste Rubber TDF Shredder Tire Recycling Machine;Supply Ability:500 Set/Sets per Year Double Shaft Waste Rubber TDF Shredder Tire Recycling Machine;
Shaft design:double shaft twin shaft;Payment Terms:L/C,T/T,Western Union;
Weight:Depending on the model;Capacity:500-5000kg/h;
Power(W):90-180kw;Voltage:380v;
Port:Shanghai;

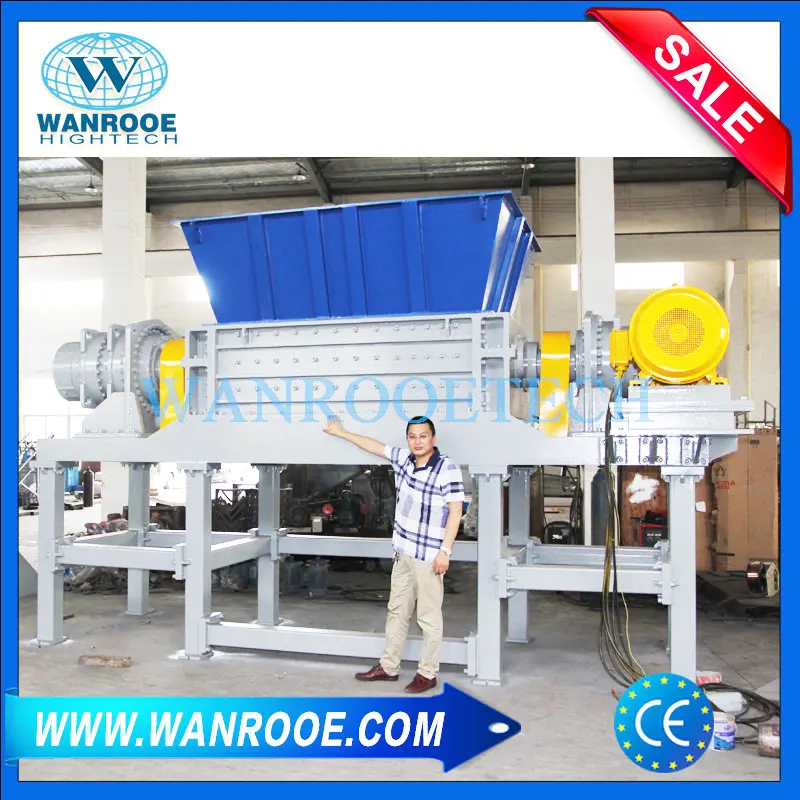

Double Shaft Waste Rubber TDF Shredder Tire Recycling Machine



Product Description



Description:

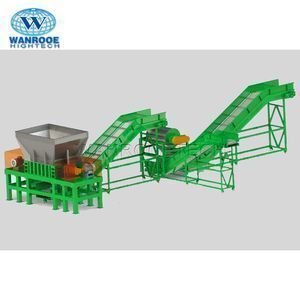

The TDF tire shredding Machine system is designed to produce up to 1.2-10 tons per hour of TDF. TDF systems produce a 25mm to 152mm(1''-6'') rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost effective. Rough shreds can be outputted for use or processed further to remove steel from the rubber resulting in Wire-free TDF.This plant is made of two main parts: double shaft shredder and screen.

Components:
Technical Features:
1.No polluted water, no waste gas and no waste residuce during production process;
2.Compact structure, small space and easy maintennance;
3.Lower energy consumption and good cost performance of investment;
4.shredder is designed with a powerful engine, long working length and aggressive input,Internal feeding volume bigger than traditional and common single shaft shredder machine;
5.The two cutting rotors powerfully grab the feed material;
6.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
7.Screen is used to make sure the size of the output can meet each customer's requirement( From 40mm--75mm);
8.Cutters removal and replacement can be carried out safely and simply;

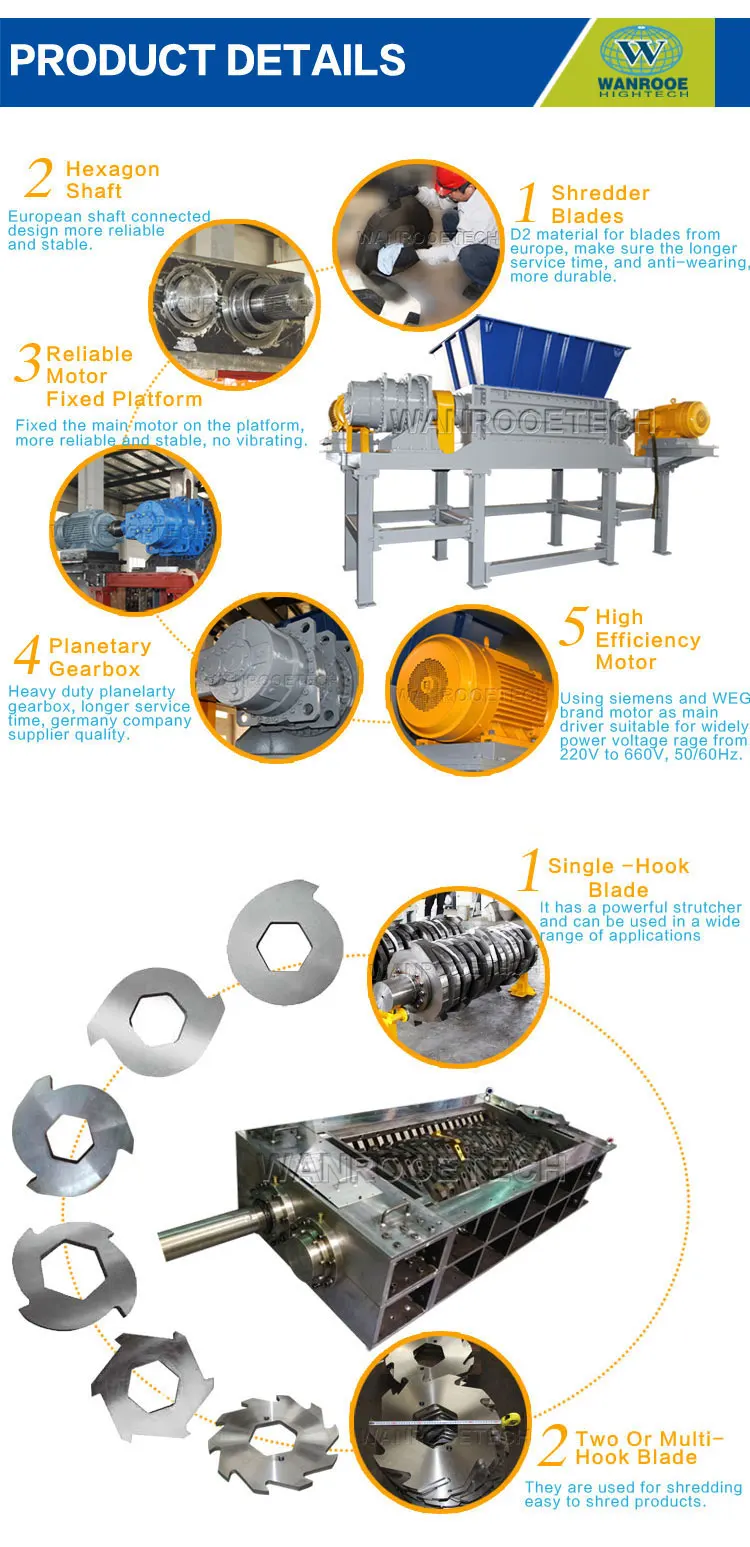

9.Our tire shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages:High Efficiency,Greater Stability,Compact Size,Higher Torque Density,Cost Effective Precision,High Radial Loads.

Application Areas:
•Civil Engineering Applications:They can be used as landfill gas trench collection walls, as back fill for road landslide repair, as vibration reducing material for railway lines and as back fill for maintaining walls.
•Ground and Crumb Rubber: For example, it can be used in paving projects or be moulded into products. Common examples of rubber moulded products include carpet padding, rubber flooring materials, patio decks, livestock mats, movable speed bumps, sidewalks, dock bumpers, railroad crossing blocks just to mention but a few.
•Carbon Source:Instead of using coke or coal in steel mills, rubber can be used as a source of fuel. In fact, studies have recommended that steel mills should adopt burning of rubber as fuel instead of coal, since coal is mined and can be depleted. Using rubber as fuel is a great way for these mills to go green and reduce their carbon fingerprints.



Model

Shreddering Motor Power (kw)

Shreddering Chamber size(mm)

PNSS-300

7.5

510×300

PNSS-400

7.5

510×400

PNSS-600

7.5+7.5

510×600

PNSS-800

18.5+18.5

600×800

PNSS-1000

22+22

800×1000

PNSS-1200

30+30

1000×1200

PNSS-1400

55+55

1400×1200

PNSS-1600

55+55

1600×1200

PNSS-1800

75+75

1800×1400

PNSS-2000

90+90

2000×1400

Related Product
/Rubber Powder Production Line/
Rubber powder production line is used for processing used tires and rubbers to fine rubber powders.End products size can reach 30-120 mesh free of steel wire and fiber.TDF shredders and Rubber powder production are not the same machine, their products are used differently.
