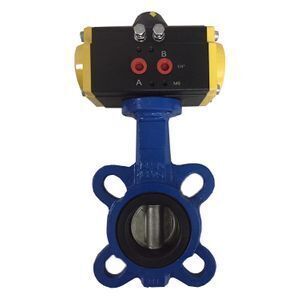

Electric manual butterfly quick install Butterfly Valve Gate Valves

Supplier: Hangzhou Minglong Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tony Liao
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	Stainless Steel;	product type:	foam Net;
Keyword:	wafer butterfly valve;	Weight:	3500kg;
Certification:	ce;	Raw material:	expandable Polystyrene, Styrofoam, Thermocol;
Media:	Water gas;	Warranty:	1year;
Port:	Ningbo/Shanghai;	Product name:	butterfly valve;
Structure:	Butterfly;	Packaging Detail:	Packaging: wooden box standard export seaworthy packaging;
Certificate:	CE ISO9001;	Pressure:	Low Pressure;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Power:	Manual;
Supply Ability:	2000 Piece/Pieces per Month;	Application:	machine;
Place of Origin:	Zhejiang China;	Material:	Stainless Steel;
Usage:	Machine;	Temperature of Media:	Medium Temperature;
Brand Name:	Milon;

Product Description

Advantages of valve

Angle seat valve
Large flow, low flow resistance, no water hammer.
Valve stem automatically calibrated, self-lubricating, maintenance-free

Butterfly valve
Widely used in food, textile, medicine, plastic machinery, machinery, chemical industry and other industries.

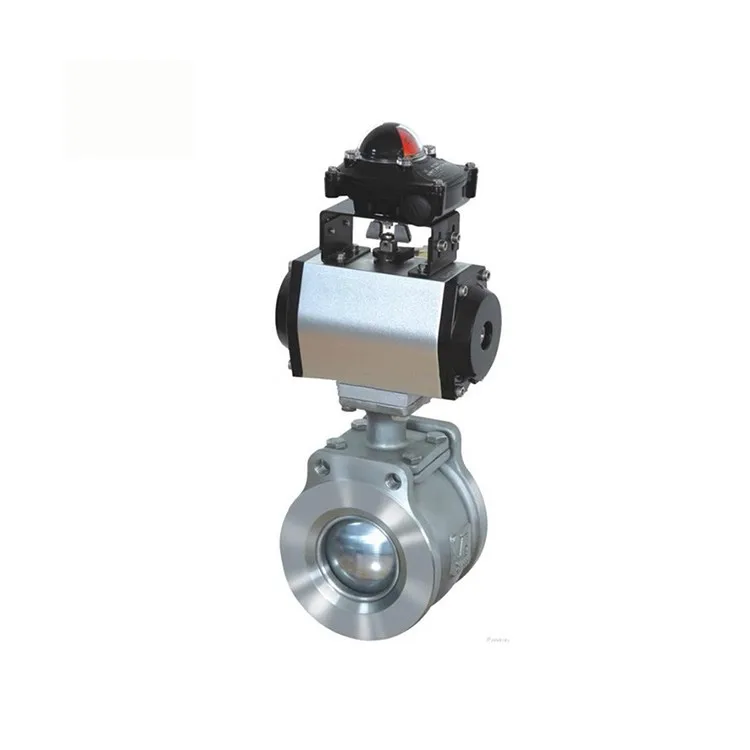

Ball valve
It can be used for adjusting and controlling the fluid, especially suitable for medium containing fiber, small solid particles and so on.

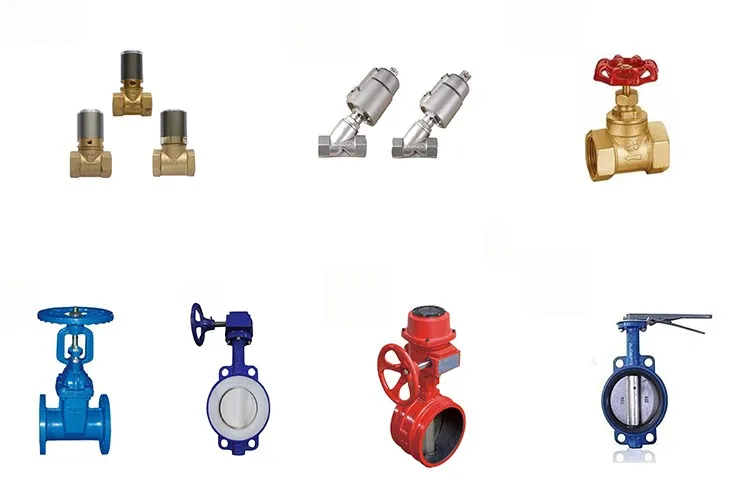

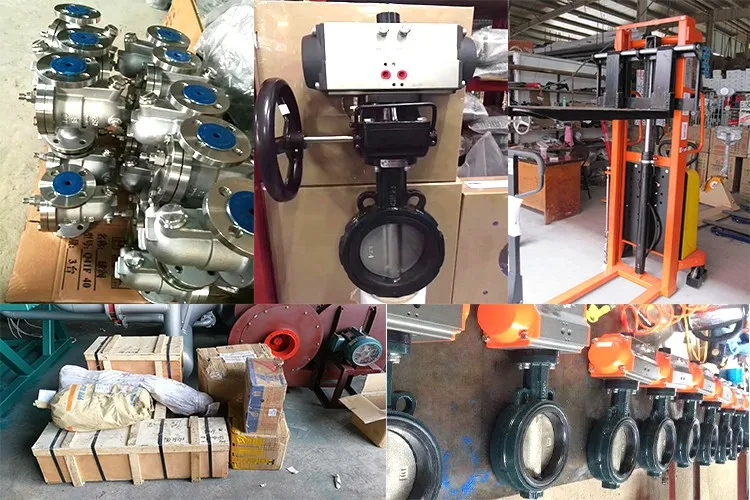

Detailed Images

Butterfly valve Parameter

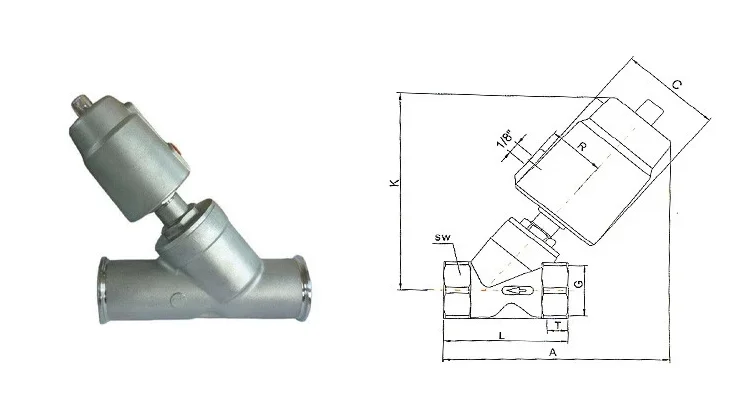

Angle seat valve Parameter

specification	actuator	C	R	K	G	T	A	L	SW
DN10	40	50.5	27	211	3/8"	12	119	68	27
DN10	50	60	33	124	3/8"	12	131	68	27
DN15	40	50.5	27	111	1/2"	15	119	68	27
DN15	50	60	33	124	1/2"	15	131	68	27
DN20	50	60	33	128	3/4"	16	136	75	32
DN25	50	60	33	136	1''	17	145	90	40
	63	75	41	162			169
	90AL	112	57	210			211
	90	106	55	211			213

Ball valve

Nominal pressure:	PN1.6-6.4,Class150/300,10k/20k
Strength testing pressure:	PT1.5PN
Seat testing pressure(high pressure):	1.1PN
Applicable media:	J41H-(16-64)C Water. Oil. Gas
Applicable temperature:	-29~180℃
Applicable media:	J41W-(16-64)P Nitric acid,J41W-(16-64)R Acetic acid
Applicatable temperature:	-40~180℃

Pre-expander Machine

EPS Shape Machine

EPS Block Machine

Hangzhou Milon Machinery Co.,Ltd.

Was established by one strong professional team with more than 20 years experience on the plastic manchinery and related manchinery especilly focus on EPS machinery.

Our main products: Polystyrene Styrofoam (EPS)Machine ,Sandwich Panel Machine ,3D wire Panel Machine ,Cut machine ,EPP Machine ,PU Machine,PE Machine,XPSMachine,Brick Machine,Mould,Boiler ,Air Compressor ,Hardware Mechanical and Electrical Products,Spare parts ,Raw material etc.

Our target: Make the world business more save and easy ,provide the most suitable products with the better quality and cheaper cost ,and give the efficent and one-stop service .

Welcome to learn us more, please to click: Hangzhou Milon Machinery Co., Ltd.

Our competitive advantages

1.More than 20 years experience manufacturing and service
2.High efficiency and capacity of production, very short delivery time
3.The customers are around the world (including Europe and America market)
4. Leadership professional in our industry
5.The best and whole lifetime sale after service

our workshop
