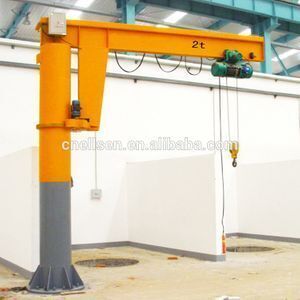

1000kg jib crane

  • Supplier: Aimix Group Co., Ltd.
  • Region: Henan, China
  • Contact: Mr Dick Xing
  • Price: $2500.00 /set
  • Min. Order: 1 set
Product details
Packaging Detail:Package of jib crane:Jib crane electrical and other parts packed by high quality plywood crate, Beams packed by plastic woven cloth.;Hoist type:wire rope hoist or chain hoist;
Application:Factory,workshop, warehouse,etc;After-sales Service Provided:Field maintenance and repair service;
Place of Origin:Henan China;Certification:CE,BV,ISO,SGS,CUTR;
Jib length:2~10m;Port:Qingdao/Shanghai/Tianjin;
Overheight limiter:Included;Span:2~10m;
Payment Terms:L/C,T/T,Western Union,Paypal,Credit card,Escrow,Trade assurance;Rated Lifting Moment:10-2000KN.M;
Slewing degree:0~360°;Applicable Industries:Manufacturing Plant;
Warranty:1 year;Supply Ability:2000 Set/Sets per Year jib crane in stock.;
Item:1000kg jib crane;Feature:Jib Crane;
Condition:New;Brand Name:Ellsen;
Lifting height:3~10m;Loading capacity:0.5~20t;
Emegency stop button:Included;After-sales Service Provided:Engineers available to service machinery overseas;
Power supply:220~440V,50/60HZ,three phase;Rated Loading Capacity:0.5~20t;
Max. Lifting Height:10m;

1000kg jib crane

Product Overviews



Normally,we need you confirm below information before decide to purchase:

(Leave your email and whatsapp or skype or wechat when you send inquiry to us)

1.Loading capacity?(Ton)

2.Lifting height?(m)

3.Jib length?(m)                                                 Click here: "Send enquiry"

4.Power supply?(V-HZ-Phase)

5.Where does it used?

6.QTY?(set)

7.FOB or CIF price?(If CIF price,tell us your nearest destination port.)

8.Any other special demands?





Exhibition of column mounted jib crane                         Contact us

Technical parameter of column mounted jib crane        Contact us



+
TypeBZ0.25BZ0.5BZ1BZ2BZ3BZ5BZ8BZ10
Lift Capacity (t)0.250.51235810
Max. Lift Height(m)33334468
Slew Angle(0)360360360360360360360360
Lift Speed (m/min)Normal4;10;85;10;8888888
Slow1;2.5;0.81.25;2.50.80.80.80.80.80.8
Level Travel Speed   (m/min)2020202020202020
Slewing Speed   (r/min)0.70.70.70.70.60.60.60.6
Lift mechanismwire rope electric hoist or chain electric hoist
Power supply220~6900V,50/60HZ,3phase or customized
Control modePendent pushbutton control or remote control
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands.



Product Description



Brief introduction of jib crane                                          Contact us



+
General description

1.Column mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production.  And Jib Crane adopts West Germany technology , has the features of reasonable structure, easy operating and high efficiency, etc . It is widely used in mines, workshop, warehouse , wharf,etc.

2.Fixed column slewing Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.

 Specific details
  • Loading capacity: 0.5~20ton ;
  • Lifting height:3~10m ;
  • Jib length:2~10m;
  • Slewing degree:0~360°;
  • Power supply:220~440V,50/60HZ,three phase or customized design
 Application
  • Factory,workshop,warehouse,store;
  • Logistic,dock,port , freight yard ;
  • Construction building,mine,etc.
 Advantage & feature
  • Installation with high strength bolt connection;
  • Convenient in operation,safe and turn to flexible;
  • Low noise,commodious cabin and good looking;
  • High quality and efficiency, competitive price;
  • Reasonable and simple whole structure,Light self-weight, conform to the state standards;
  • Inexpensive handling systems doesn't require modification of the building structure around.



Related Products



Display of different types jib crane                                  Contact us





Different types jib crane for your more choose            Contact us



+

Column mounted jib crane

  • Loading capacity: 0.5 ~ 20 t ;
  • Lifting height: 3 ~ 10 m;
  • Jib length: 2 ~ 10 m;                             Get Quotation
  • Slewing degree:0 ~ 360°;
  • Power supply: 220 ~ 690V,50/60HZ,3Phase;

Wall mounted jib crane

  • Loading capacity: 0.5 ~ 2 t  ;
  • Lifting height:3 ~ 20 m;
  • Jib length: 2 ~ 10 m;                           Get Quotation
  • Slewing degree: 0 ~ 180°;
  • Power supply: 220 ~ 690V,50/60HZ,3Phase;

Wall travelling jib crane

  • Loading capacity: 0.5 ~ 5 t;
  • Lifting height: 2 - 20 m;
  • Jib length: 2 ~ 10 m;                           Get Quotation
  • Slewing degree: 0 ~ 150°;
  • Power supply: 220 ~ 690V,50/60HZ,3Phase



Packaging & Shipping



Packing & Delivery of jib crane                                        Contact us





Company Information



About us                                                                             Contact us



+
Our factory professional manufacture crane equipments and construction building hoist in china with 55 years experienced.We mainly produce overhead crane,gantry crane,port crane,jib crane,electric hoist,kinds of winch:electric winch,marine winch,hydraulic winch,diesel winch,etc.At present,our factory mainly proudce column mounted jib crane,wall mounted jib crane,wall travelling jib crane,our jib crane can be customzied design Max.20t according to our clients' demands.Jib crane can be equiped with wire rope hoist or electric chain hoist widely used factory,warehouse,workshop,etc work condition.



Production and process of jib crane                               Contact us





FAQ



  FAQ                                                                                    Contact us

1.Q:MOQ?

   A:One set is ok.

2.Q:Can you accept payment terms?

  A:T/T,L/C,Western union,Paypal,Escrow,Trade assurance,Credit card,etc.

3.Q:Delivery time?

    A:If in stock,1~3days;If not in stock,normal 3~10 days ;

4.Q:Can you provide OEM/ODM?

    A:Allowed OEM/ODM;

5.Q:Warranty?

    A:One year for the whole machine .

6.Q:Does your products can be customized?

  A:Yes,our all kinds of jib  crane can be customized design according to each client's demands.

7.Q:What kinds of certificates about your products?

   A:Normally,we have CE,BV,SGS,CUTR certificates,of course our products make some other certificates according to our clients' specific requirements.

8.Q:What kinds of jib crane you can offer?

   A:We can produce column mounted jib crane,wall mounted jib crane,wall travelling jib crane type.



If you have any question about column mounted jib crane, you can click here:"Send inquiry".
