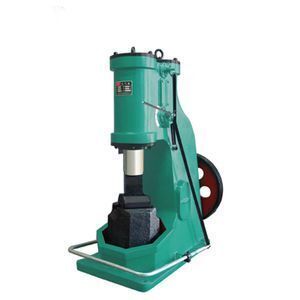

C41-20kg 25kg 40kg power hammer anyang price
-
Supplier: Aimix Group Co., Ltd. -
Region: Henan, China -
Contact: Mr Dick Xing -
Price: $1400.00 /set -
Min. Order: 1 set
Product details
| Packaging Detail: | Package of air hammer:Wooden case; | After-sales Service Provided: | Field maintenance and repair service; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal,Credit card,Trade assurance; | Power(W): | 1500; |
| Dimension(L*W*H): | 660x420x970mm/800x420x1170mm; | Certification: | CE ISO SGS; |
| Voltage: | 220V single phase /380V three phase; | Warranty: | 1 Year; |
| Hit number: | 258; | Item: | C41-20kg 25kg 40kg power hammer anyang price; |
| Port: | Qingdao,Tianjin,Shanghai or As your demands; | Weight: | 240 / 290kg; |
| Max. round steel can be forged: | Dia. 22 mm; | Speed of motor: | 1440r.p.m; |
| Supply Ability: | 500 Set/Sets per Month; | Condition: | New; |
| Brand Name: | Ellsen; | Max. square steel can be forged: | 20x20 mm; |
| Applicable Industries: | Manufacturing Plant,Home Use; | Place of Origin: | Henan China; |
| Max.hit energy: | 0.18KJ; | After-sales Service Provided: | Engineers available to service machinery overseas; |
C41-20kg 25kg 40kg power hammer anyang price
Product Overviews

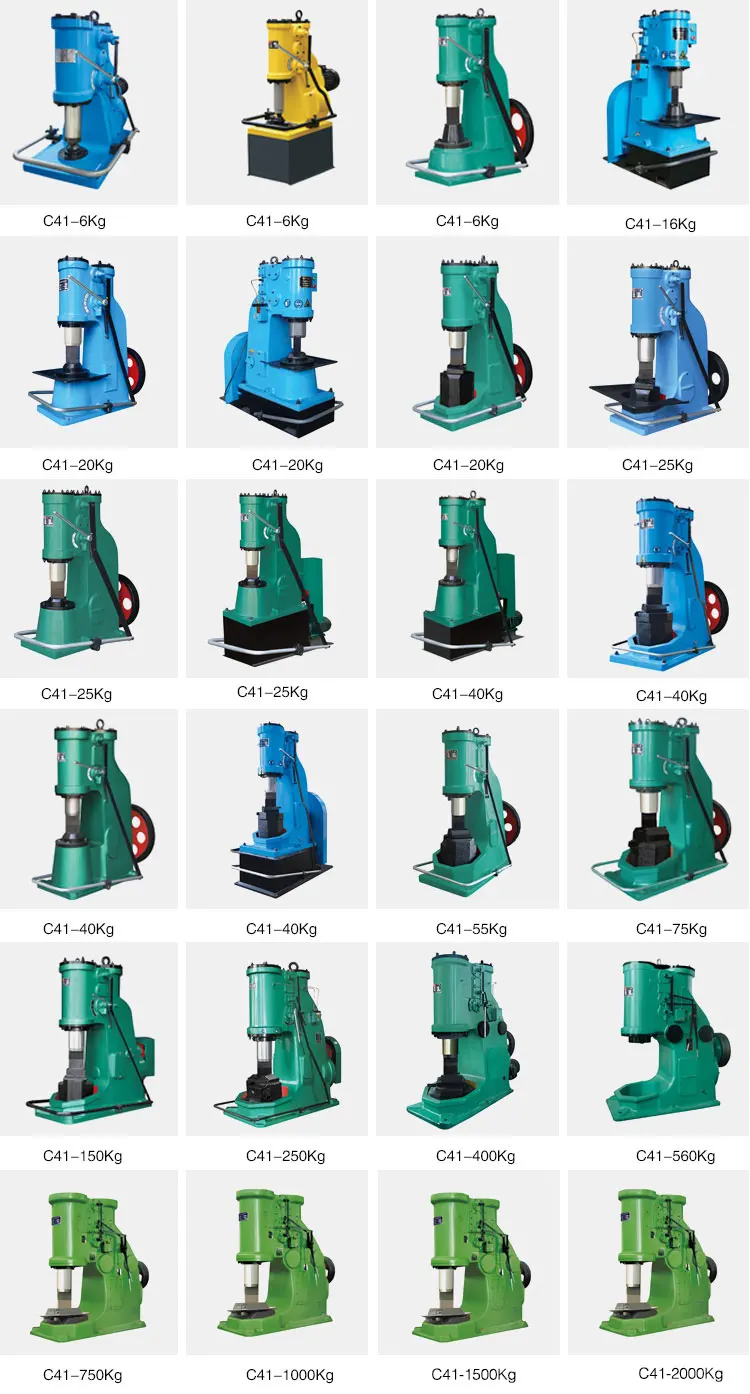

Different types air hammer for your choose Contact us
Technical parameter of air hammer Contact us
| Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-55KG |
| Weight of failling parts(KG) | 16 | 20 | 25 | 40 | 55 |
| Max.hit energy(KJ) | 0.18 | 0.22 | 0.27 | 0.53 | 0.7 |
| Height of working area(mm) | 180 | 200 | 240 | 245 | 265 |
| Hit number(min) | 258 | 255 | 250 | 245 | 230 |
| Dimension of top and bottom die surface(LxW mm) | 70x40 | 90x50 | 100x50 | 120x50 | 120x55 |
| Max. square steel can be forged(Diameter mm) | 20x20 | 30x30 | 40x40 | 52x52 | 52x52 |
| Max. round steel can be forged(Diameter mm) | Φ 22 | Φ35 | Φ 45 | Φ 68 | Φ 68 |
| Rate power(kw) | 1.5 | 2.2 | 3/2.2 | 4 | 5.5 |
| Speed of motor(r.p.m) | 1440 | 1440 | 1440 | 1440 | 1440 |
| Total weight(kg) | 240 | 380 | 560 | 880 | 1700 |
| Overall dimensions(L x W x H mm) | 660x420x970 | 820x460x1110 | 980x510x1200 | 1080x600x1430 | 1320x670x1620 |
+
| C41-75KG | C41-150KG | C41-250KG | C41-400KG | C41-560KG | C41-750KG | C41-1000KG |
| 75 | 150 | 250 | 400 | 560 | 750 | 1000 |
| 1 | 2.2 | 5.6 | 9.5 | 13.6 | 19 | 27 |
| 300 | 370 | 450 | 530 | 600 | 670 | 800 |
| 210 | 180 | 150 | 120 | 115 | 105 | 95 |
| 145x65 | 200x85 | 220x100 | 240x120 | 260x130 | 280x140 | 300x150 |
| 65x65 | 130x130 | 145x145 | 220x220 | 270x270 | 270x270 | 290x290 |
| Φ 85 | Φ 145 | Φ 175 | Φ 240 | Φ 280 | Φ 300 | Φ 320 |
| 7.5 | 15 | 22 | 37 | 45 | 55 | 75 |
| 1440 | 1470 | 1470 | 1480 | 980 | 980 | 980 |
| 2800 | 5060 | 8200 | 12800 | 16520 | 26000 | 32840 |
| 1400x760x1950 | 2080x1240x2350 | 2875x1405x2570 | 2785x1400x2885 | 3464x1500x3157 | 2095x1370x3175 | 770x1500x4125 |

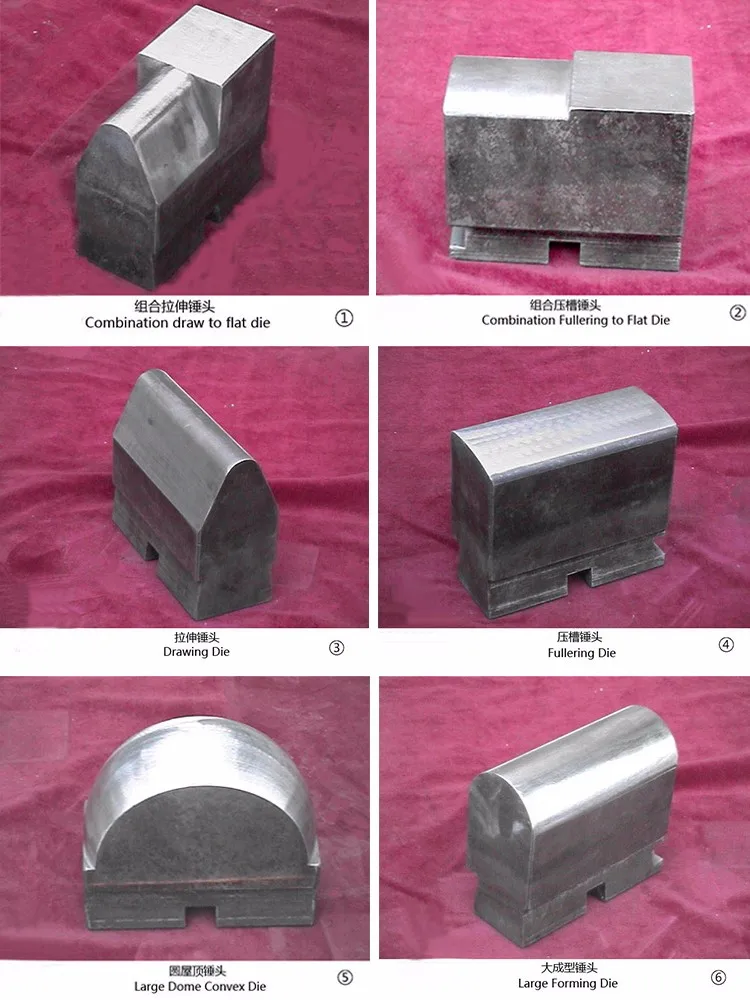

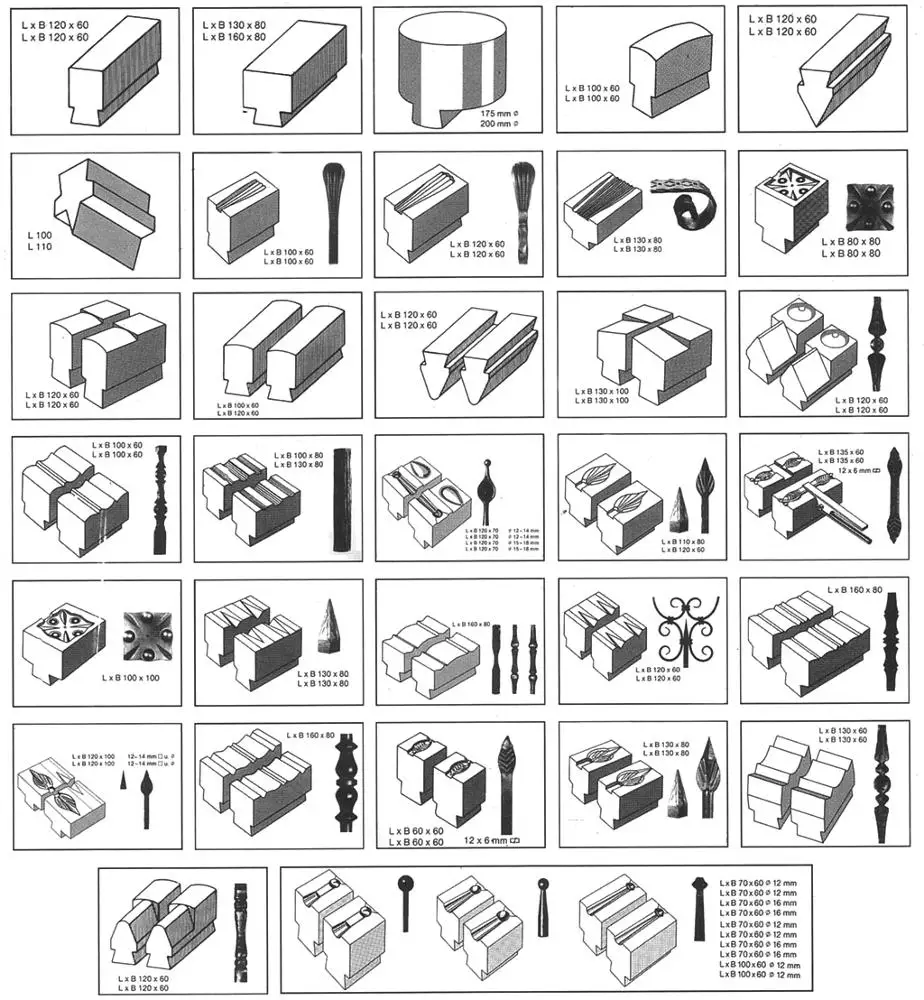

Different kinds air hammer mold for your reference Contact us

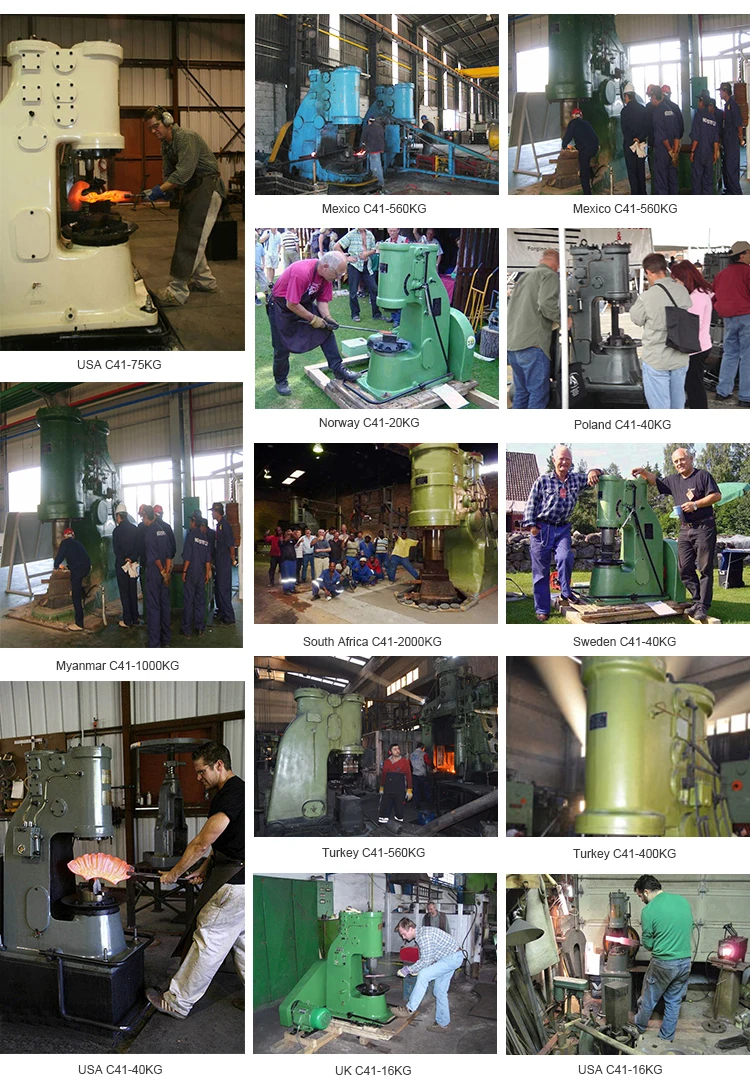

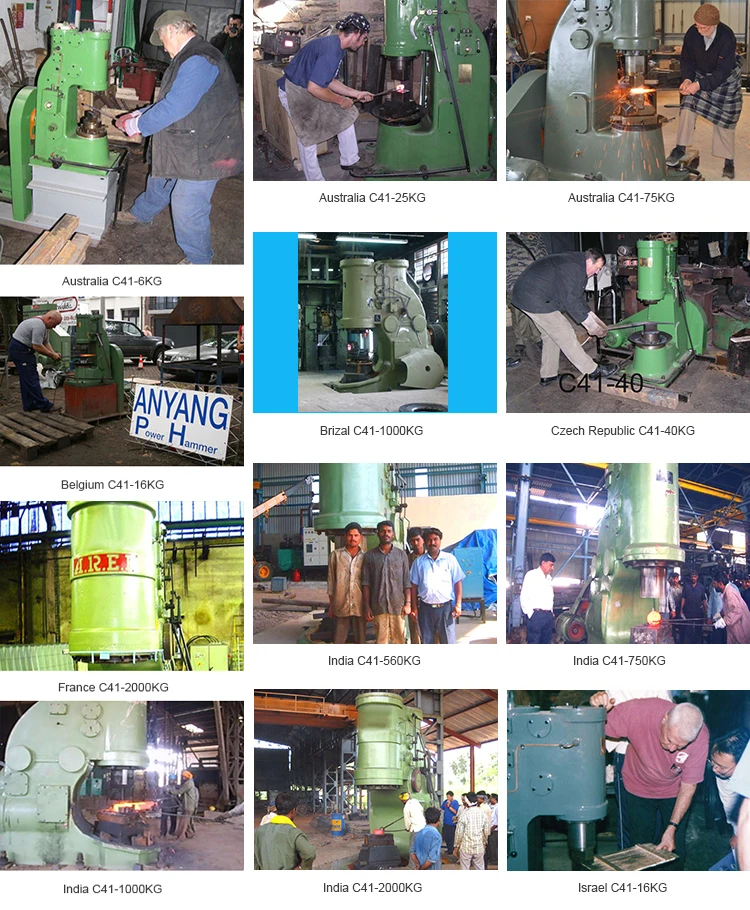

Success Case

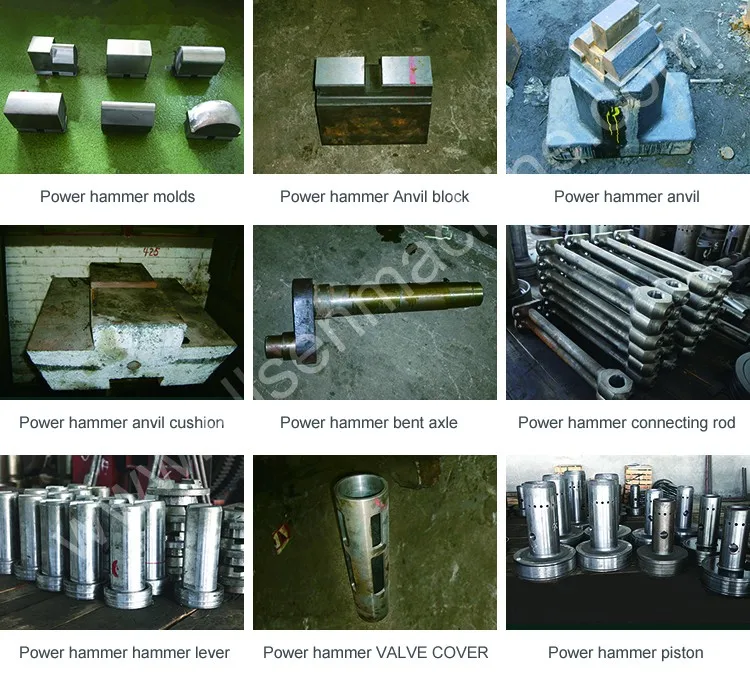

Product Accessories

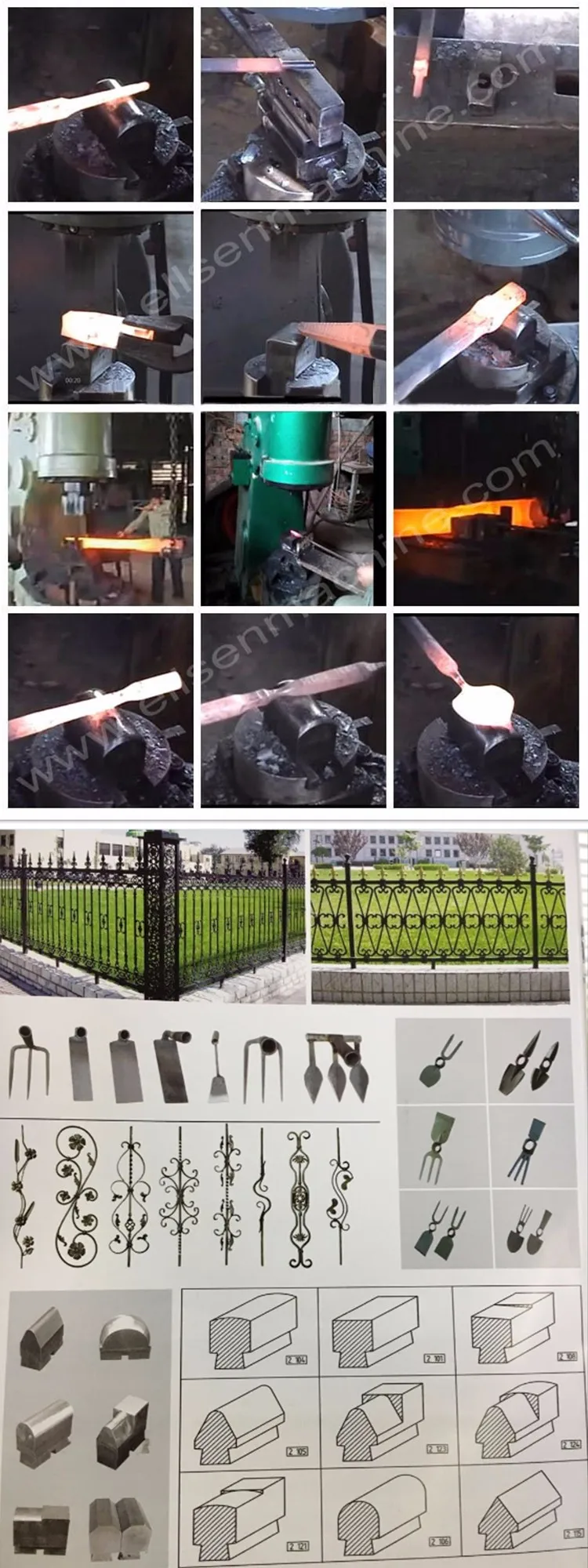

Finished Products
Product Description
Brief introduction Contact us
+
| General description | Air forging hammer also called wrought iron blacksmith power hammer.Ellsen power hammer from 16kg to 150kg are widely used by blacksmith for the art forging;from 150kg to 2000kg are widely used in the industrial forging. Pneumatic forging hammer/power hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies. |
| Main feature | 1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with itself-contained cylinder,require no ancillary power raising plant.
|

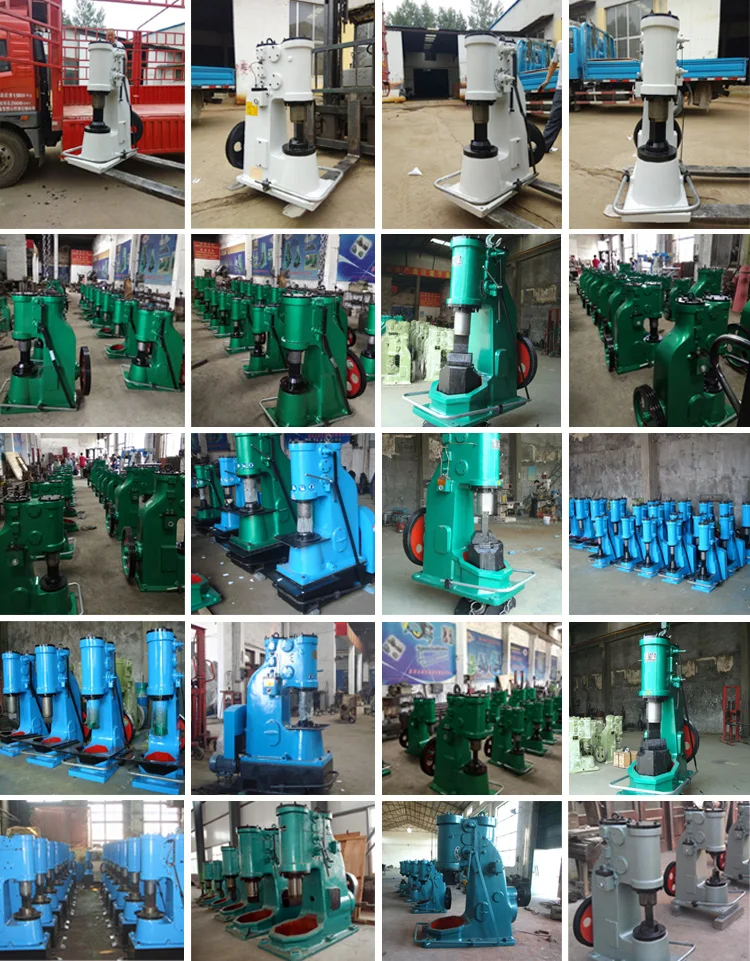

Factory show Contact us
Related Products

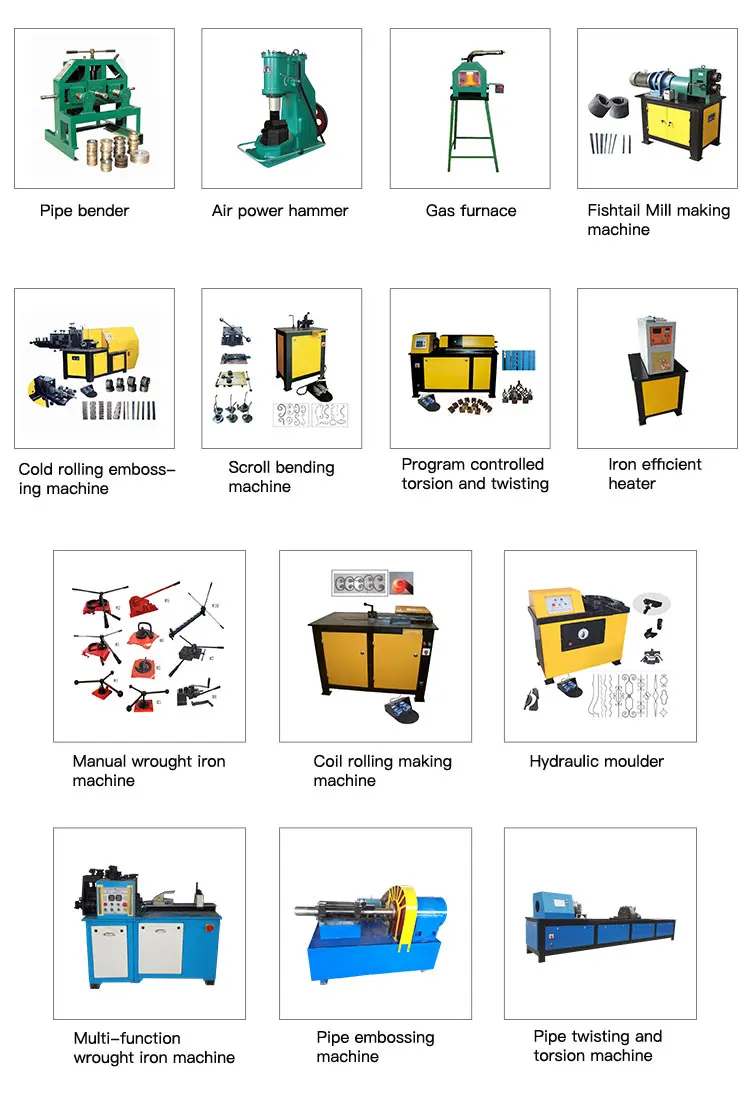

More kinds wrought iron machine for your reference Contact us
Any products you are interested in ,click here: Send inquiry
Contact Us
+
| Zhengzhou Ellsen Machinery Equipment Co.,Ltd. | |
| Telphone | 0086 371 55638389 |
| Mobile phone | 0086 13526898725 |
| IM tools | Skype: ellsen06 Whatsapp/Wechat/Viber:008613526898725 |
| Website | www.ellsenmachine.com www.ellsenmachine.com.cn |
