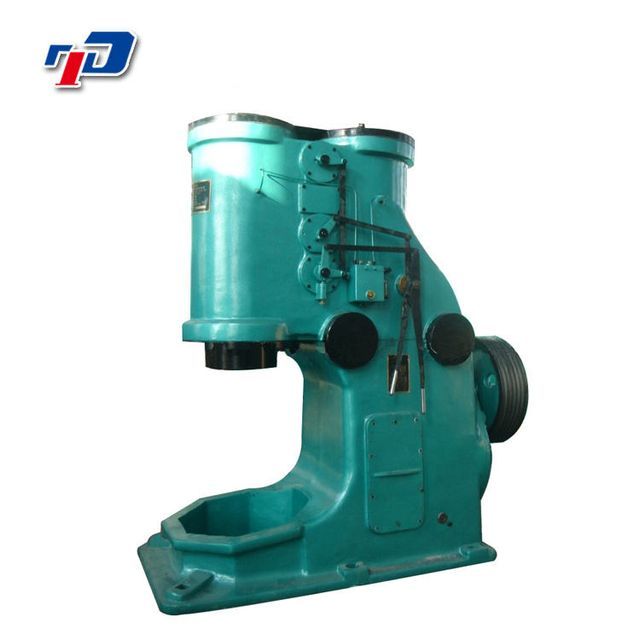

Factory direct sale forging hammer machine C41 series blacksmith power forging hammer air hammer
-
Supplier: Zaozhuang City Tengdong Machine Co., Ltd. -
Region: Shandong, China -
Contact: Mr Teng dong -
Price: $1850.00 / 1 - 2 sets
$1800.00 / >=3 sets -
Min. Order: 1 set
Product details
| Warranty: | 12 months | Mechanical test report: | if |
| After-sales service provided: | online support | Weight (kg): | 240 |
| color: | green | Dimensions (L*W*H): | 1600*950*1950mm |
| weight: | 250-2500kg | Health status: | new |
| Main selling points: | competitive price | Origin: | Shandong China |
| Core components: | engine | Video shipment inspection: | if |
| Marketing Type: | New Products 2020 | Applicable industries: | Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining |
| Core component warranty: | 1 year | brand: | Tengdong |
| usage: | metal rod | Type of machine: | air hammer |
| Showroom location: | not any | type: | C41 blacksmith electric hammer |
| Certification: | ISO9001 | Name: | pneumatic forging hammer |
| payment terms: | wire transfer | Voltage: | 220V/380V/440V |
| Motor speed: | 1440r.pm | strength: | 5.5kw |
Product Description
Specification
Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-55KG |
Failure piece weight (KG) | 16 | 20 | 25 | 40 | 55 |
Maximum strike energy (KJ) | 0.18 | 0.22 | 0.27 | 0.53 | 0.7 |
Working area height(mm) | 180 | 200 | 240 | 245 | 265 |
Number of hits (min) | 258 | 255 | 250 | 245 | 230 |
| Upper and lower die surface size (length x width mm) | 70x40 | 90x50 | 100x50 | 120x50 | 120x55 |
maximum. Square steel can be forged (diameter mm) | 20x20 | 30x30 | 40x40 | 52x52 | 52x52 |
maximum. Forgeable round steel (diameter mm) | twenty two | 35 | 45 | 68 | 68 |
Rated power (kw) | 1.5 | 2.2 | 3/2.2 | 4 | 5.5 |
Motor speed(rpm) | 1440 | 1440 | 1440 | 1440 | 1440 |
Total weight(kg) | 240 | 380 | 560 | 880 | 1700 |
| Dimensions (L x W x H mm) | 660x420x970 | 820x460x1110 | 980x510x1200 | 1080x600x1430 | 1320x670x1620 |
